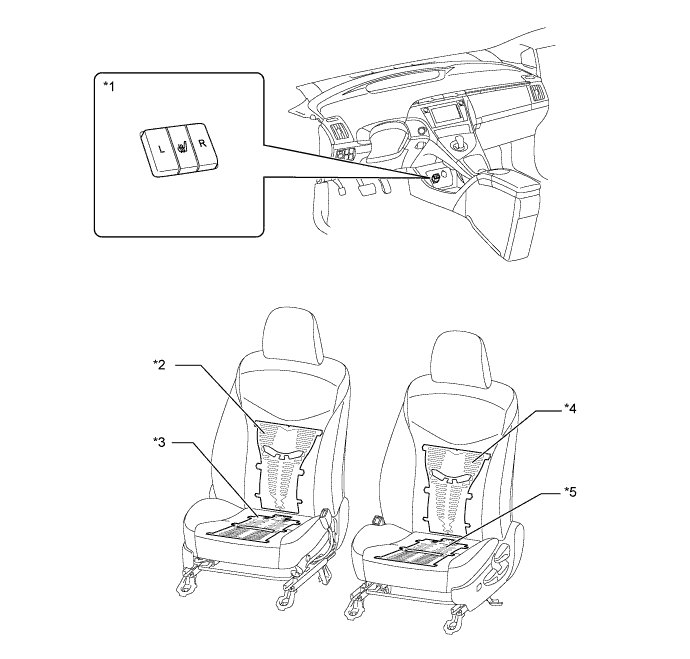

SEAT HEATER SYSTEM PARTS LOCATION

A01J80DE01
Text in Illustration
*1 Seat Heater Switch *2 Seat Back Heater (Front Seat RH)
*3 Seat Cushion Heater (Front Seat RH) *4 Seat Back Heater (Front Seat LH)
*5 Seat Cushion Heater (Front Seat LH) - -
