AUDIO AND VISUAL SYSTEM PARTS LOCATION

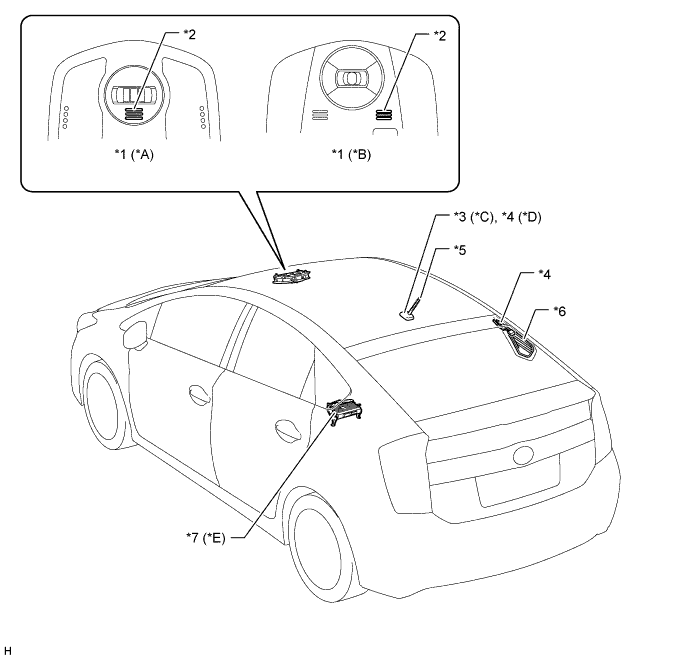

| *A | Models without Sliding Roof System | *B | Models with Sliding Roof System |
| *C | Models with HDD Navigation System for Europe or Australia | *D | Except Models with HDD Navigation System for Europe or Australia |
| *E | Models with 8-speaker System | - | - |
| *1 | Map Light Assembly | *2 | Telephone Microphone Assembly |
| *3 | Amplifier Antenna Assembly - Digital Audio Broadcasting Antenna |
*4 | Amplifier Antenna Assembly |
| *5 | Roof Antenna Pole Sub-assembly - AM - FM |
*6 | Window Glass Antenna - FM-sub |
| *7 | Stereo Component Amplifier Assembly | - | - |

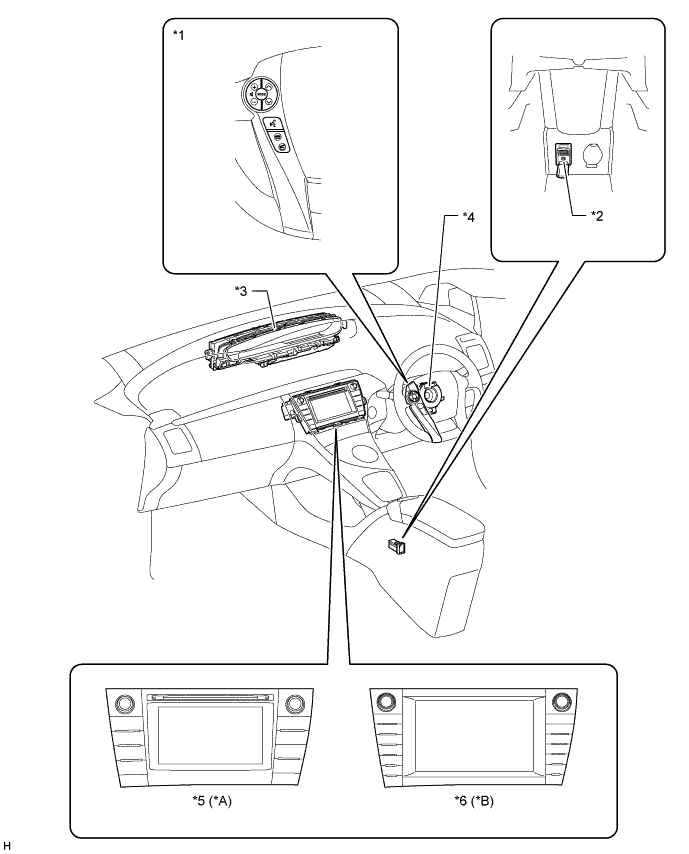

| *A | Models with Touch Screen System or Display Audio System | *B | Models with HDD Navigation System |
| *1 | Steering Pad Switch Assembly - Volume - Seek - Mode - Voice (Models with Voice Recognition System) - Telephone |
*2 | No. 1 Stereo Jack Adapter Assembly |
| *3 | Combination Meter Assembly | *4 | Spiral Cable with Sensor Sub-assembly |
| *5 | Radio and Display Receiver Assembly | *6 | Navigation Receiver Assembly |

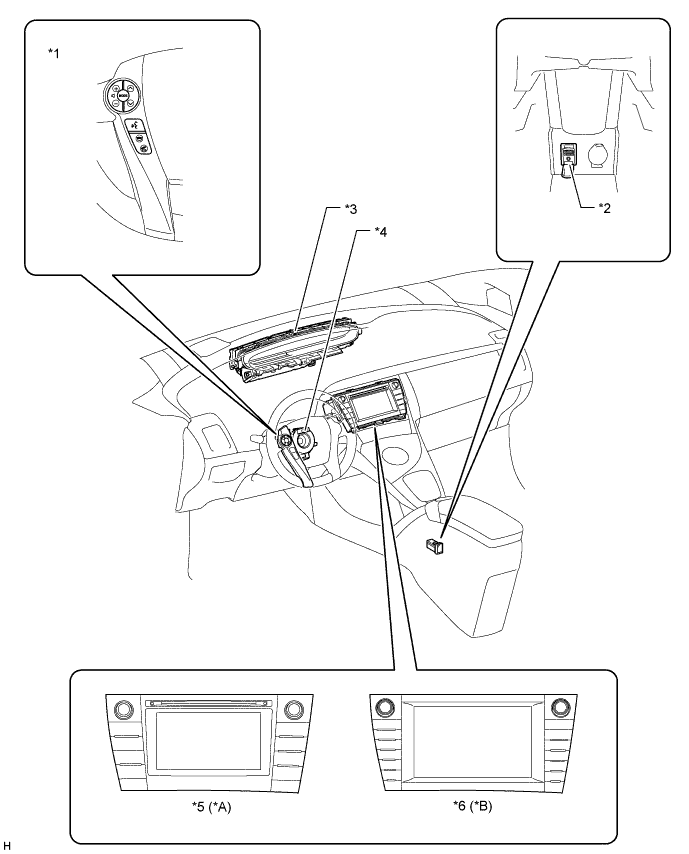

| *A | Models with Touch Screen System or Display Audio System | *B | Models with HDD Navigation System |
| *1 | Steering Pad Switch Assembly - Volume - Seek - Mode - Voice (Models with Voice Recognition System) - Telephone |
*2 | No. 1 Stereo Jack Adapter Assembly |
| *3 | Combination Meter Assembly | *4 | Spiral Cable with Sensor Sub-assembly |
| *5 | Radio and Display Receiver Assembly | *6 | Navigation Receiver Assembly |
