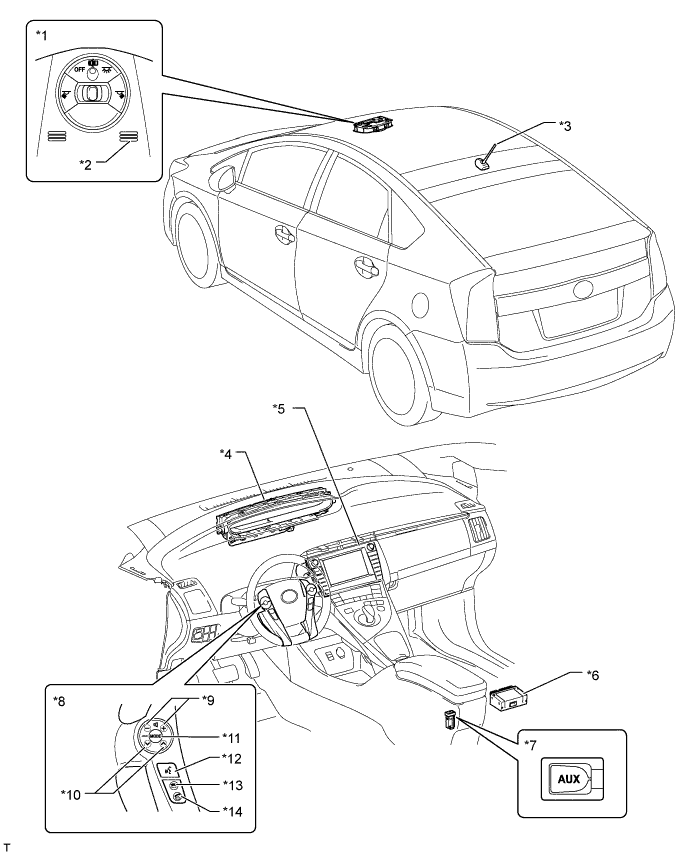

AUDIO AND VISUAL SYSTEM PARTS LOCATION
| *1 | Map Light Assembly | *2 | Microphone Assembly |
| *3 | Roof Antenna Pole Sub-assembly | *4 | Combination Meter Assembly |
| *5 | Audio Head Unit | *6 | Stereo Component Amplifier Assembly |
| *7 | Stereo Jack Adapter Assembly | *8 | Steering Pad Switch Assembly |
| *9 | Volume Switch | *10 | Seek Switch |
| *11 | Mode Switch | *12 | Voice Switch |
| *13 | ON Hook Switch | *14 | OFF Hook Switch |
