AUDIO AND VISUAL SYSTEM GENERAL


  1. OUTLINE


    1. Audio Head Unit


      1. 4 types of radio receiver assemblies and 3 types of navigation receiver assemblies are available for the audio head unit. The navigation receiver assemblies are available as a Hard Disc Drive (HDD) navigation receiver assembly or Digital Versatile Disc (DVD) navigation receiver assembly.

      2. The speaker systems are available with 6 speakers or 8 speakers.

      3. An audio head unit that supports Digital Audio Broadcast (DAB) is also available.

    2. Bluetooth Audio System


      1. The Bluetooth audio system enables the users to listen to the music stored in a Bluetooth compliant portable audio device (Bluetooth audio player) through a Bluetooth connection.

      2. The Bluetooth audio system can operate a Bluetooth audio player through the audio head unit.

        A01J8AL "Bluetooth" is a trademark owned by Bluetooth SIG,Inc.

    3. Bluetooth Hands-free System


      1. The Bluetooth hands-free system enables drivers to place or receive phone calls using a cellular phone without releasing their hands from the steering wheel.

      2. For safety, some functions of the Bluetooth hands-free system may not be selectable while the vehicle is being driven.

    4. Stereo Jack Adapter Assembly


      1. A stereo jack adapter assembly is used by the audio system as an input terminal for portable audio devices.

    5. Steering Pad Switch


      1. Touch tracer display that shows the steering pad switch operations on the combination meter has been provided. This helps reduce the movement of the driver's line of vision, allowing the driver to concentrate on the road. For details on the touch tracer display, refer to Meter/Gauge System.

  2. SPECIFICATION


    1. Audio Head Unit

      Audio Head Unit Design Specification
      Radio Receiver Assembly A01J83U

      • AM/FM Tuner

      • DAB Ready

      • CD Player: Compatible with MP3 and Windows Media Audio (WMA) Files

      • Unit Manufacturer: FUJITSU-TEN

      • 6-speaker System (Panasonic)

      • Stereo Jack Adapter
      A01J86K

      • AM/FM Tuner

      • DAB Ready

      • CD Player: Compatible with MP3 and Windows Media Audio (WMA) Files

      • Bluetooth Hands-free System

      • Unit Manufacturer: FUJITSU-TEN

      • 8-speaker System (FUJITSU-TEN)

      • Stereo Component Amplifier Assembly (FUJITSU-TEN

      • Stereo Jack Adapter
      A01J8CN

      • AM/FM Tuner

      • DAB Ready

      • In-dash 6-CD Changer: Compatible with MP3 and Windows Media Audio (WMA) Files

      • Bluetooth Hands-free System

      • Unit Manufacturer: FUJITSU-TEN

      • 8-speaker System (FUJITSU-TEN)

      • Stereo Component Amplifier Assembly (FUJITSU-TEN)

      • Stereo Jack Adapter
      A01J7SD

      • AM/FM Tuner

      • In-dash 6-CD Changer: Compatible with MP3 and Windows Media Audio (WMA) Files

      • Unit Manufacturer: Panasonic

      • 8-speaker System (FUJITSU-TEN)

      • Stereo Jack Adapter
      HDD Navigation Receiver Assembly A01J7PG

      • 7.0-inch Wide LCD

      • AM/FM Tuner

      • DAB Ready

      • CD Player: Compatible with MP3 and Windows Media Audio (WMA) Files

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Unit Manufacturer: AISIN AW

      • 8-speaker System (FUJITSU-TEN)

      • Stereo Jack Adapter
      DVD Navigation Receiver Assembly A01J801

      • 7.0-inch Wide LCD

      • AM/FM Tuner

      • In-dash 4-CD Changer: Compatible with MP3 and Windows Media Audio (WMA) Files

      • Bluetooth Hands-free System

      • Unit Manufacturer: FUJITSU-TEN

      • 8-speaker System (FUJITSU-TEN)

      • Stereo Jack Adapter
      A01J7PO

      • 7.0-inch Wide LCD

      • AM/FM Tuner

      • CD Player: Compatible with MP3 and Windows Media Audio (WMA) Files

      • Bluetooth Hands-free System

      • Unit Manufacturer: DENSO

      • 8-speaker System (FUJITSU-TEN)

      • Stereo Component Amplifier Assembly (FUJITSU-TEN)

      • Stereo Jack Adapter

    2. 6-speaker System

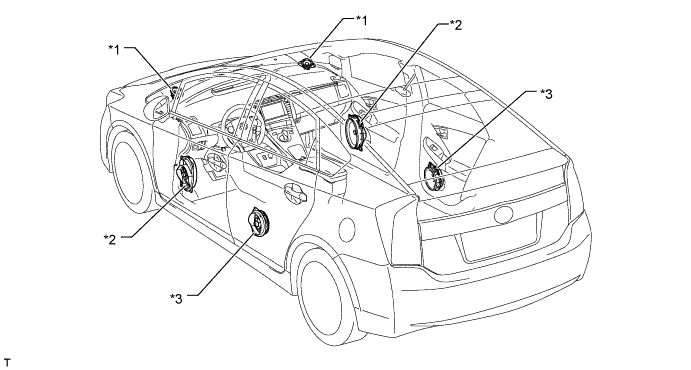

      A01J86NE01
      Location Speaker Type Quantity Size Impedance Rated Input Power
      *1 Front Squawker 2 65 mm (2.6 in.) 4 Ω 17.5 W
      *2 Front Woofer 2 150 mm x 230 mm (6.0 in. x 9.0 in.) 4 Ω 20 W
      *3 Rear Speaker 2 160 mm (6.3 in.) 4 Ω 20 W

    3. 8-speaker System

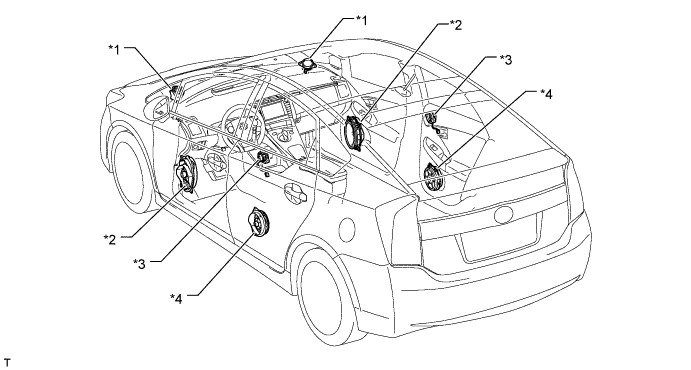

      A01J7PUE01
      Location Speaker Type Quantity Size Impedance Rated Input Power
      *1 Front Squawker 2 50 mm (2.0 in.) 8 Ω 10 W
      *2 Front Woofer 2 150 mm x 230 mm (6.0 in. x 9.0 in.) 2 Ω 30 W
      *3 Rear Squawker 2 50 mm (2.0 in.) 8 Ω 10 W
      *4 Rear Speaker 2 160 mm (6.3 in.) 4 Ω 20 W

    4. Bluetooth Hands-free System


      1. The specifications for the Bluetooth hands-free system vary with the audio head unit that is used. The details are as follows:

        Function Radio Receiver Assembly DVD Navigation Receiver Assembly HDD Navigation Receiver Assembly
        Call with Bluetooth Phone By Dial - X X
        By Phonebook X (20 Cases) X (1000 Cases) X (1000 Cases)
        By Call History Dialed Number X (5 Cases) X (5 Cases) X (10 Cases)
        Received Call X (5 Cases) X (5 Cases) X (10 Cases)
        Missed Call - - X (10 Cases)
        All Call History - - X
        By Speed Dial* X (6 Cases) X (17 Cases) X (18 Cases)
        By Voice Recognition* Dialing by Name X X X
        Dialing by phone number X X X
        Dialing by Call History X X X
        By Point Of Interest (POI) Call - X X
        Receive with Bluetooth Phone/ Talk on Bluetooth Phone Receiving Call* Received Manually X X X
        Received Automatically - X -
        Received Refusal X X X
        Interrupt Call*1 - - X
        Tone Sending By Dial - X X
        By Registered Number - - X
        By Speed Tone - X (6 Cases) -
        Recognition / Connection Registering Bluetooth Phone

        X

        (6 Bluetooth Phones)

        X

        (6 Bluetooth Phones)

        X

        (4 Bluetooth Phones)
        Connecting Bluetooth Phone Received Automatically X X X
        Connected Manually X X X
        Setting Setting Automatic Connection - X X

        • X : Available

        • - : Not Available

        Tech Tips

        *: Can be operated while driving

  3. MAIN FEATURES


    1. HDD Navigation Receiver Assembly


      1. A sound library function is used. This function stores the music of the CD that is inserted in the CD player onto the HDD. Data for the stored music, such as the album title and artist name can be acquired from the "Gracenote CD DataBase (CDDB)". Moreover, the album title and artist name can be edited by the user.

        A01J84K "Gracenote" and "CDDB" is a trademark owned by Gracenote.

      2. A function that automatically updates the FM station list to used.

  4. PRECAUTION


    1. Some of the functions of a system that uses a Bluetooth connection may not operate, depending on the Bluetooth specification or profile of the Bluetooth phone or Bluetooth audio player that is being used. The Bluetooth specifications and profiles required for the operation are as follows:

    2. The operation of the interrupt call function of the Bluetooth hands-free system may vary with the Bluetooth phone or the telephone company that is used.

      Specification/Profile Item Bluetooth Audio System Bluetooth Hands-free System
      Bluetooth Specification Version 1.1 or higher Required Required
      Version 2.0+EDR or higher Recommended Recommended
      Profile Hands Free Profile (HFP) Version 1.0 or higher Not Available Required
      Hands Free Profile (HFP) Version 1.5 or higher Not Available Recommended
      Object Push Profile (OPP) Version 1.1 or higher Not Available Required
      Advanced Audio Distribution Profile (A2DP)Version 1.0 or higher Required Recommended
      Audio/Video Remote Control Profile (AVRCP)Version 1.0 or higher Required Not Available
      Audio/Video Remote Control Profile (AVRCP)Version 1.3 or higher Recommended Not Available

      Tech Tips

      The operation of the interrupt call function of the Bluetooth hands-free system may vary with the Bluetooth phone or the telephone company that is used.
