BRAKE CONTROL SYSTEM PARTS LOCATION

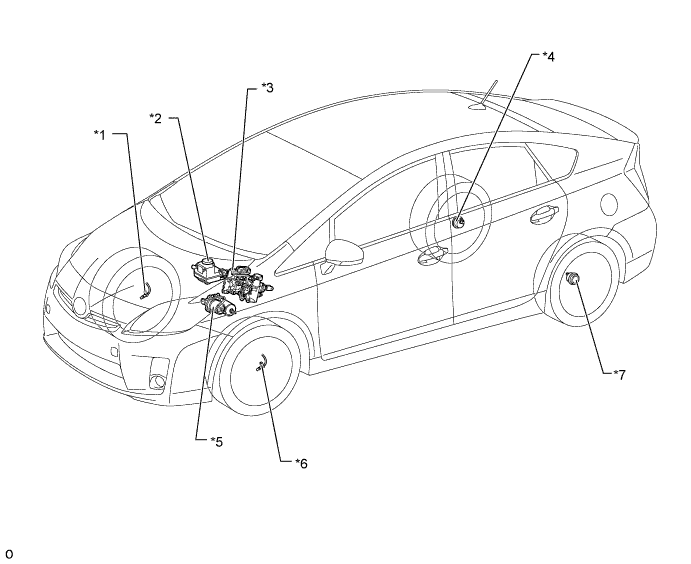

A01J7ROE01
Text in Illustration
*1 Front Speed Sensor RH *2

  • Reservoir Tank


    • Brake Fluid Level Warning Switch
*3

  • W/Master Cylinder Brake Booster Assembly


    • Skid Control ECU

    • Brake Actuator

    • Hydraulic Brake Booster

    • Stroke Simulator

 *4 Rear Speed Sensor RH
*5

  • Brake Booster Pump Assembly


    • Pump Motor

    • Accumulator

 *6 Front Speed Sensor LH
*7 Rear Speed Sensor LH - -

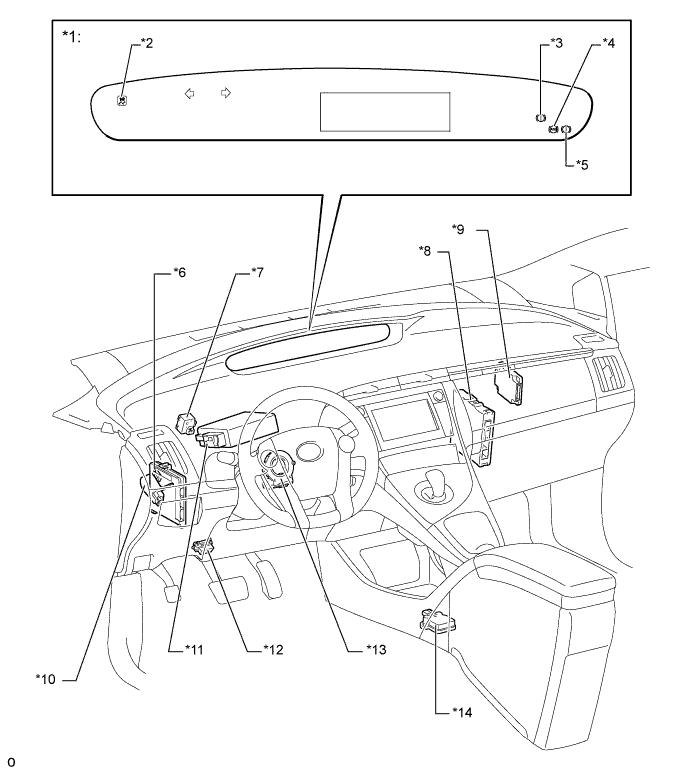

A01J803E03
Text in Illustration
*1 Combination Meter *2 Slip Indicator Light
*3 Brake Warning Light/Red (Malfunction) *4 ABS Warning Light
*5 Brake Warning Light/Yellow (Minor Malfunction) *6

Main Body ECU

(Multiplex Network Body ECU)
*7 Skid Control Buzzer *8 Power Management Control ECU
*9 Driving Support ECU *10 Brake Pedal Stroke Sensor
*11 Power Steering ECU *12 DLC3
*13 Steering Angle Sensor *14 Yaw Rate and Acceleration Sensor
