СИСТЕМА СМАЗКИ ДЕТАЛЬНОЕ ОПИСАНИЕ


  1. CONSTRUCTION


    1. Oil Pump


      1. The trochoidal type oil pump is driven by the crankshaft, and fits compactly inside the oil pan.

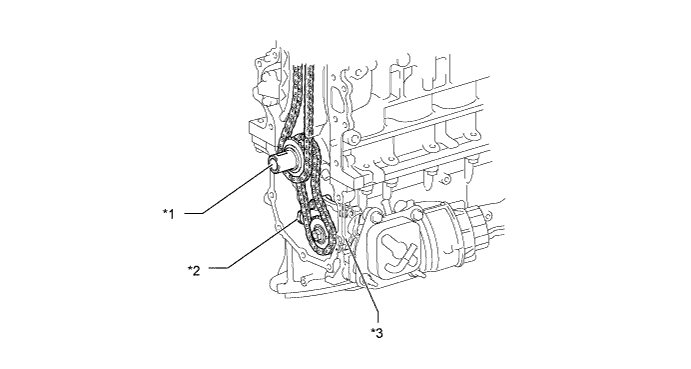

        A0116PDE01
        Text in Illustration
        *1 Crankshaft *2 Relief Valve
        *3 Oil Pump - -

    2. Oil Jet


      1. Oil jet for cooling and lubricating the pistons are provided in the cylinder block sub-assembly.

      2. These Oil jets contain a check valve to prevent oil from being fed when the oil pressure is low. This prevents the overall oil pressure in the engine from dropping.

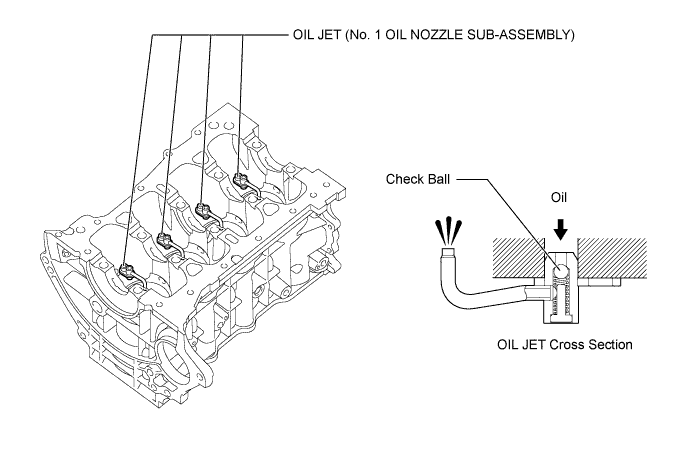

        A0116PQE01

    3. Oil Filter


      1. An oil filter with a replaceable oil filter element is used. The oil filter element uses a high-performance filter paper to improve filtration performance. It is also combustible for environmental protection.

      2. An aluminum alloy oil filter cap assembly is used to extend its life.

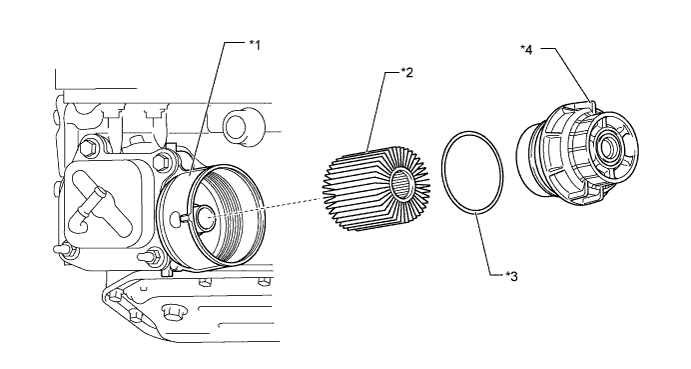

        A0116H6E01
        Text in Illustration
        *1 Oil Filter Bracket Sub-assembly *2 Oil Filter Element
        *3 O-ring *4 Oil Filter Cap Assembly

        Tech Tips

        The engine oil maintenance interval for a model that has an oil filter with a replaceable oil filter element is the same as that for a conventional model.
