СИСТЕМА ОХЛАЖДЕНИЯ ДЕТАЛЬНОЕ ОПИСАНИЕ


  1. CONSTRUCTION

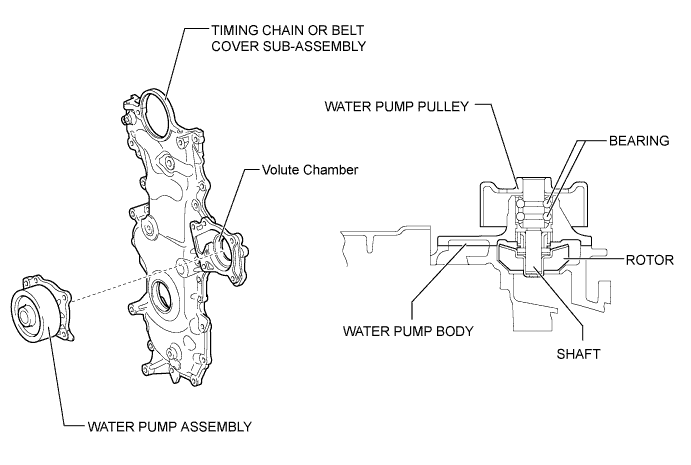

    1. Water Pump Assembly


      1. To reduce weight, an aluminum water pump body is used and the volute chamber is integrated with the timing chain or belt cover sub-assembly.

      2. A stainless rotor is used to achieve corrosion resistance and reliability.

        A0116O4E01

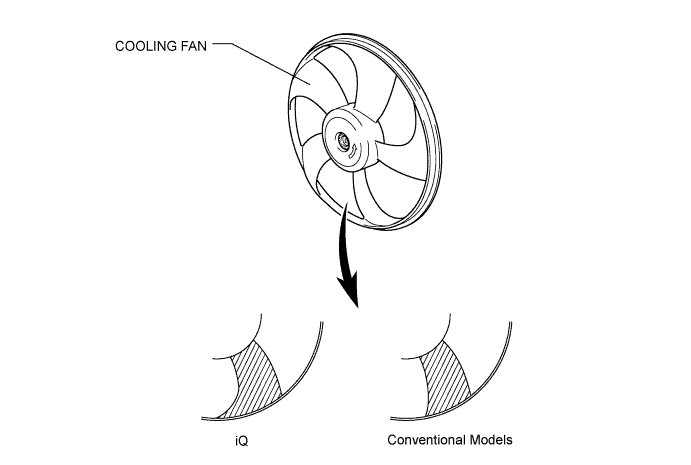

    2. Cooling Fun


      1. A ring type cooling fan is used. In addition, swirl generation is reduced by enlarging the fan feather edges and thus fan noise has been reduced and cooling ability has been optimized.

        A0116IYE01
