СИСТЕМА ЗАПУСКА ОБЩИЕ СВЕДЕНИЯ


  1. OUTLINE


    1. The conventional planetary reduction type starter is used.

    2. A high-output PA78S type is used on all cold area specification models to improve the starting performance.

    3. Cranking hold function is used for models with entry and start system. Once the engine switch is pushed, this control operates the starter until the engine starts.

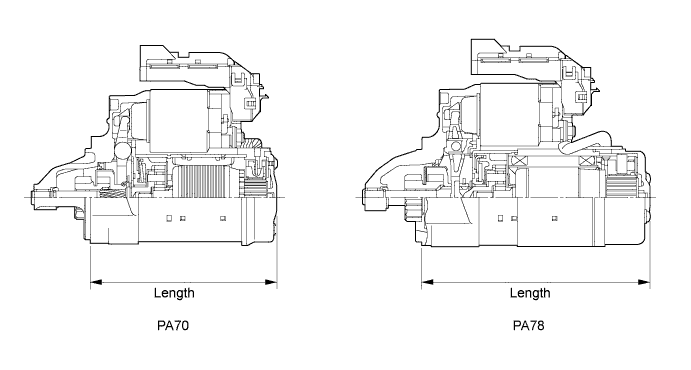

      A0116IZE01

  2. SPECIFICATION

    Type Planetary reduction type (PA70) Planetary reduction type(PA78S*)
    Length mm (in.) 149.1 (5.87) 181.8 (7.16)
    Weight g (lb) 3200 (7.1) 4350 (9.6)
    Rating Voltage V 12 ←
    Rating Output kW 1.6 2.0

    Rotating Direction

    (Viewed from pinion side)

    		 Clockwise ←

    • *: Only for cold area specification models

  3. PRECAUTION


    1. Cranking hold function has following safety features.


      1. While the engine is running normally, the starter does not operate.

      2. Even if the driver keeps pressing the engine switch, the power source control ECU stops the output of the STAR signal when the engine speed becomes higher than 1200 rpm. Thus, the starter operation stops and the power source control ECU energizes the ACC relay.

      3. In case the driver keeps pressing the engine switch and the engine does not start, the power source control ECU stops the output of the STAR signal after approximately 30 seconds have elapsed. Thus, the starter operation stops and the power source control ECU energizes the ACC relay.

      4. In case the power source control ECU cannot detect an engine speed signal while the starter is operating, the ECM will immediately stop the output of the STAR signal. Thus, the starter operation stops and the power source control ECU energizes the ACC relay.
