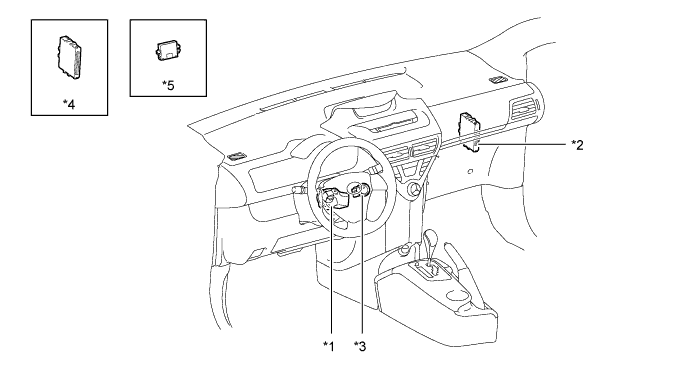

STEERING LOCK SYSTEM PARTS LOCATION

A0116HFE01
Text in Illustration
*1

Steering Lock Actuator Assembly


  • Lock/Unlock Motor

  • Lock/Unlock Position Sensor

  • Steering Lock ECU

 *2

Power Management Control ECU

(Models with 1KR-FE engine)

Power Source Control ECU

(Models with 1ND-TV engine)
*3 Engine Switch *4 Certification ECU (Smart Key ECU Assembly)
*5 Immobiliser Code ECU - -
