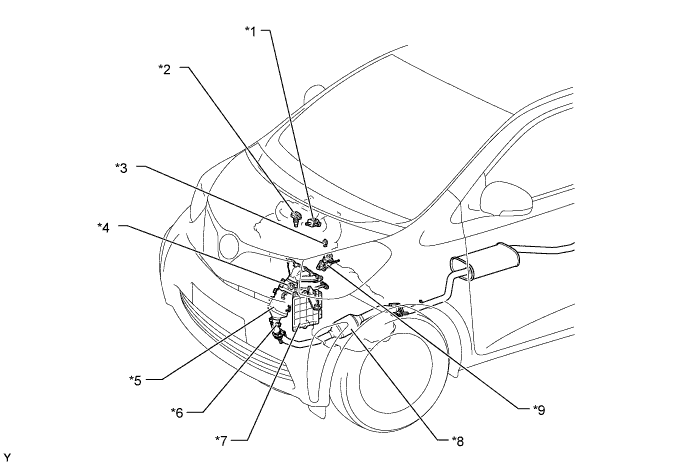

EMISSION CONTROL SYSTEM PARTS LOCATION

A0116REE01
Text in Illustration
*1

Purge VSV

(Duty Vacuum Switching Valve)

 *2 E.F.I. Vacuum Sensor Assembly
*3

PCV Valve

(Ventilation Valve Sub-assembly)

 *4 Air fuel Ratio Sensor
*5

  • Exhaust Manifold


    • TWC

 *6 Oxygen Sensor
*7 ECM *8

  • Front Exhaust Pipe Assembly


    • TWC
*9 EGR Valve Assembly - -
