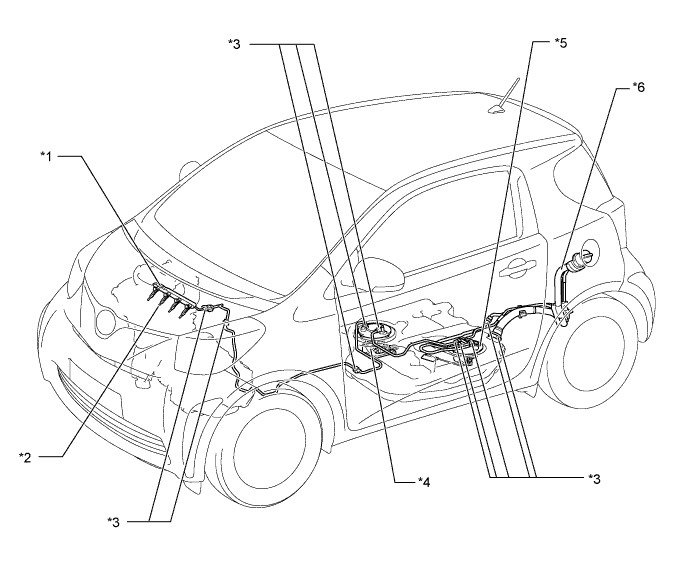

FUEL SYSTEM PARTS LOCATION

A0116VCE01
*1 Fuel Delivery Pipe Sub-assembly *2 Fuel Injector Assembly
*3 Quick Connector *4

  • Main Module


    • Fuel Pump

    • Fuel Filter

    • Jet Pump

    • Fuel Pump Filter

    • Cut Off Valve

    • Fuel Pressure Regulator Assembly
*5

  • Sub-module


    • Fuel Sender Gauge

    • Canister

    • Suction Tube

    • Cut Off Valve

 *6 Fuel Tank Filler Pipe Sub-assembly
