SFI SYSTEM PARTS LOCATION

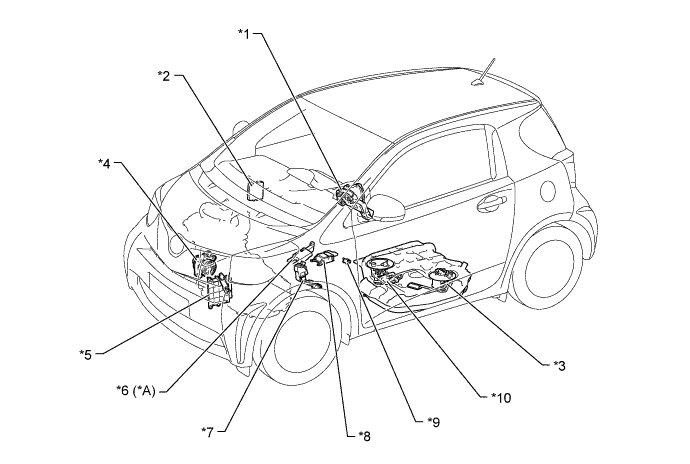

A0116DSE01
Text in Illustration
*A Models with Air Conditioning System - -
*1 Combination Meter Assembly *2 Power Management Control ECU
*3

  • Sub Module


    • Fuel Sender Gauge Assembly

    • Canister

 *4 Generator Assembly
*5 ECM *6 Air Conditioning Amplifier Assembly
*7 Accelerator Pedal Sensor Assembly *8 Airbag Sensor Assembly
*9 DLC3 *10

  • Main Module


    • Fuel Pump Motor

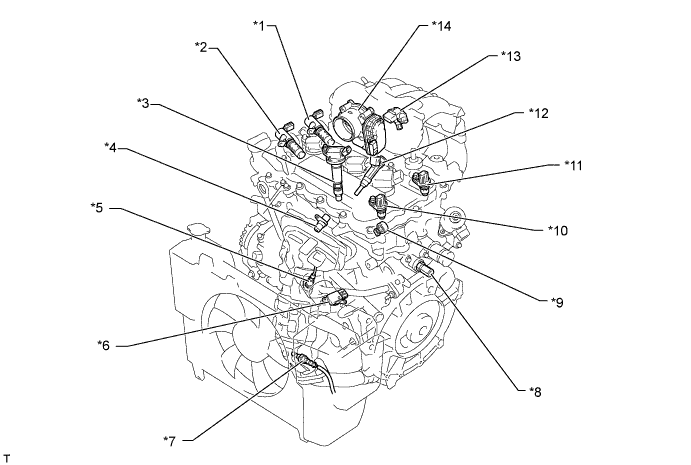

A0116T6E03
Text in Illustration
*1 Intake Camshaft Timing Oil Control Valve *2 Exhaust Camshaft Timing Oil Control Valve
*3 Ignition Coil Assembly *4 Crank Position Sensor
*5 Air Fuel Ratio Sensor *6

  • Mass Air Flow Meter (Intake Mass Air Flow Meter Assembly)


    • Intake Air Temperature Sensor
*7 Oxygen Sensor *8 E.F.I. Engine Coolant Temperature Sensor
*9 Knock Control Sensor *10 Exhaust Cam Position Sensor
*11 Intake Cam Position Sensor *12 Fuel Injector Assembly
*13 E.F.I. Vacuum Sensor Assembly *14

  • Throttle Body Assembly


    • Throttle Control Motor

    • Throttle Position Sensor
