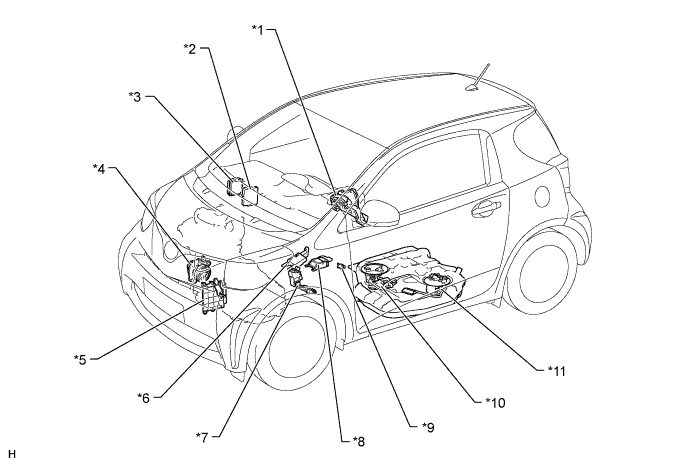

SFI SYSTEM PARTS LOCATION

A0116JWE01
Text in Illustration
*1 Combination Meter Assembly *2 Power Management Control ECU
*3

Engine Stop and Start ECU

(Models with stop and start system)

*4 Generator Assembly
*5 ECM *6 Air Conditioning Amplifier Assembly (Models with air conditioning system)
*7 Accelerator Pedal Sensor Assembly *8 Airbag Sensor Assembly
*9 DLC3 *10
  • Main Module


    • Fuel Pump Motor

*11
  • Sub Module


    • Fuel Sender Gauge Assembly

    • Canister

- -

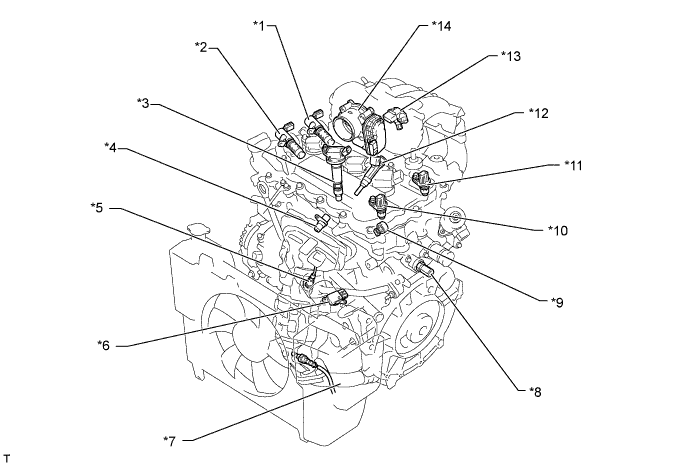

A0116T6E01
Text in Illustration
*1 Intake Camshaft Timing Oil Control Valve *2 Exhaust Camshaft Timing Oil Control Valve
*3 Ignition Coil Assembly *4 Crank Position Sensor
*5 Air Fuel Ratio Sensor *6
  • Mass Air Flow Meter (Intake Mass Air Flow Meter Assembly)


    • Intake Air Temperature Sensor

*7 Oxygen Sensor *8 E.F.I. Engine Coolant Temperature Sensor
*9 Knock Control Sensor *10 Exhaust Cam Position Sensor
*11 Intake Cam Position Sensor *12 Fuel Injector Assembly
*13 E.F.I. Vacuum Sensor Assembly *14
  • Throttle Body Assembly


    • Throttle Control Motor

    • Throttle Position Sensor
