SFI SYSTEM PARTS LOCATION

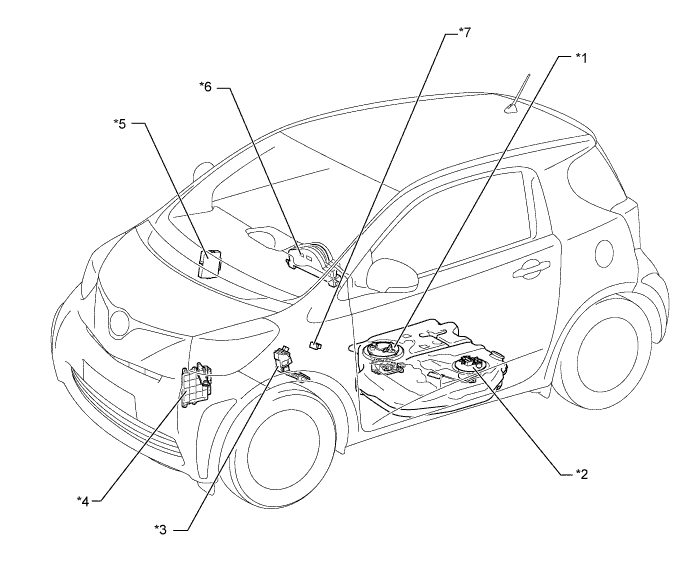

A0116TFE01
Text in Illustration
*1

  • Main Module


    • Fuel Pump Motor

 *2

  • Sub Module


    • Fuel Sender Gauge Assembly

    • Canister
*3 Accelerator Pedal Position Sensor Assembly *4 ECM
*5 Power Management Control ECU *6 Combination Meter Assembly
*7 DLC3 - -

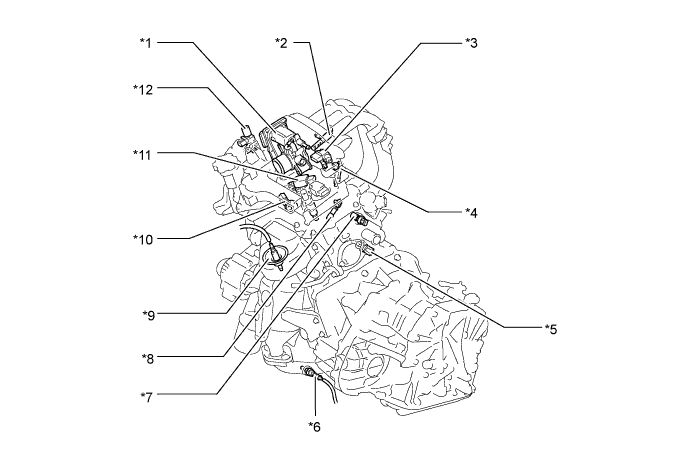

A0116IEE01
Text in Illustration
*1

  • Throttle Body (Throttle with Motor Body Assembly)


    • Throttle Control Motor

    • Throttle Position Sensor

 *2 Camshaft Timing Oil Control Valve Assembly
*3

  • E.F.I. Vacuum Sensor Assembly


    • Intake Air Temperature Sensor

 *4 Fuel Injector Assembly
*5 E.F.I. Engine Coolant Temperature Sensor *6 Heated Oxygen Sensor
*7 Camshaft Position Sensor *8 Crank Position Sensor
*9 Air Fuel Ratio Sensor *10 Knock Control Sensor
*11

Ignition Coil with Igniter

(Ignition Coil No. 1)

 *12

VSV for Engine Mounting

(Vacuum Switching Valve Assembly)

(Only for models with CVT)
