THEFT DETERRENT PARTS LOCATION

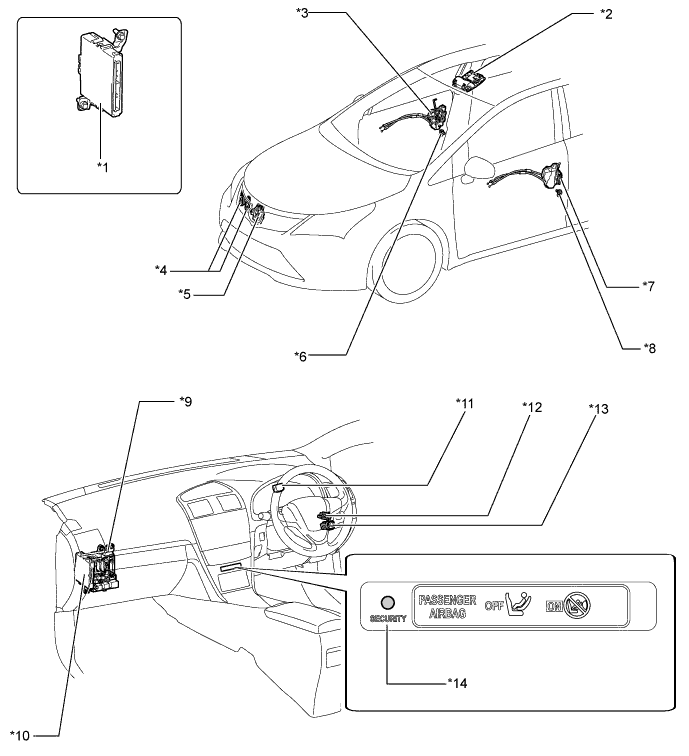

| *1 | Certification ECU*a | *2 | Overhead Console - Intrusion Sensor*b - Intrusion Sensor Cancel Switch*b |
| *3 | Front Door with Motor Lock Assembly RH - Door Lock Motor - Door Lock Position Switch |
*4 | Horn Assembly |
| *5 | Engine Hood Courtesy Switch | *6 | Front Door Courtesy Light Switch Assembly RH |
| *7 | Front Door with Motor Lock Assembly LH - Door Lock Motor - Door Lock Position Switch |
*8 | Front Door Courtesy Light Switch Assembly LH |
| *9 | Main Body ECU (Instrument Panel Junction Block Assembly) | *10 | Power Management Control ECU*a |
| *11 | Turn Signal Flasher Assembly | *12 | Key Unlock Warning Switch*c |
| *13 | Engine Switch*a | *14 | Security Indicator Light |
-
*a: Models with entry and start system
-
*b: Models with intrusion sensor
-
*c: Models without entry and start system

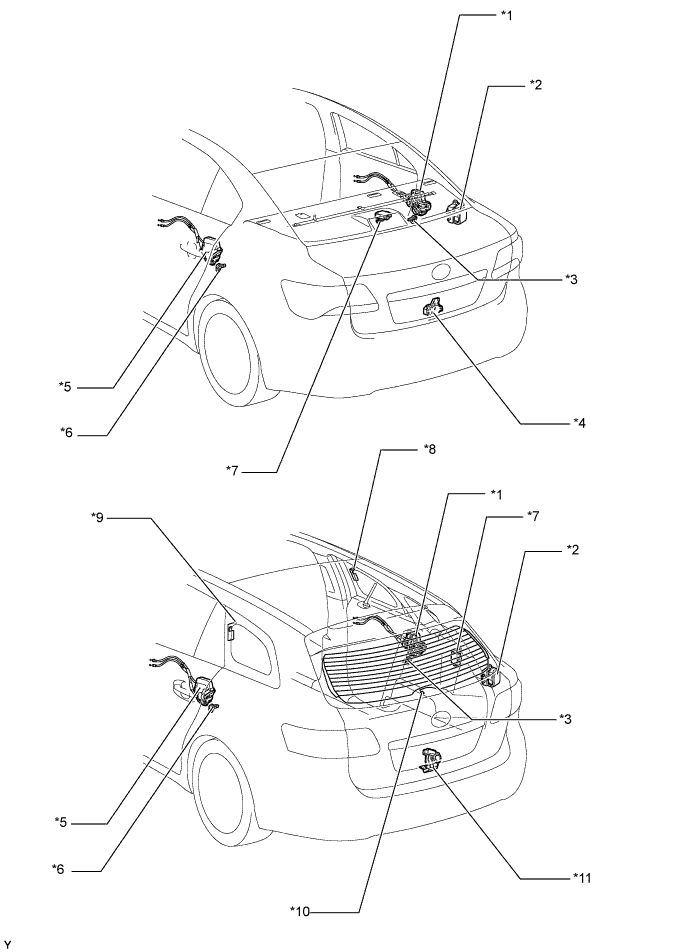

| *1 | Rear Door with Motor Lock Assembly RH - Door Lock Motor - Door Lock Position Switch |
*2 | Theft Warning Siren Assembly (Self-power Siren) |
| *3 | Rear Door Courtesy Light Switch Assembly RH | *4 | Luggage Compartment Door Courtesy Light Switch*a |
| *5 | Rear Door with Motor Lock Assembly LH - Door Lock Motor - Door Lock Position Switch |
*6 | Rear Door Courtesy Light Switch Assembly LH |
| *7 | Door Control Receiver | *8 | Print Pattern Type Glass Breakage Sensor RH*b |
| *9 | Print Pattern Type Glass Breakage Sensor LH*b | *10 | Back Door Glass Print Pattern Type Glass Breakage Sensor*b |
| *11 | Back Door Courtesy Light Switch*c | - | - |
-
*a: Sedan models
-
*b: Models with print pattern type glass breakage sensor
-
*c: Wagon models
