ENTRY AND START SYSTEM PARTS LOCATION

A005WNZE01

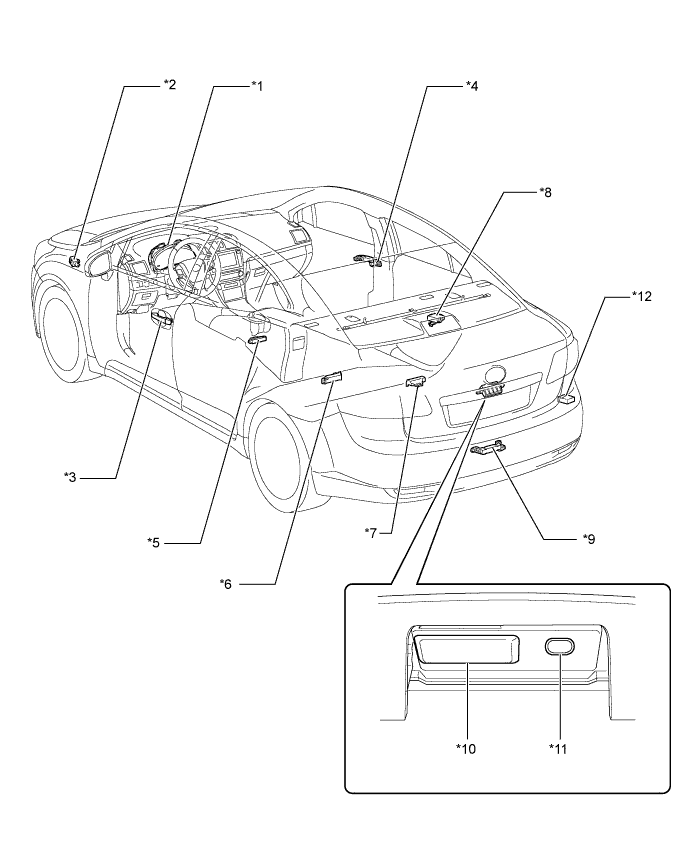

Text in Illustration (Entry Function Configuration on Sedan Models)
*1	Combination Meter Assembly	*2	Wireless Door Lock Buzzer
*3	Front Door Handle Assembly Outside LH - Touch Sensor - Lock Sensor - Door Electrical Key Oscillator	*4	Front Door Handle Assembly Outside RH - Touch Sensor - Lock Sensor - Door Electrical Key Oscillator
*5	Indoor Electrical Key Oscillator	*6	No. 2 Indoor Electrical Key Oscillator
*7	No. 3 Indoor Electrical Key Oscillator	*8	Door Control Receiver
*9	Outside Luggage Compartment Electrical Key Antenna	*10	Luggage Compartment Door Opener Switch
*11	Luggage Compartment Door Lock Switch	*12	No. 2 Door Control Receiver

A005WP9E01

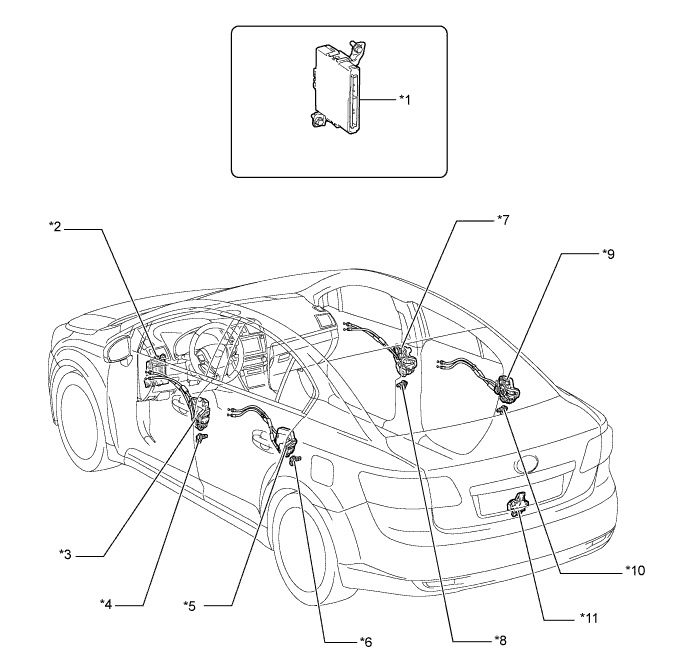

Text in Illustration (Entry Function Configuration on Sedan Models)
*1	Certification ECU	*2	Main Body ECU (Instrument Panel Junction Block Assembly)
*3	Front Door with Motor Lock Assembly LH - Door Lock Motor - Door Lock Position Switch	*4	Front Door Courtesy Light Switch Assembly LH
*5	Rear Door with Motor Lock Assembly LH - Door Lock Motor - Door Lock Position Switch	*6	Rear Door Courtesy Light Switch Assembly LH
*7	Front Door with Motor Lock Assembly RH - Door Lock Motor - Door Lock Position Switch	*8	Front Door Courtesy Light Switch Assembly RH
*9	Rear Door with Motor Lock Assembly RH - Door Lock Motor - Door Lock Position Switch	*10	Rear Door Courtesy Light Switch Assembly RH
*11	Luggage Compartment Door Lock Assembly - Door Lock Motor - Luggage Compartment Door Courtesy Light Switch	-	-

A005X3XE01

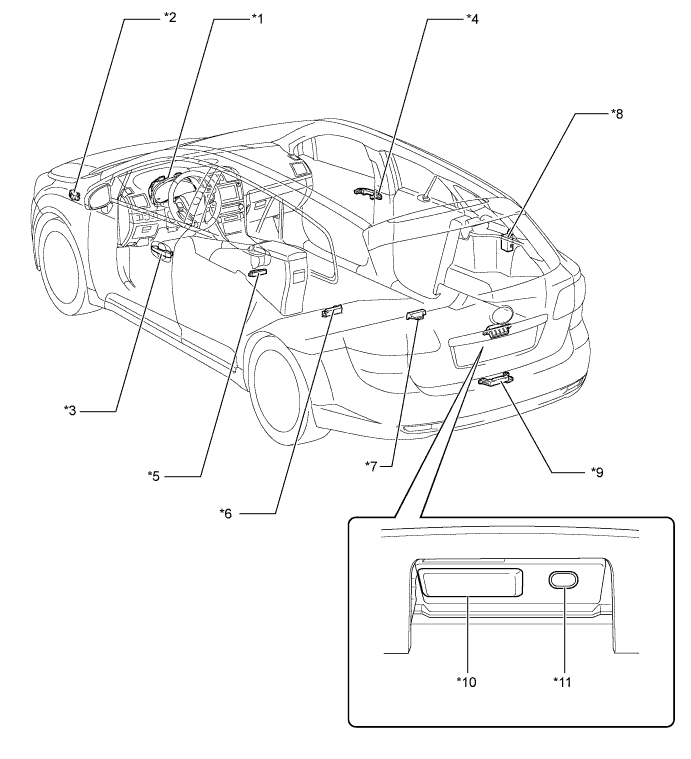

Text in Illustration (Entry Function Configuration on Wagon Models)
*1	Combination Meter Assembly	*2	Wireless Door Lock Buzzer
*3	Front Door Handle Assembly Outside LH - Touch Sensor - Lock Sensor - Door Electrical Key Oscillator	*4	Front Door Handle Assembly Outside RH - Touch Sensor - Lock Sensor - Door Electrical Key Oscillator
*5	Indoor Electrical Key Oscillator	*6	No. 2 Indoor Electrical Key Oscillator
*7	No. 3 Indoor Electrical Key Oscillator	*8	Door Control Receiver
*9	Outside Luggage Compartment Electrical Key Antenna	*10	Luggage Compartment Door Opener Switch
*11	Luggage Compartment Door Lock Switch	-	-

A005X2HE01

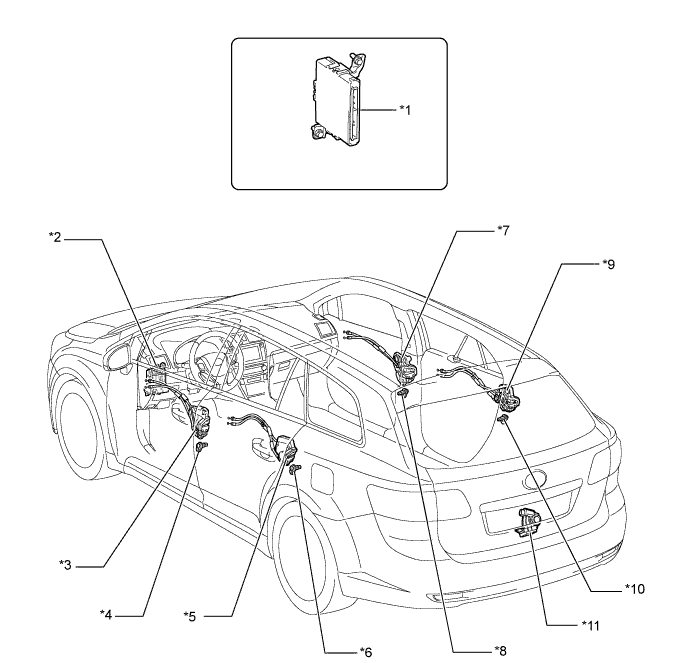

Text in Illustration (Entry Function Configuration on Wagon Models)
*1	Certification ECU	*2	Main Body ECU (Instrument Panel Junction Block Assembly)
*3	Front Door with Motor Lock Assembly LH - Door Lock Motor - Door Lock Position Switch	*4	Front Door Courtesy Light Switch Assembly LH
*5	Rear Door with Motor Lock Assembly LH - Door Lock Motor - Door Lock Position Switch	*6	Rear Door Courtesy Light Switch Assembly LH
*7	Front Door with Motor Lock Assembly RH - Door Lock Motor - Door Lock Position Switch	*8	Front Door Courtesy Light Switch Assembly RH
*9	Rear Door with Motor Lock Assembly RH - Door Lock Motor - Door Lock Position Switch	*10	Rear Door Courtesy Light Switch Assembly RH
*11	Back Door Lock Assembly - Door Lock Motor - Back Door Courtesy Light Switch	-	-

A005WVUE01

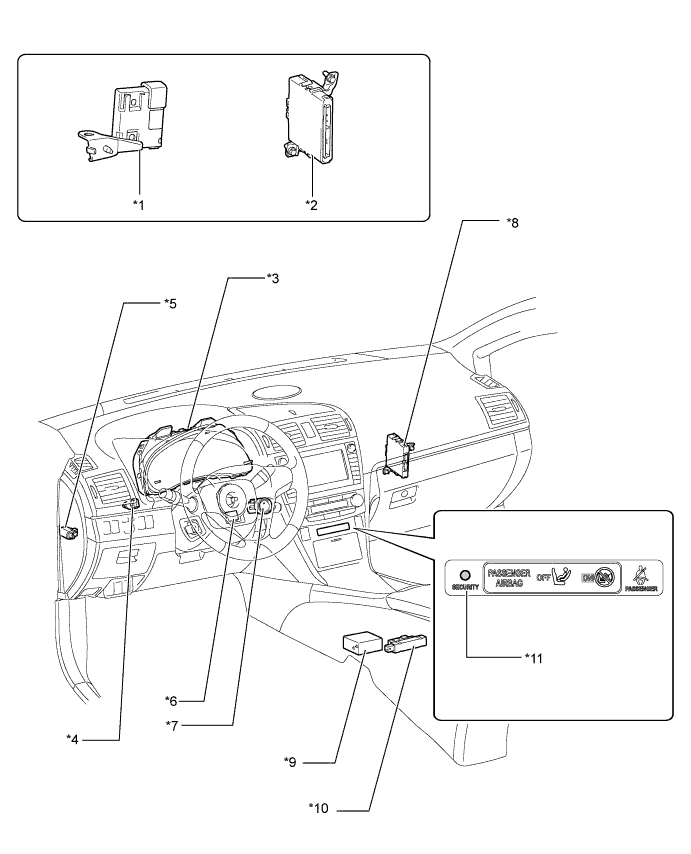

Text in Illustration (Start Function Configuration)
*1	ID Code Box	*2	Certification ECU
*3	Combination Meter Assembly	*4	Stop Light Switch Assembly*a
*5	Clutch Start Switch Assembly*b	*6	Steering Lock Actuator Assembly
*7	Engine Switch - Transponder Key Amplifier	*8	Power Management Control ECU
*9	Shift Lock Control ECU Sub-assembly*a	*10	Indoor Electrical Key Oscillator
*11	Security Indicator Light	-	-

*a: Models with automatic transaxle
*b: Models with manual transaxle

A005WS3E01

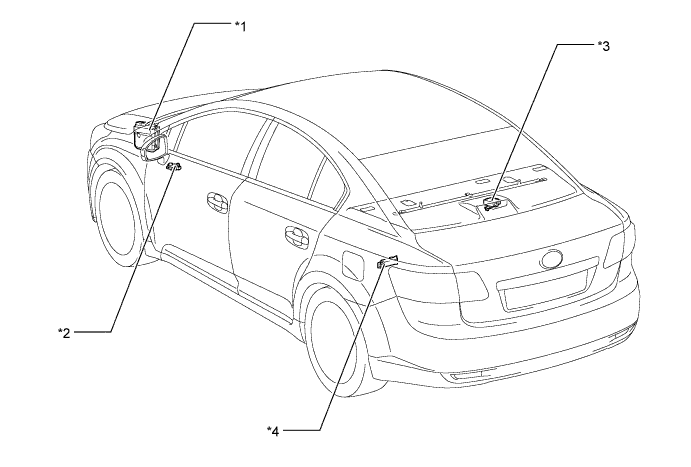

Text in Illustration (Start Function Configuration on Sedan Models)
*1	ECM	*2	Park/Neutral Position Switch Assembly*a
*3	Door Control Receiver	*4	No. 2 Indoor Electrical Key Oscillator

*a: Models with automatic transaxle

A005X01E01

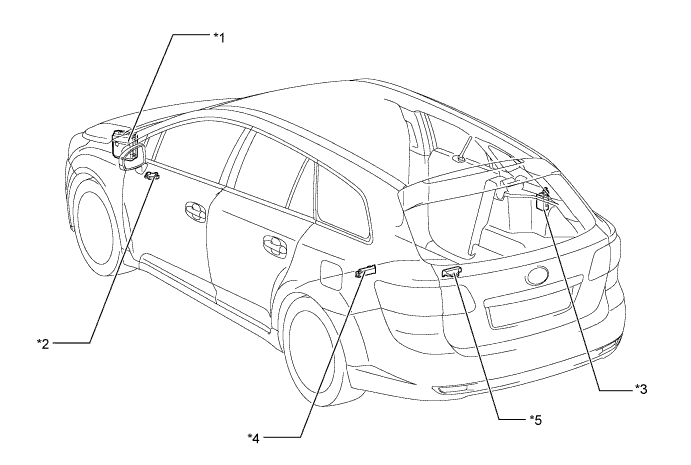

Text in Illustration (Start Function Configuration on Wagon Models)
*1	ECM	*2	Park/Neutral Position Switch Assembly*a
*3	Door Control Receiver	*4	No. 2 Indoor Electrical Key Oscillator
*5	No. 3 Indoor Electrical Key Oscillator	-	-

*a: Models with automatic transaxle
