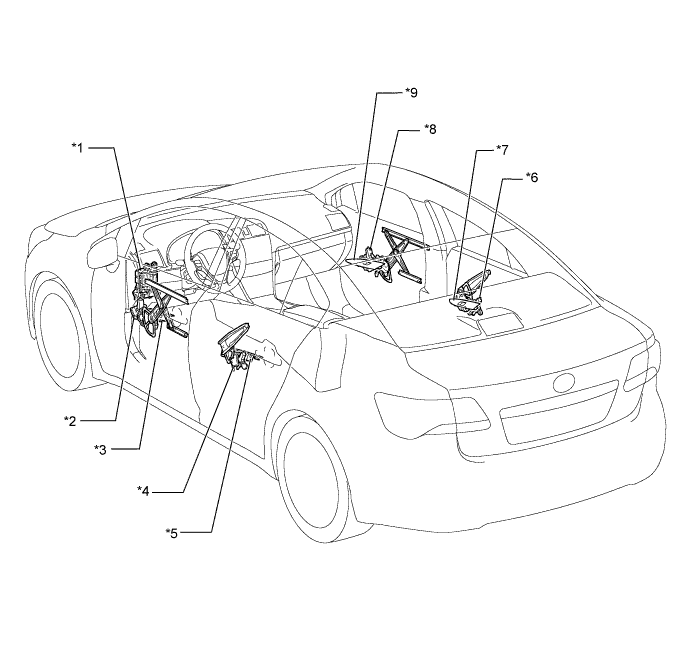

POWER WINDOW CONTROL SYSTEM PARTS LOCATION
| *1 | Main Body ECU (Instrument Panel Junction Block Assembly) | *2 | Front Door Window Regulator Assembly LH - Power Window ECU |
| *3 | Power Window Regulator Master Switch Assembly | *4 | Rear Door Window Regulator Assembly LH*a - Power Window ECU*a |
| *5 | Rear Power Window Regulator Switch Assembly LH*a | *6 | Rear Door Window Regulator Assembly RH*a - Power Window ECU*a |
| *7 | Rear Power Window Regulator Switch Assembly RH*a | *8 | Front Door Window Regulator Assembly RH - Power Window ECU |
| *9 | Front Power Window Regulator Switch Assembly RH | - | - |
-
*a: Models with rear power window control system
| *1 | Main Body ECU (Instrument Panel Junction Block Assembly) | *2 | Front Door Window Regulator Assembly LH - Power Window ECU |
| *3 | Power Window Regulator Master Switch Assembly | *4 | Rear Door Window Regulator Assembly LH*a - Power Window ECU*a |
| *5 | Rear Power Window Regulator Switch Assembly LH*a | *6 | Rear Door Window Regulator Assembly RH*a - Power Window ECU*a |
| *7 | Rear Power Window Regulator Switch Assembly RH*a | *8 | Front Door Window Regulator Assembly RH - Power Window ECU |
| *9 | Front Power Window Regulator Switch Assembly RH | - | - |
-
*a: Models with rear power window control system
