AIR CONDITIONING SYSTEM PARTS LOCATION

A00OWTOE01

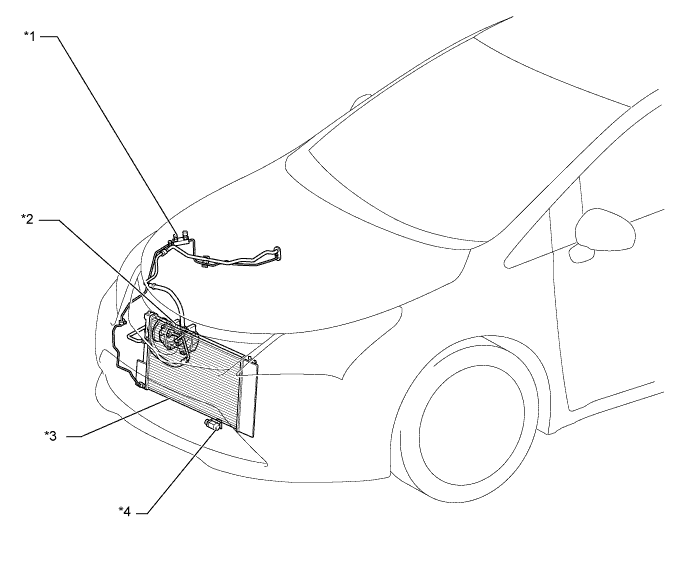

Text in Illustration
*1 Airconditioner Pressure Sensor *2

Compressor Assembly with Pulley

- Solenoid Control Valve
*3 Condenser Assembly *4 Cooler (Ambient Temperature Sensor) Thermistor
A00OWFCE01

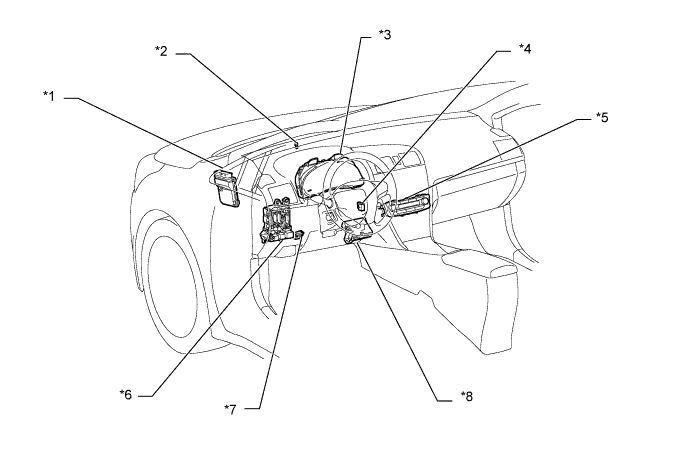

Text in Illustration
*1 ECM *2 Cooler (Solar Sensor) Thermistor*a
*3 Combination Meter Assembly *4 Cooler (Room Temperature Sensor) Thermistor*a
*5 Air Conditioning Control Assembly *6 Main Body ECU (Instrument Panel Junction Block Assembly)
*7 DLC3 *8 Air Conditioning Amplifier Assembly
A00OWJAE01

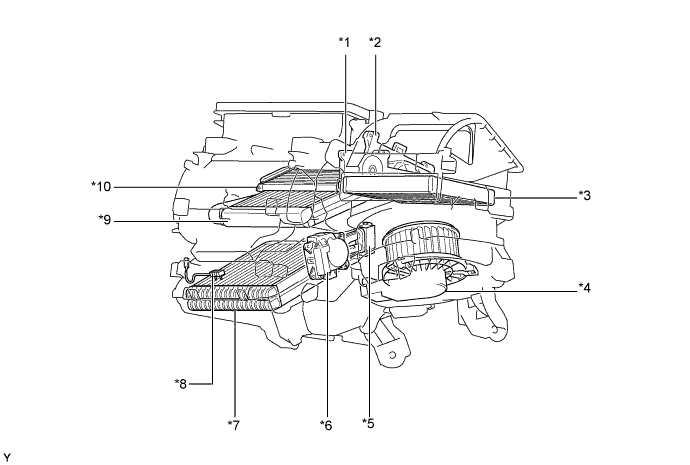

Text in Illustration (Models with Manual Air Conditioning)
*1 No. 1 Damper Servo Sub-assembly *2 Mode Damper Servo Sub-assembly
*3 Clean Air Filter *4 Blower Assembly
*5 Cooler Expansion Valve *6 Airmix Damper Servo Sub-assembly
*7 No. 1 Cooler Evaporator Sub-assembly *8 No. 1 Cooler Thermistor
*9 Heater Radiator Unit Sub-assembly *10

Quick Heater Assembly*a

- PTC Heater Relay*a
A00OWA9E01

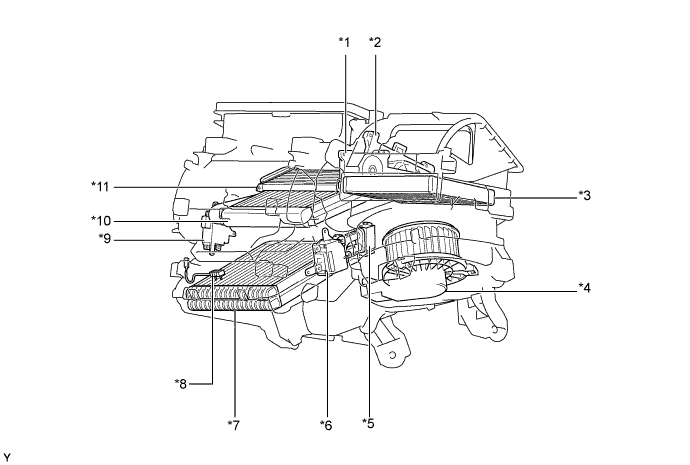

Text in Illustration (Models with Automatic Air Conditioning)
*1 No. 1 Damper Servo Sub-assembly *2 Mode Damper Servo Sub-assembly
*3 Clean Air Filter *4 Blower Assembly
*5 Cooler Expansion Valve *6 No. 2 Airmix Damper Servo Sub-assembly
*7 No. 1 Cooler Evaporator Sub-assembly *8 No. 1 Cooler Thermistor
*9 Airmix Damper Servo Sub-assembly *10 Heater Radiator Unit Sub-assembly
*11

Quick Heater Assembly*a

- PTC Heater Relay*a

 - -
