AIR CONDITIONING SYSTEM PARTS LOCATION

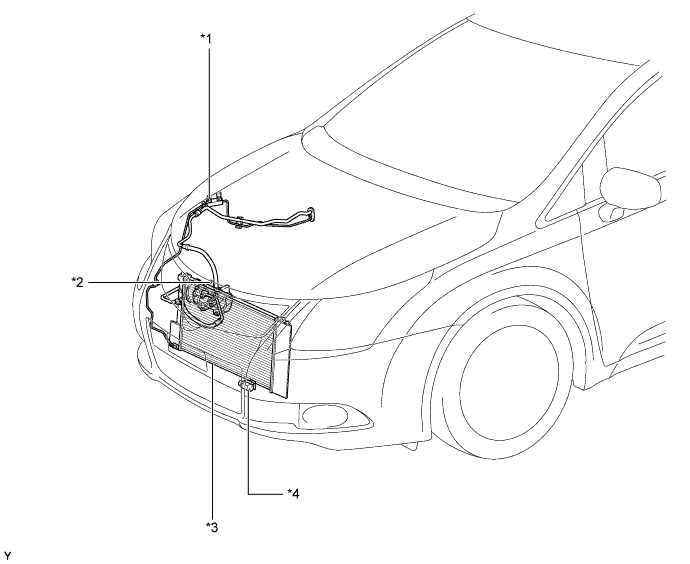

A0076PBE01
Text in Illustration
*1 Air Conditioning Pressure Sensor *2

Compressor Assembly

- Solenoid Control Valve
*3 Condenser Assembly *4 Cooler (Ambient Temperature Sensor) Thermistor

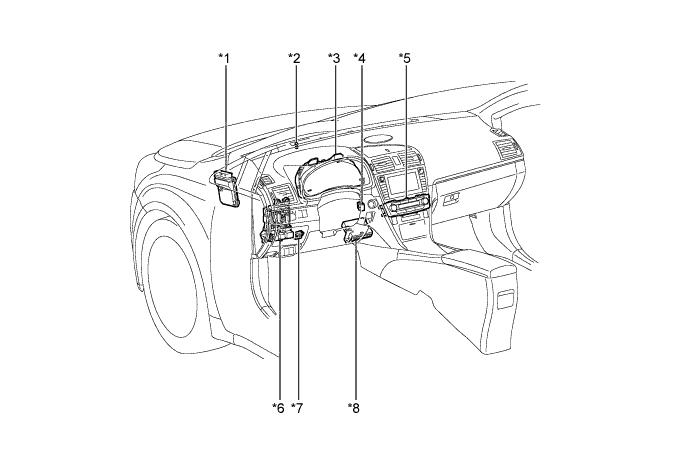

A0076GBE01
Text in Illustration
*1 ECM *2 Cooler (Solar Sensor) Thermistor*a
*3 Combination Meter Assembly *4 Cooler (Room Temperature Sensor) Thermistor*a
*5 Air Conditioning Control Assembly *6 Main Body ECU (Instrument Panel Junction Block Assembly)
*7 DLC3 *8 Air Conditioning Amplifier Assembly
A0076BFE01
Text in Illustration (Models with Manual Air Conditioning)
*1 Damper Servo Sub-assembly *2 Mode Damper Servo Sub-assembly
*3 Clean Air Filter *4 Blower Assembly
*5 Expansion Valve *6 Airmix Damper Servo Sub-assembly
*7 No. 1 Cooler Evaporator Sub-assembly *8 No. 1 Cooler Thermistor
*9 Heater Radiator Unit Sub-assembly *10

Quick Heater Assembly*a

- PTC Heater Relay*a
A0076P1E01
Text in Illustration (Models with Automatic Air Conditioning)
*1 Damper Servo Sub-assembly *2 Mode Damper Servo Sub-assembly
*3 Clean Air Filter *4 Blower Assembly
*5 Expansion Valve *6 No. 2 Airmix Damper Servo Sub-assembly
*7 No. 1 Cooler Evaporator Sub-assembly *8 No. 1 Cooler Thermistor
*9 Airmix Damper Servo Sub-assembly *10 Heater Radiator Unit Sub-assembly
*11

Quick Heater Assembly*a

- PTC Heater Relay*a

 - -
