AIRBAG SYSTEM GENERAL

  1. OUTLINE

    1. The Supplemental Restraint System (SRS) driver and front passenger airbags are used as supplements to the seat belts to help to reduce the shocks to the head and chest of the driver or front passenger in the event of a frontal impact collision.

    2. The SRS knee airbag is used as a supplement to the seat belt to help to reduce the shock to the knees of the driver in the event of a frontal impact collision.

    3. The SRS front seat side and curtain shield airbags are used to help reduce the shocks to the heads and chests of the driver, front passenger, and outer rear passengers in the event of a side collision.

    4. The center airbag sensor assembly uses a fuel cut control that stops the fuel pump if any airbag is deployed.

    5. An airbag cut off switch cylinder which disables the deployment of the front passenger airbag assembly as deemed necessary is provided as standard equipment on models for Europe.

      A0076T4E01

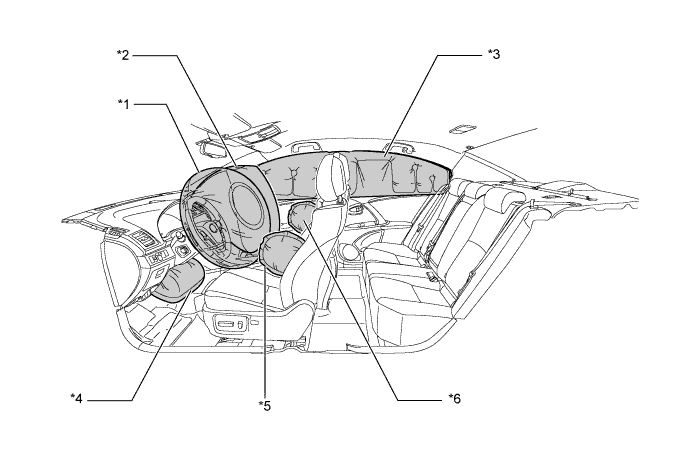

      Text in Illustration (for Sedan Models)
      *1 SRS Driver Airbag *2 SRS Front Passenger Airbag
      *3 SRS Curtain Shield Airbag*a *4 SRS Knee Airbag
      *5 SRS Side Airbag LH *6 SRS Side Airbag RH

      • *a: Models with SRS curtain shield airbag

      A0076TNE01

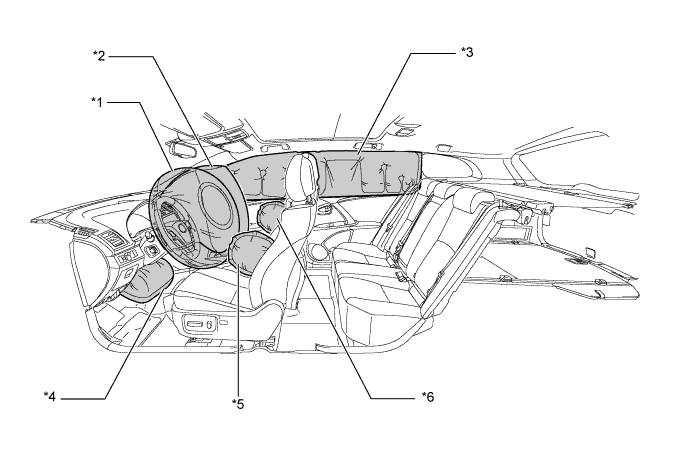

      Text in Illustration (for Wagon Models)
      *1 SRS Driver Airbag *2 SRS Front Passenger Airbag
      *3 SRS Curtain Shield Airbag*a *4 SRS Knee Airbag
      *5 SRS Side Airbag LH *6 SRS Side Airbag RH

      • *a: Models with SRS curtain shield airbag
