METER / GAUGE SYSTEM DETAILS

  1. OPERATING CONDITION

    1. Eco Driving Indicator

      1. The Eco Driving Indicator starts to operate when the following conditions are met:

        Condition Ignition switch (engine switch*1) is ON.
        Engine is running.
        Shift lever is in D.
        Drive mode of the CVT system is normal.*2
        Shift paddle switch (transmission shift switch assembly) is not being operated.*3
        Vehicle is running.

        • *1: Models with entry and start system

        • *2: Models with CVT

        • *3: Models with shift paddle switch (transmission shift switch assembly)

    2. The Eco Driving Indicator stops operation when the following conditions are met:

      Condition Ignition switch (engine switch*1) is off.
      Shift lever is in any position other than D.
      Drive mode of the CVT system is in any other mode except normal.*2
      Shift paddle switch (transmission shift switch assembly) has been operated.*3

      • *1: Models with entry and start system

      • *2: Models with CVT

      • *3: Models with shift paddle switch (transmission shift switch assembly)

  2. FUNCTION

    1. Buzzer Function

      1. The table below shows the warning and reminder functions of the multi buzzer in the combination meter assembly:

        Function Item
        Warning

        • Multi-information Display Warning Mode Indication

        • Front Seat Belt Warning

        • Door Open Driving Warning

        • Entry and Start System Warning*1

        • Engine Immobiliser System Warning

        • Parking Brake Unreleased warning

        • Downshift Reject Warning*2
        Reminder

        • Key Reminder

        • Rear Passengers Seat Belt Reminder

        • Light Reminder System

        • *1: Models with entry and start system

        • *2: Models with CVT

    2. Multi-information Display

      1. The multi-information display has 6 displays.

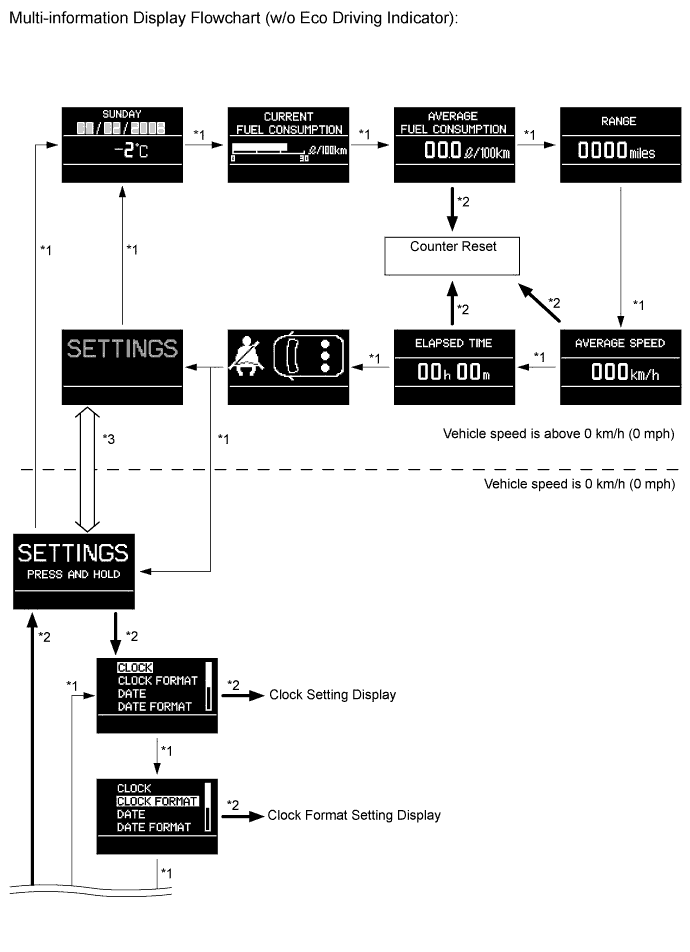

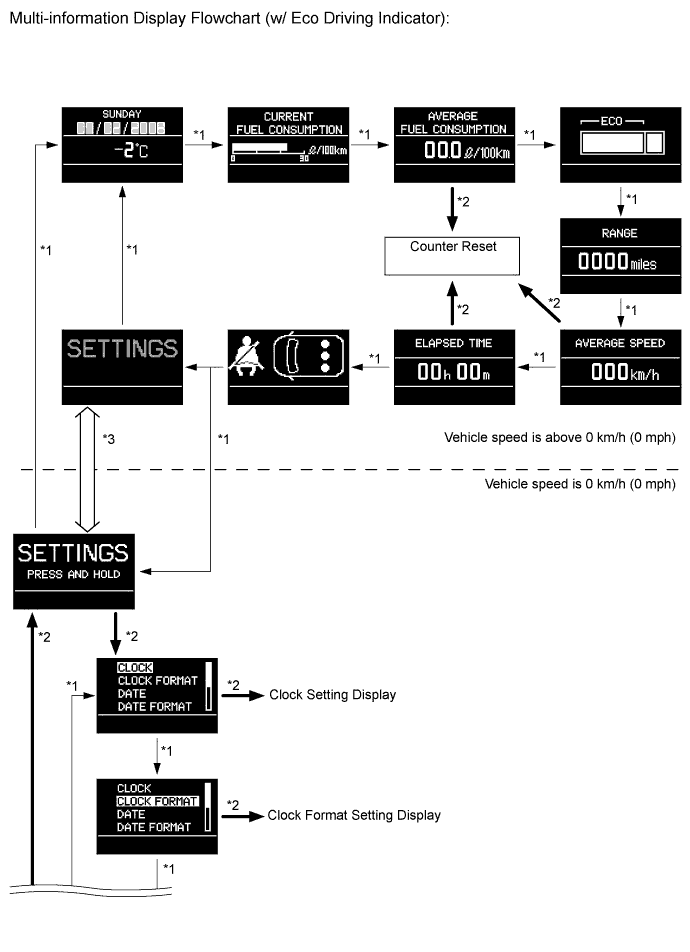

      2. The multi-information display can be switched by pressing the DISP switch located on the steering pad switch and the DISP knob located on the combination meter.

      3. The multi-information display indicates the followings:

        Display Outline
        Ambient Temperature and Date The ambient temperature and date are displayed.
        Cruise Information In the cruise information display, 5 types of information (current fuel consumption, average fuel consumption, driveable distance, average vehicle speed, elapsed time) can be displayed.
        Warning The warning display will interrupt the multi-information display immediately when a warning occurs.
        Eco Driving Indicator Zone* Eco driving ratio based on accelerator pedal operation is shown with a bar graph.
        Rear Passengers Seat Belt Reminder Shows whether the rear seat belts are buckled or not.

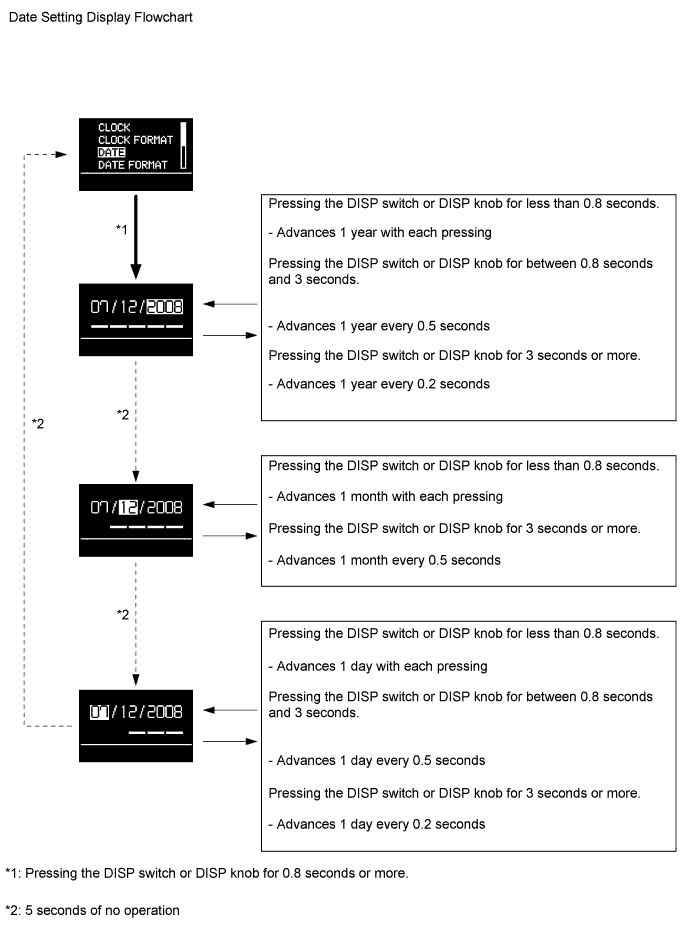

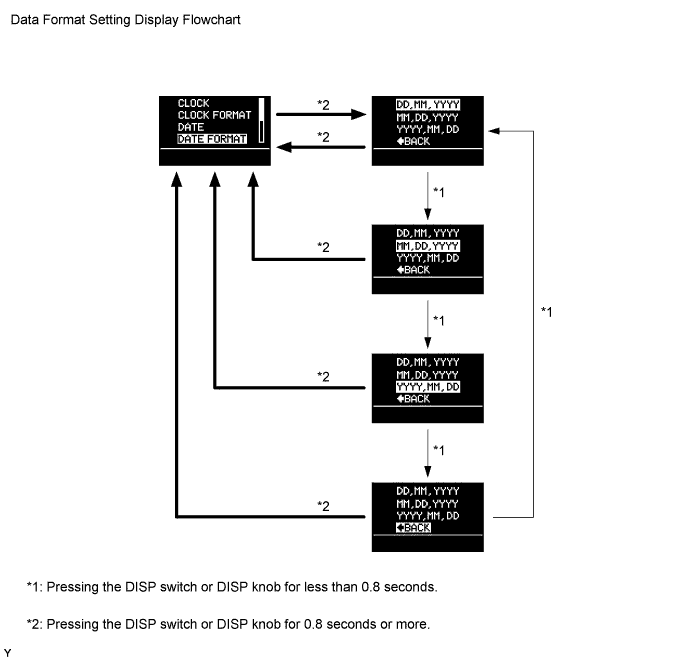

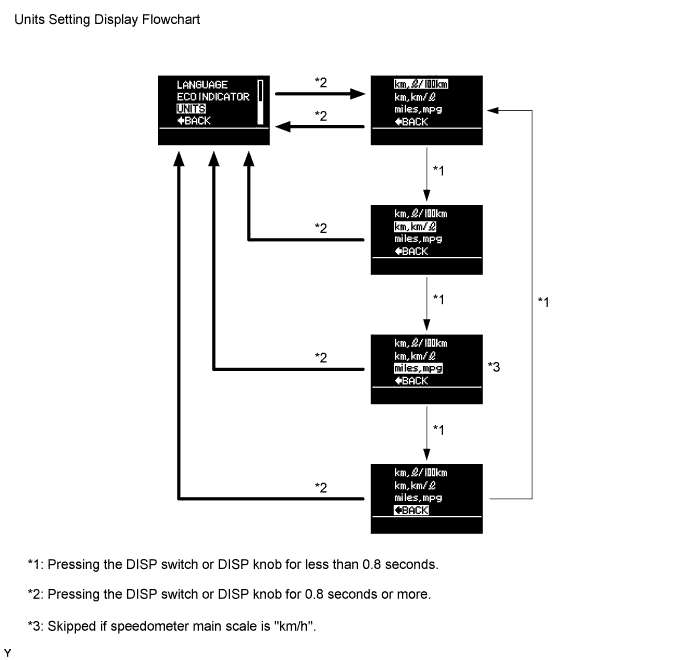

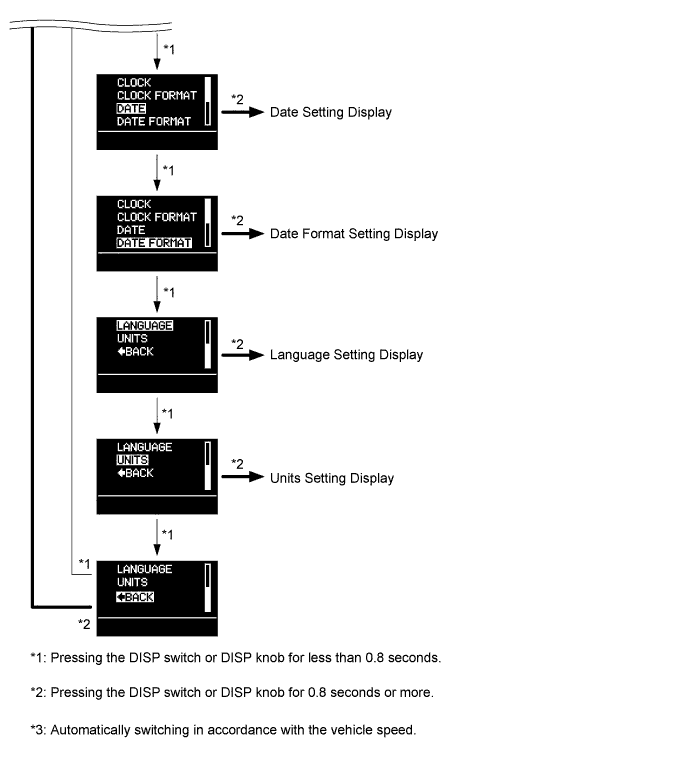

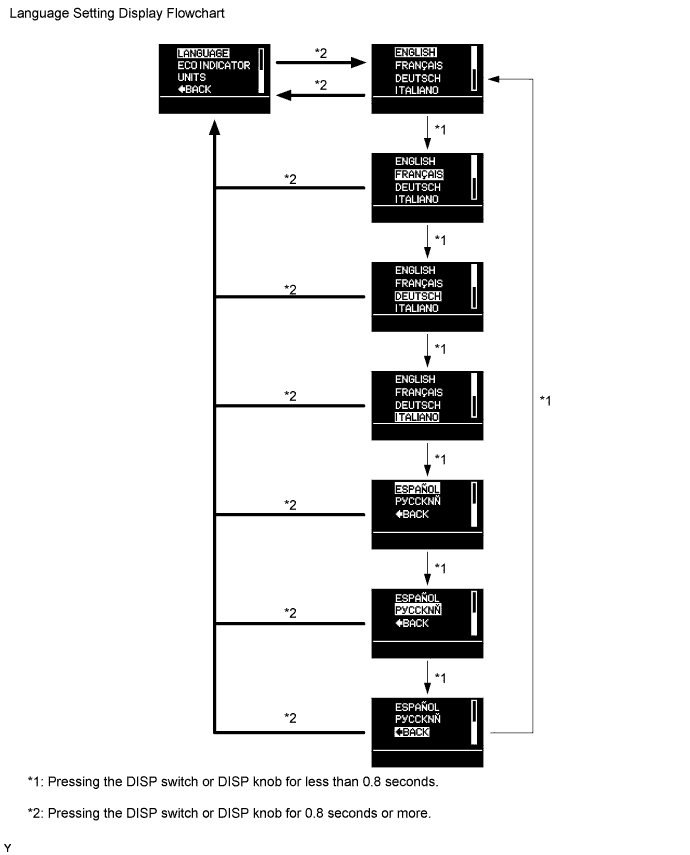

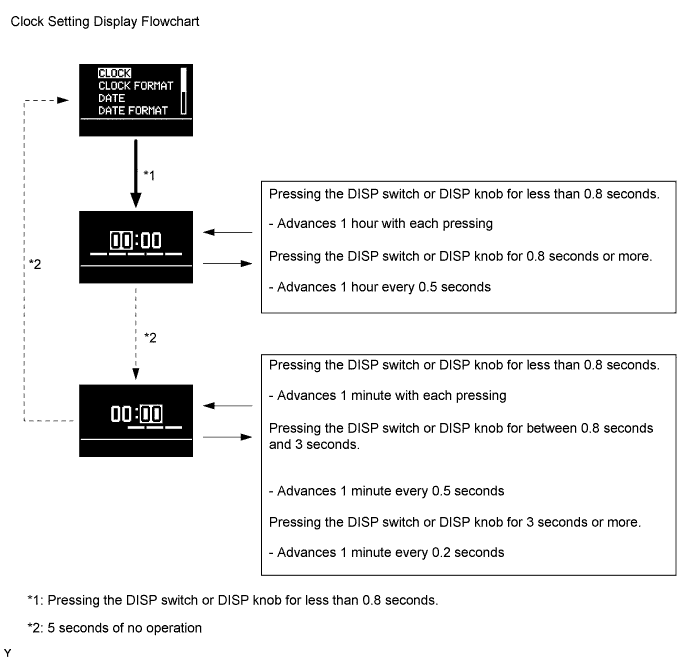

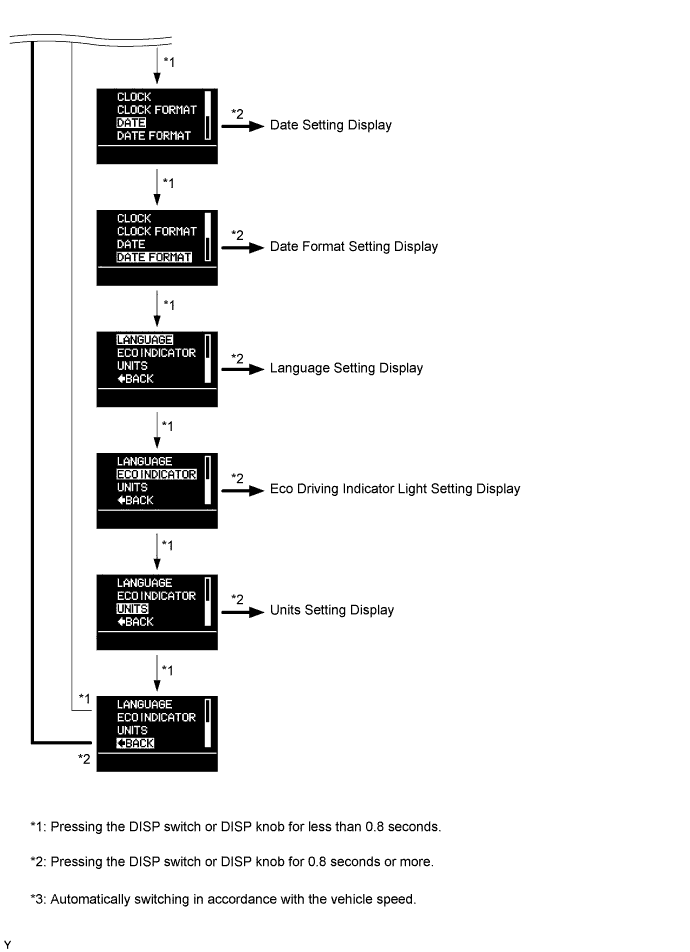

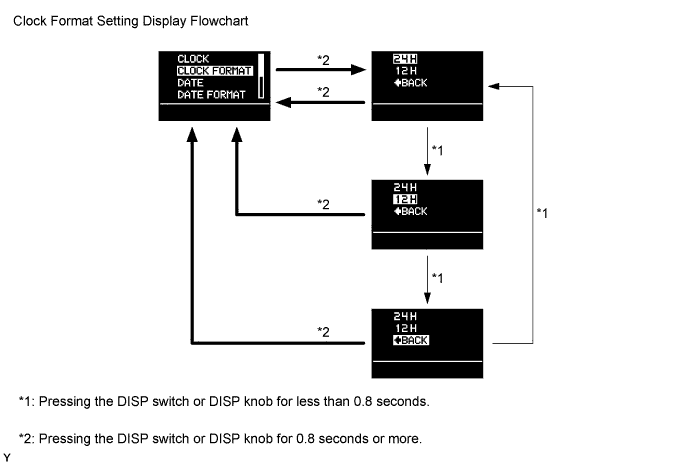

        Setup The clock, date, language, Eco Driving Indicator Light*, and units can be set up from this screen. This setup is available only while the vehicle is stopped. If vehicle movement is detected during setup, the setup will be canceled automatically.

        • *: Models with Eco Driving Indicator

        A010FVVE01
        A010FVNE01
        A010FTRE01
        A010FEXE01
        A010FWKE01
        A010FXHE01
        A010F7RE01
        A010FK0E01
        A010F6IE01
        A010FPXE01
        A010FKFE01

    3. Cruise Information Display Function

      1. The cruise information is displayed in the following order each time the DISP switch is pressed:

        Item Displayed Content Outline
        Current Fuel Consumption km/l A010FQV

        • Displays the value that has been calculated by the meter ECU, which is based on the driven distance and the fuel consumption volume (fuel injection amount signal from ECM via CAN), provided that the ignition switch (engine switch*) is turned to ON.

        • The display updates every 0.6 seconds.
        mpg A010FKC
        l/100km A010FWI
        Average Fuel Consumption km/l A010FFL

        • Displays the value that has been calculated by the meter ECU, which is based on the driven distance and the fuel consumption volume (fuel injection amount signal from ECM via CAN).

        • The value is also reset by pressing the DISP switch or DISP knob for 0.8 seconds or more.

        • The display updates every 10 seconds.
        mpg A010F9D
        l/100km A010FCJ
        Driveable Distance km A010FR9

        • Displays the value that has been calculated by the meter ECU, which is based on the fuel consumption data that the meter ECU continuously monitors and stores in its memory, and the residual fuel volume data, provided that the ignition switch (engine switch*) is turned to ON.

        • The display updates every kilometer or mile.
        miles A010FAW
        Average Vehicle Speed km/h A010FNM

        • Displays the value that has been calculated by the meter ECU, which is based on the elapsed time and driven distance after the ignition switch (engine switch*) is turned to ON or the DISP switch or DISP knob has been pushed for 0.8 seconds or more.

        • The display updates every 10 seconds.
        mph A010F7M
        Elapsed Time A010FHC Displays the time that has elapsed since the ignition switch (engine switch*) has been turned to ON or the DISP switch or DISP knob has been pressed for 0.8 seconds or more.

        • *: Models with entry and start system

    4. Warning Display Function

      Warning Message Description Master Warning Light Multi Buzzer
      A010FKW Door Open Off Off
      A010FMP Luggage Compartment Door Open*1 Off Off
      A010FLG Back Door Open*2 Off Off
      A010FBL Auto Power Off Operation Condition Off Off
      A010FM8 Rear Seat Belt Bucking Status Off Off
      A010FPM Shift Position Warning*3 Blinks Off
      A010FIF Power Off Operation Guide*3 Blinks Sounds
      A010FQ3 Brake Light System Malfunction Illuminates Sounds
      A010FW8 Vehicle is traveling with the parking brake engaged. Blinks Off
      A010FH9 No Key Warning*3 Blinks Off
      A010FN7 Parking brake inoperative due to high temperature Blinks Sounds
      A010FMA Clutch Switch Malfunction*4 Illuminates Sounds
      A010FBW VSC OFF*5 Illuminates Off
      A010FV3 Speed Limiter Control Malfunction*6 Illuminates Sounds
      A010FF7 Check Steering Lock System*3 Illuminates Sounds
      A010FKU Low Engine Oil Pressure Illuminates Sounds
      A010FNW High Transmission Fluid Temperature*7 Illuminates Sounds
      A010FFO VSC System Malfunction*5 Illuminates Sounds
      A010FOF Parking Brake Inoperable Illuminates Sounds
      A010FBC Electric Parking Brake Malfunction Illuminates Sounds
      A010FWB Urge to Turn Power off Blinks Sounds
      A010FEU Key Detected in Vehicle*3 Blinks Sounds
      A010FF1 The ignition switch (engine switch*3) is turned off and the driver door is opened with the light control switch in the TAIL or HEAD position. Blinks Off
      A010FDQ Start Operation Guide*3 Blinks Sounds
      A010FUR Start Operation Guide*3 Blinks Sounds
      A010FAA Start Operation Guide*3 Blinks Off
      A010FII Start Operation Guide*3 Blinks Off
      A010F7X Start Operation Guide*3 Blinks Sounds
      A010FXS Start Operation Guide*3 Blinks Sounds
      A010F9V Start Operation Guide*3 Blinks Sounds
      A010FG6 Steering lock is has not been released. Blinks Sounds
      A010FNS Low Key Battery Warining*3 Illuminates Sounds
      A010FML Diagnosis Off Off

      • *1: Sedan models

      • *2: Wagon models

      • *3: Models with entry and start system

      • *4: Models with manual transaxle

      • *5: Models with VSC

      • *6: Models with speed limiter control

      • *7: Models with automatic transaxle and CVT

    5. Eco Driving Indicator

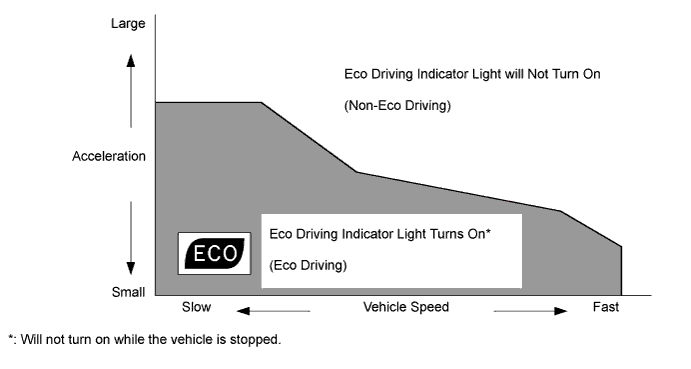

      1. The operating diagram of the Eco Driving Indicator is as follows:

        A010FOSE01

      2. When the ECM, using information (such as vehicle speed, accelerator pedal depressed volume, shift lever position, engine speed signal (engine RPM data), shift range, drive mode, and so on), calcurates that the driving is Eco, it turns on the Eco Driving Indicator Light and shows the bar graph of the Eco Driving Indicator Zone Display within the Eco Driving range.

      3. When the ECM calcurates that the driving is not fuel-efficient, it turns off the Eco Driving Indicator Light and blinks the right side of the Eco Driving Indicator Zone Display.

      4. The operation of the Eco Driving Indicator is as follows:

        Vehicle Condition Eco Driving Indicator Zone Display Eco Driving Indicator Light
        Stopped A010F60 Off

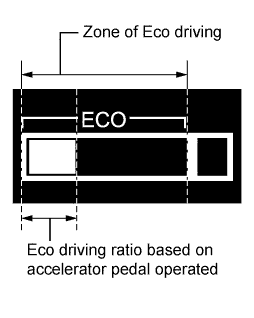

        Eco Driving A010FQ7E01 Illuminates
        Non-Eco Driving A010FRVE01 Off

      5. The Eco Driving Indicator can be turned off in the following ways:

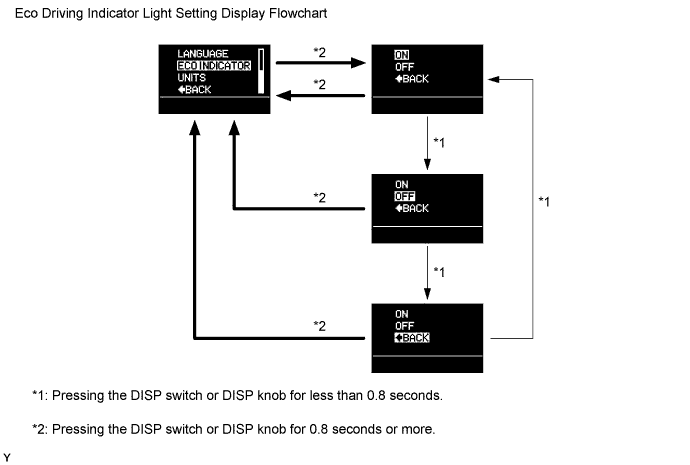

        • The Eco Driving Indicator Light can be turned off from the Eco Driving Indicator Light setting display of the multi-information display.

    6. Front Seat Belt Warning Function

      1. When the ignition switch (engine switch*) is ON, this system detects the condition of the seat belts based on the signals from the driver and front passenger seat belt buckle switches and the occupant detection sensor.

      2. The multi buzzer sounds when the vehicle speed exceeds 20 km/h (12.4 mph) to emphasize the fact that the seat belt is unbuckled. After 30 seconds, the sound changes for emphasis. The sound continues for 90 seconds. Once a multi buzzer begins to sound, it will continue until the seat belt is buckled or the ignition switch (engine switch*) is turned off.

        • *: Models with entry and start system

        Tech Tips

        Upon receiving a request from a user who cannot wear a seat belt for a special reason, the buzzer warning can be canceled using the intelligent tester II. For details, refer to the AVENSIS Repair Manual.

      3. Occupant Detection Sensor

        • The occupant detection sensor, which is enclosed in the seat cushion of the front passenger seat, is used to detect whether or not the front passenger seat is occupied.

        • This sensor consists of a construction in which 2 electrode sheets sandwich a spacer. When the occupant is seated, the electrode sheets come in contact with each other through the hole provided in the spacer portion, thus enabling the current to flow.

        • Thus, the sensor detects whether or not an occupant is seated in the front passenger seat.

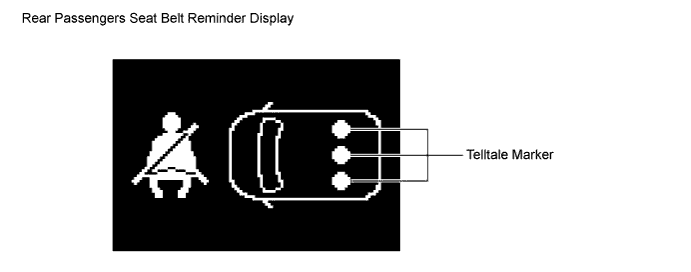

    7. Rear Passengers Seat Belt Reminder Function

      A010FFXE01

      1. If the meter ECU receives an off signal from the rear door courtesy light switch assembly when the ignition switch (engine switch*) is ON, a rear passengers seat belt reminder display is shown on the multi-information display. At this time, if the meter ECU receives an on signal from a rear seat belt buckle switch, it will extinguish the telltale marker on the warning display corresponding to the rear seat belt buckle switch which sent the on signal. In addition, the rear passengers seat belt reminder display will automatically turn off approximately 30 seconds after the display.

      2. If any of the rear seat belts are released while the vehicle speed is above 20 km/h (12 mph), the rear passengers seat belt reminder display is shown and the multi buzzer is sounded. After 30 seconds, the sound is changed for emphasis. The sound continues for 90 seconds. Once the multi buzzer begins to sound, it will continue until the rear seat belt is buckled or the ignition switch (engine switch*) is turned off.

      3. While the rear passengers seat belt reminder display is being shown, if another warning needs to be shown at the same time, the rear passengers seat belt reminder display and the other warning are alternately displayed.

      4. The DISP knob installed on the meter or the DISP switch installed on the steering pad switch can be used to show the rear passengers seat belt reminder display as required.

        • *: Models with entry and start system

  3. FAIL-SAFE

    1. Eco Driving Indicator

      1. When any of the following conditions are met, the Eco Driving Indicator Light is turned off and the Eco Driving Indicator Zone Display is stopped:

        • Engine Signal Malfunction

        • CAN Signal Malfunction
