METER / GAUGE SYSTEM PARTS LOCATION
| *1 | Front Passenger Seat Belt Warning Light*a | *2 | Front Passenger Seat Belt Warning Light*b |
| *3 | Combination Meter Assembly | *4 | Main Body ECU (Instrument Panel Junction Block Assembly) |
| *5 | Driver Seat Belt Buckle Switch | *6 | Front Passenger Seat Belt Buckle Switch |
| *7 | Occupant Detection Sensor | *8 | Skid Control ECU |
-
*a: Models for general countries
-
*b: Models for Europe
| *1 | Combination Meter Assembly - Meter ECU - Multi Buzzer - Multi-information Display |
*2 | Rear Seat Belt Buckle Switch RH |
| *3 | Rear Seat Belt Buckle Switch Center | *4 | Rear Seat Belt Buckle Switch LH |
| *5 | Skid Control ECU | - | - |

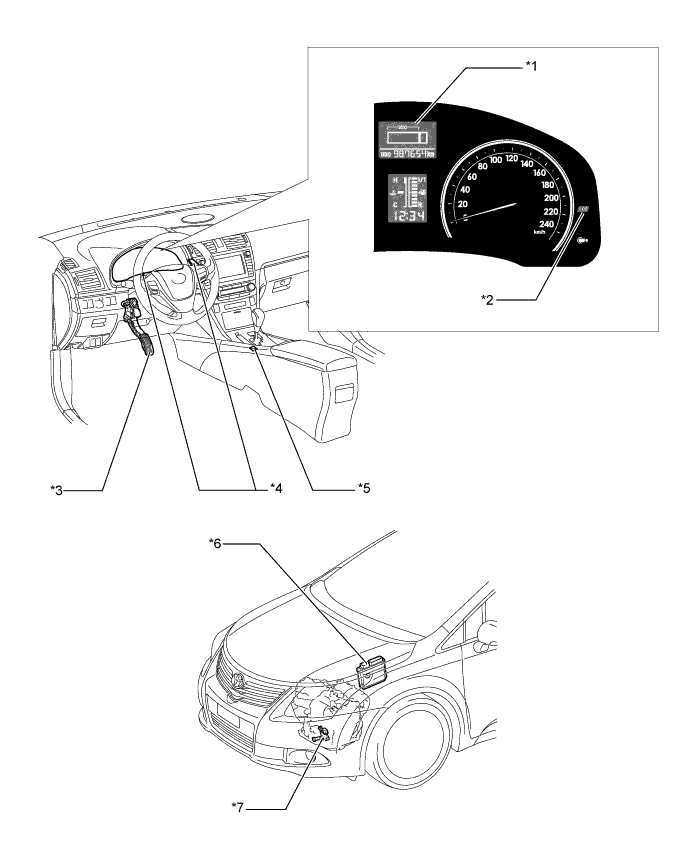

| *1 | Multi-information Display | *2 | Eco Driving Indicator Light |
| *3 | Accelerator Pedal Assembly | *4 | Shift Paddle Switch (Transmission Shift Switch Assembly)*a |
| *5 | Pattern Select Switch Assembly*b | *6 | ECM |
| *7 | Park/Neutral Position Switch Assembly | - | - |
-
*a: Models with shift paddle switch (transmission shift switch assembly)
-
*b: Models with CVT
