WIRELESS DOOR LOCK CONTROL SYSTEM PARTS LOCATION

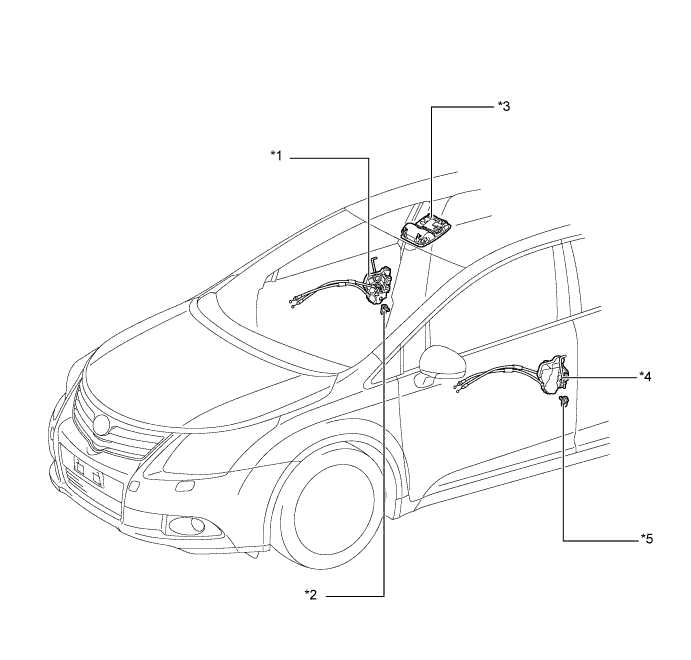

A005WXIE01
Text in Illustration
*1

Front Door with Motor Lock Assembly RH

- Door Lock Motor

- Door Lock Position Switch

- Double Lock Motor*a

- Double Lock Position Switch*a

 *2 Front Door Courtesy Light Switch Assembly RH
*3 Map Light *4

Front Door with Motor Lock Assembly LH

- Door Lock Motor

- Door Lock Position Switch

- Double Lock Motor*a

- Double Lock Position Switch*a
*5 Front Door Courtesy Light Switch Assembly LH - -

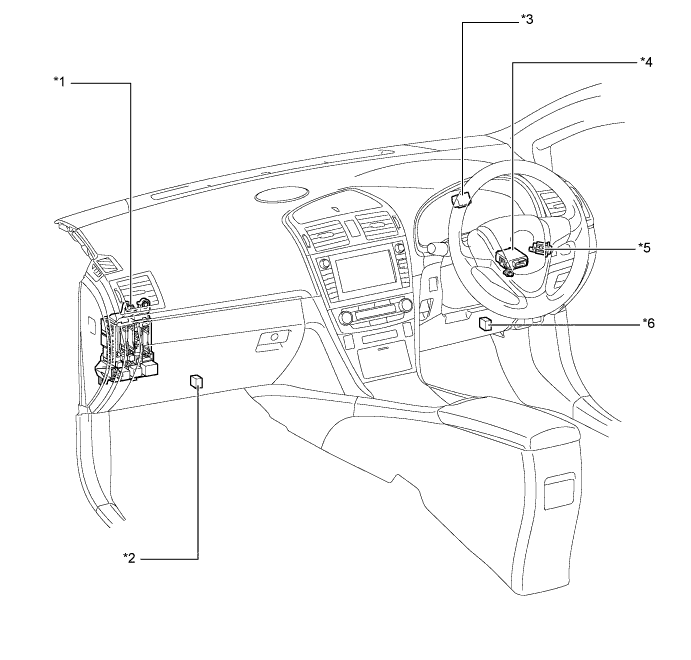

A005WZPE01
Text in Illustration
*1 Main Body ECU (Instrument Panel Junction Block Assembly) *2 No. 1 Interior Illumination Light Assembly LH*a
*3 Turn Signal Flasher Assembly *4 Double Lock Door Control Relay Assembly*b
*5 Key Illumination *6 No. 1 Interior Illumination Light Assembly RH*a

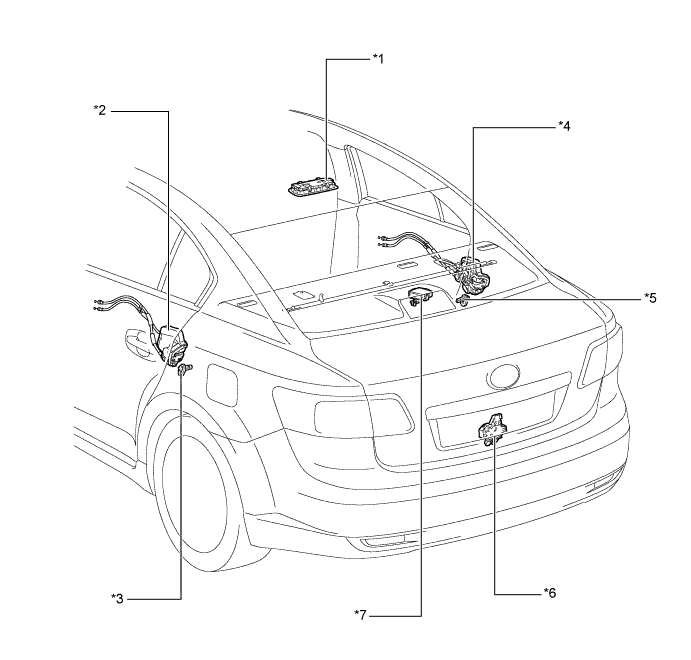

A005X2JE01
Text in Illustration (for Sedan Models)
*1 Room Light *2

Rear Door with Motor Lock Assembly LH

- Door Lock Motor

- Door Lock Position Switch

- Double Lock Motor*a

- Double Lock Position Switch*a
*3 Rear Door Courtesy Light Switch Assembly LH *4

Rear Door with Motor Lock Assembly RH

- Door Lock Motor

- Door Lock Position Switch

- Double Lock Motor*a

- Double Lock Position Switch*a
*5 Rear Door Courtesy Light Switch Assembly RH *6

Luggage Compartment Door Lock Assembly

- Door Lock Motor

- Luggage Compartment Door Courtesy Light Switch
*7 Door Control Receiver - -

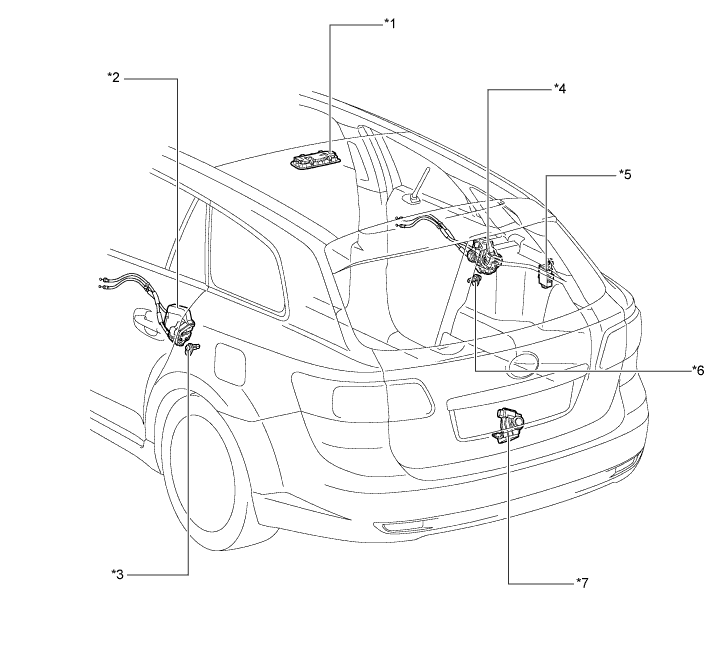

A005WZ5E01
Text in Illustration (for Wagon Models)
*1 Room Light *2

Front Door with Motor Lock Assembly LH

- Door Lock Motor

- Door Lock Position Switch

- Double Lock Motor*a

- Double Lock Position Switch*a
*3 Front Door Courtesy Light Switch Assembly LH *4

Front Door with Motor Lock Assembly RH

- Door Lock Motor

- Door Lock Position Switch

- Double Lock Motor*a

- Double Lock Position Switch*a
*5 Door Control Receiver *6 Front Door Courtesy Light Switch Assembly RH
*7

Back Door Lock Assembly

- Door Lock Motor

- Back Door Courtesy Light Switch

 - -
