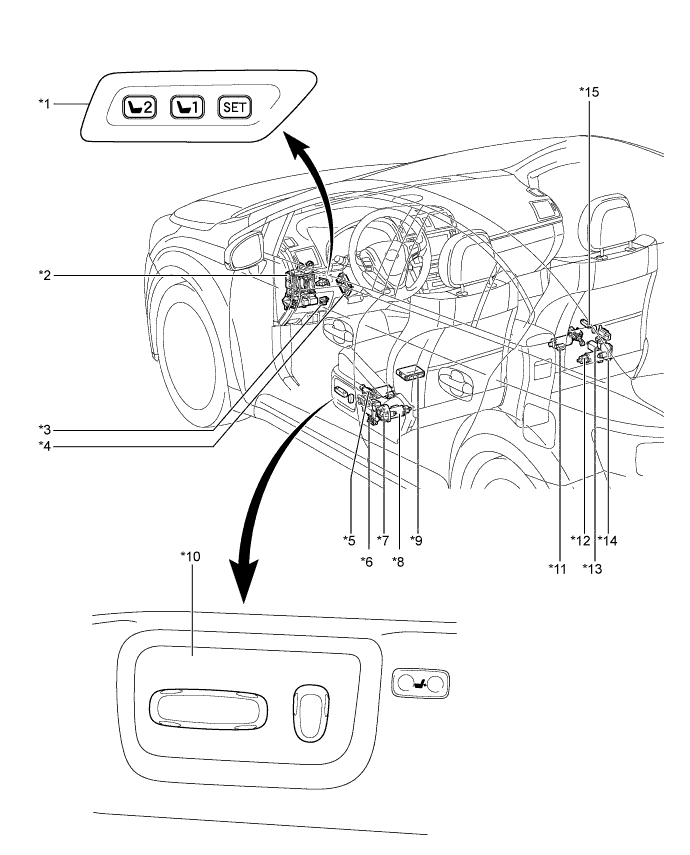

POWER SEAT CONTROL SYSTEM PARTS LOCATION
| *1 | Seat Memory Switch | *2 | Main Body ECU (Instrument Panel Junction Block Assembly) |
| *3 | DLC3 | *4 | Multiplex Tilt and Telescopic ECU |
| *5 | Front Vertical Motor*a | *6 | Rear Vertical Motor*a |
| *7 | Reclining Motor*a | *8 | Sliding Motor*a |
| *9 | Position Control ECU Assembly | *10 | Power Seat Switch Assembly*a |
| *11 | Front Vertical Motor*b | *12 | Sliding Motor*b |
| *13 | Rear Vertical Motor*b | *14 | Reclining Motor*b |
| *15 | Power Seat Switch Assembly*b | - | - |
-
*a: For driver seat
-
*b: For front passenger seat
