POWER SEAT CONTROL SYSTEM GENERAL

  1. OUTLINE

    1. Front Power Seat

      1. A power seat control system is used for the driver seat and front passenger seat.

      2. A memory function is used in the power seat control system for the driver seat.

  2. SPECIFICATION

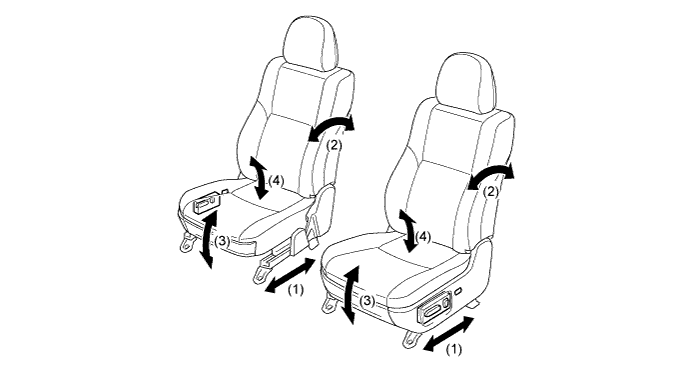

    1. The power seat system for the driver seat and front passenger seat has the following functions:

      A0039WLE01
      Adjustment Function Memory Stroke
      Driver
      (1) Seat Slide ○ 240 mm (9.4 in.)
      (2) Seat Reclining ○ 51 degrees
      (3) Front Vertical ○ 40 mm (1.6 in.)
      (4) Rear Vertical ○ 46 mm (1.8 in.)
