MONITOR SYSTEM PARTS LOCATION

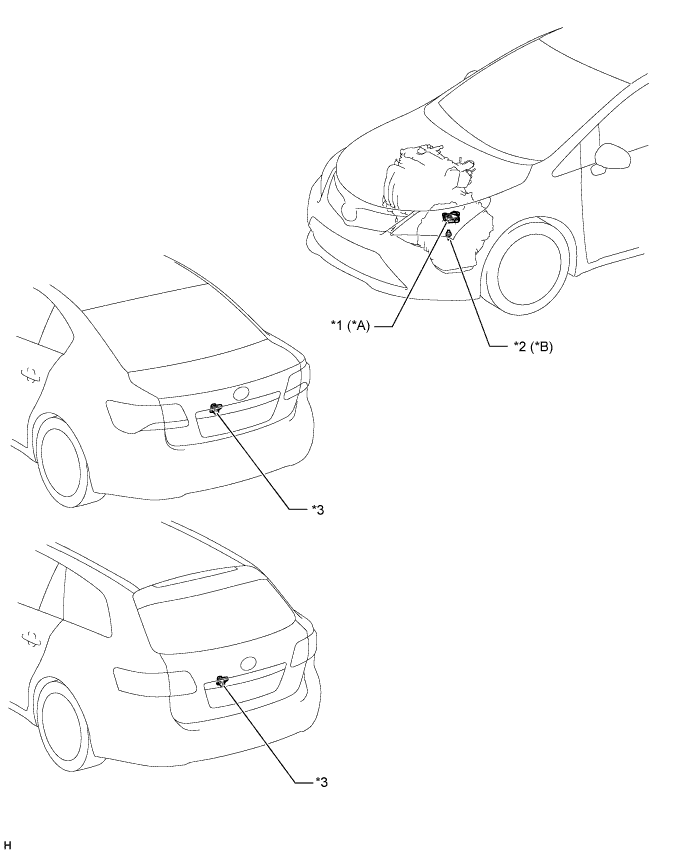

| *A | Models with Automatic Transaxle and CVT | *B | Models with Manual Transaxle |
| *1 | Park/Neutral Position Switch Assembly | *2 | Back-up Light Switch Assembly |
| *3 | Rear Television Camera Assembly | - | - |

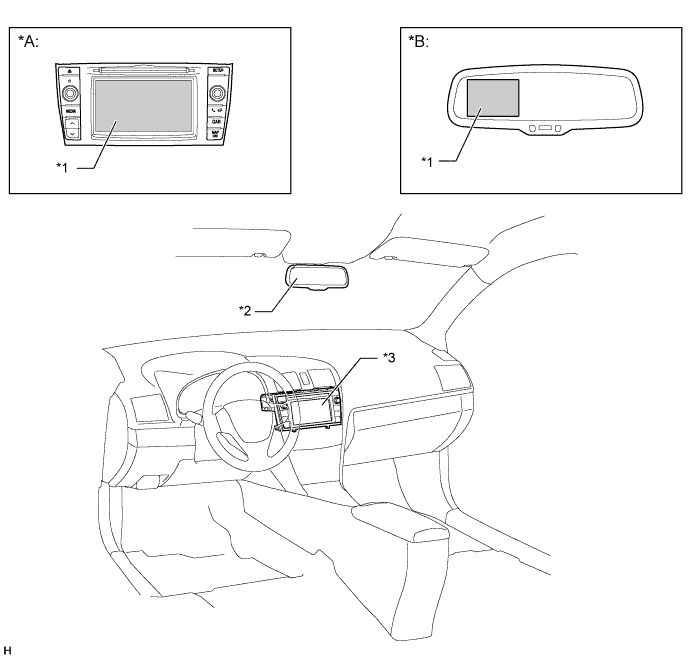

| *A | Models with Radio and Display Receiver Assembly | *B | Models without Radio and Display Receiver Assembly |
| *1 | Display | *2 | Inner Rear View Mirror Assembly |
| *3 | Radio and Display Receiver Assembly | - | - |
