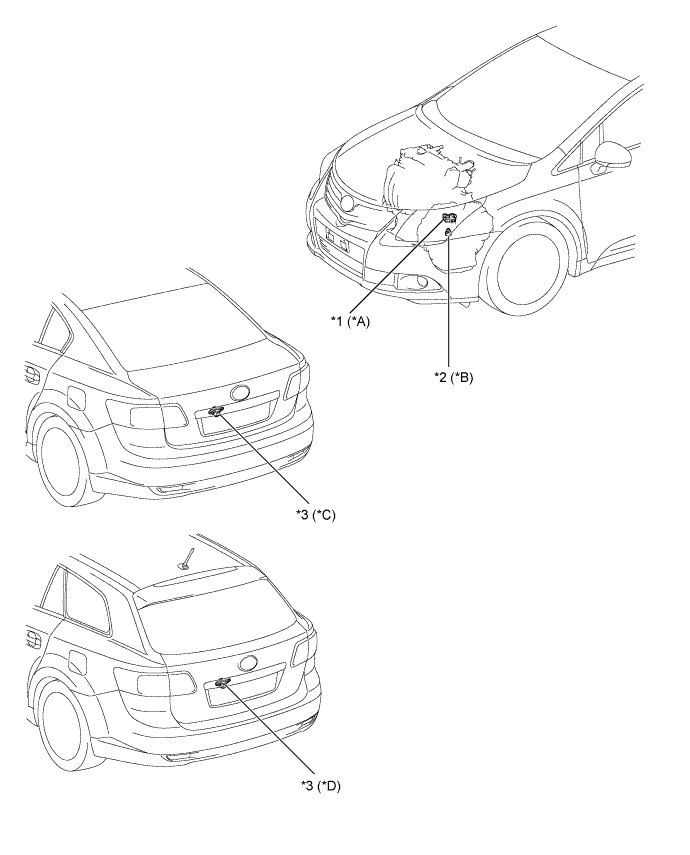

MONITOR SYSTEM PARTS LOCATION
| *A | Models with Automatic Transaxle and CVT | *B | Models with Manual Transaxle |
| *C | Sedan Models | *D | Wagon Models |
| *1 | Park/Neutral Position Switch Assembly | *2 | Back-up Light Switch Assembly |
| *3 | Rear Television Camera Assembly | - | - |

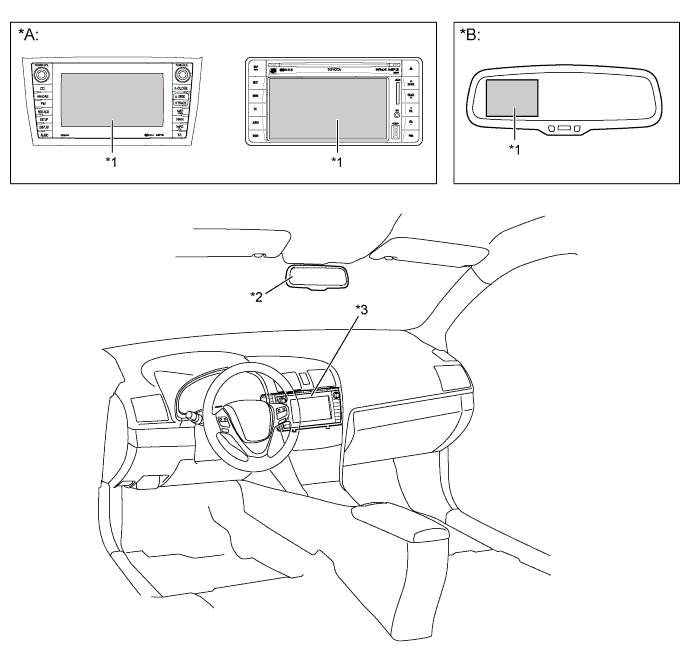

| *A | Models with Navigation System | *B | Models without Navigation System |
| *1 | Display | *2 | Inner Rear View Mirror |
| *3 | Navigation Receiver Assembly | - | - |
