AUDIO AND VISUAL SYSTEM DETAILS

  1. FUNCTION OF MAIN COMPONENTS

    Function Component
    Audio Head Unit Operates the respective functions in accordance with the signals from the switches or a voice command.
    Microphone Assembly Transmits the voice input signal to the audio head unit.
    Steering Pad Switch Transmits the operation signals from the switches to the audio head unit.

  2. FUNCTION

    1. Bluetooth Audio System

      1. The functions of the Bluetooth audio system that can be used vary with the version of the Audio/Video Remote Control Profile (AVRCP) supported by the Bluetooth audio player that is being used.

        Function Outline Audio/Video Remote Control Profile (AVRCP)
        Version 1.0 or higher, Version 1.3 or lower Version 1.3 or higher
        Play Starts playing the music. ● ●
        Stop Stops playing the music. ● ●
        Pause Pauses the music. ● ●
        Track Up/Down Changes the track. ● ●
        Fast Up/Down Fast-forwards or reverses. ● ●
        Album Up/Down Changes the album. - ●
        Repeat (Single Repeat) Repeats the selected music. - ●
        Random (All Track Random) Plays all the music in the portable audio device at random. - ●
        Scan (All Track Scan) Scans all the music in the portable audio device. - ●
        Music Information Shows track number, play time, track name, artist name, and album name. - ●
        Remaining Battery Level Shows the remaining battery level of the Bluetooth audio player. - ●

        Tech Tips

        ●: Usable

        -: Unusable

      2. Other functions are as follows:

        Function Outline
        Set Bluetooth Audio Player Registering a Bluetooth Audio Player In order to use Bluetooth audio system of a Bluetooth audio player, it is necessary to register it in the audio head unit. Once a Bluetooth audio player is registered, the Bluetooth audio system becomes available automatically. The user can register up to 2 Bluetooth audio players.
        Deleting a Bluetooth Audio Player The user can delete a Bluetooth audio player.
        Connecting a Bluetooth Audio Player Enables the user to select whether to connect to the Bluetooth audio player automatically or manually. If the Bluetooth audio player has been registered and the automatic connection is enabled, the Bluetooth audio player will be connected automatically.
        Change Settings of Bluetooth Audio Selecting a Bluetooth Audio Player If the user has registered a second Bluetooth audio player, either one can be selected for connection.
        Displaying Bluetooth Audio Player The user can view the information of the Bluetooth audio player on the system.
        Changing the Connection Method Enables the user to select the connection method. With this function, the user determines whether to make a connection from the audio head unit to the Bluetooth audio player or from the Bluetooth audio player to the audio head unit.
        Displaying the Bluetooth Audio Setting The user can see the Bluetooth audio information settings on the system.
        Changing the Device Name or Passcode The user can change a device name or a passcode.
        Initializing the Bluetooth audio settings The user initializes the settings.

    2. Bluetooth Hands-free System

      1. The Bluetooth hands-free system has the functions as following table:

        Function Outline Audio Head Unit
        *1 *2 *3
        Call with Bluetooth Phone By Dial The user can call by inputting a telephone number. ● ● ●
        By Phonebook The user can call by using the phonebook data that has been transferred from the user's Bluetooth phone. ● ● ●
        By Call History Dialed Number The user can call by selecting a previously dialed number. The system remembers up to 5 (*1) or 10 (*2) dialed numbers. If more than 5 (*1) or 10 (*2) numbers have been dialed, the oldest number will no longer be remembered. ● ● ●
        Call with Bluetooth Phone By Call History Received Call The user can call by selecting the telephone number of a received call. When a call is received, the system will remember the last 5 (*1) or 10 (*2) numbers. If more than 5 (*1) or 10 (*2) calls have been received, the oldest number will no longer be remembered. ● ● ●
        Missed Call The user can call by selecting the telephone number of a missed call. The system remembers up to 10 missed call numbers. If more than 10 calls have been missed, the oldest number will no longer be remembered. - - ●
        All Call History The user can call by selecting the telephone number from all call history. However, the user can any use the last 5 numbers while driving. - - ●
        By Speed Dial The user can call by using registered telephone numbers selected from the phonebook, dialed numbers and received calls. ● ● ●
        By Voice Recognition Dialing by Name The user can call by giving a voice tag and dialing a registered phone number. ● ● ●
        Dialing by Phone Number The user can call by giving a desired number and dialing. - - ●
        Dialing by Call History The user can call by giving a number of call histories and dialing a registered phone number. - - ●
        By Point Of Interest (POI) Call The user can call by operating off hook button when a phone number and an off hook button is displayed on the screen of the navigation system. - ● ●
        Receive with Bluetooth Phone When a call is received, the receive screen is displayed with a ring tone. ● ● ●
        Talk on Bluetooth Phone While the user is talking on the phone, the talking screen is displayed. ● ● ●

        Interrupt call:

        While talking on the phone, this screen is displayed if the call is interrupted by a third party. At this time, the user can push the off-hook switch to start talking with the other party or push the on-hook switch to refuse the call.

        • Some phones may release all calls.

        • If a Bluetooth phone does not support interrupt call and Hands-Free Profile (HFP) version 1.5, this function is not available.

        		 - - ●

        Tone sending:

        The user can send a tone to operate an answering machine or use a telephone service for example in a bank.

        		 - ● ●
        Change Settings of Bluetooth Phone Registering Speed Dial The user can register the desired telephone number from the phonebook, dialed numbers or received calls. ● ● ●
        Editing Speed Dial The user can edit the speed dial. - - ●
        Deleting Speed Dial The user can delete the speed dials individually or all at once. ● ● ●
        Registering Speed Tone The user can register desired tone numbers. - ● -
        Editing Speed Tone The user can edit the speed tone. - ● -
        Deleting Speed Tone The user can delete the speed dials individually or all at once. - ● -
        Setting Volume The user can set the volume. ● ● ●

        Automatic volume setting for high speed:

        • When the speed is 80 km/h (50 mph) or more, the volume automatically increases.*1

        • The user can set the volume one step up when the speed is 80 km/h (50 mph) or more.*2, 3

        		 ● ● ●
        Setting Volume

        Initializing the settings:

        The user can initialize the settings.

        		 ● ● ●
        Setting Screen

        Receiving call display:

        The user can select the method of the receiving call display.

        		 - ● ●

        Bluetooth connection status at start up:

        When the user turns the ignition switch (engine switch*4) to ACC or ON and the Bluetooth is automatically connected, the connection check is displayed.

        		 - ● ●

        Initializing the settings:

        The user can initialize the settings.

        		 - ● ●

        Auto answer:

        When a call is received, the display automatically changes to the talking screen and the user can start to talk on the phone (without touching any switches) after a preset time.

        		 - ● -
        Change Settings of Bluetooth Phone Setting Phonebook

        Transferring a telephone number:

        The user can transfer the telephone numbers from the registered Bluetooth phone to the system.

        		 ● ● ●

        Registering the phonebook data:

        The user can register the phonebook data.

        		 ● ● ●

        Editing the name:

        When the user does not input the name, the number is displayed.

        		 ● ● ●

        Editing a phone number:

        • The user can register a phone number in "TEL1" and "TEL2" separately. Up to 2 numbers per phonebook entry can be registered.*2

        • The user can register a phone number in "Phone#1", "Phone#2" and "Phone#3" separately. Up to 3 numbers per phonebook entry can be registered.*3

        		 - ● ●

        Setting a voice tag:

        The user can set a voice tag.

        		 ● ● ●

        Adding data to the phonebook:

        The user can add data to the phonebook.

        		 - ● ●

        Editing the phonebook data:

        The user can edit the registered data.

        		 - ● ●

        Deleting the phonebook data:

        • The user can delete the data individually.

        • The user can delete the data all at once.*2, 3

        		 ● ● ●

        Deleting the call history:

        • The user can delete the log data individually.

        • The user can delete the log data all at once.*2, 3

        		 ● ● ●

        Selecting an icon:

        The user can select the desired icon.

        		 - ● ●

        Selecting the group:

        The user can set a group for a contact. It will then be easier for the user to find this contact when needed, by using the grouping display.

        		 - ● -

        Registering a group name:

        The user can register group name.

        		 - ● -

        Editing a group name:

        The user can input the name with the software keyboard.

        		 - ● -

        Deleting a group name:

        The user can delete the group names individually or all at once.

        		 - ● -
        Setting Security

        Setting the security code:

        The user can set and change the security code.

        		 ● ● -

        Setting the passcode:

        A passcode can be set up on every Bluetooth phone to be registered.

        		 - ● ●

        Phone book lock:

        The user sets the phonebook lock.

        		 ● ● ●

        Initializing the settings:

        The user can initialize the settings.

        		 ● ● ●
        Set Bluetooth Phone Enter Bluetooth Phone In order to use the hands-free function of a Bluetooth phone, it is necessary to register it in the audio head unit. Once a phone is registered, the hands-free function becomes available automatically. ● ● ●
        Selecting Bluetooth Phone

        When 2 or more registered Bluetooth phones are in the cabin, it is necessary to select which phone to use to prevent the lines from being crossed. Only the selected phone is available for use as a hands-free phone.

        • The phone registered last is automatically selected.*1, 2

        • This system will try to connect sequentially to the Bluetooth phones, starting with the one with the most recent use history. Then, it connects to the first Bluetooth phone that is available.*3

        		 - ● ●
        Setting Automatic Connection The user can set the automatic connection on/off. - ● ●
        Indicate and Change Bluetooth Information The user can set, change and initialize the information of the Bluetooth phone displayed on the screen. ● ● ●
        Deleting Bluetooth Phone A registered Bluetooth phone can be deleted from the audio head unit. ● ● ●

        Tech Tips

        ●: Available

        -: Not Available

        *1: Radio receiver assembly

        *2: DVD navigation receiver assembly

        *3: HDD navigation receiver assembly

        *4: Models with entry and start system

  3. CONSTRUCTION

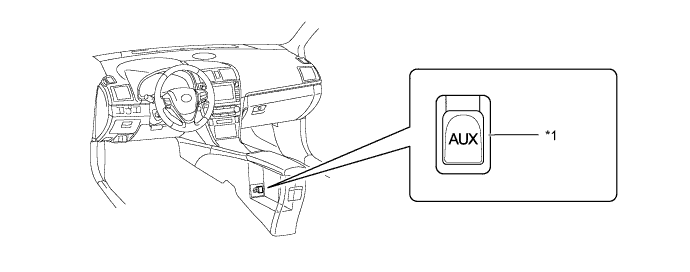

    1. Stereo Jack Adapter Assembly

      1. The stereo jack adapter assembly is located inside the console box.

        A0076U2E01
        Text in Illustration
        *1 Stereo Jack Adaptor Assembly - -

    2. Steering Pad Switch

      1. Frequently used switches are located on the steering pad for easy use.

      2. The steering pad switches provided on the steering pad may vary in accordance with optional equipment, as indicated in the table below:

        Item Switch
        Audio

        • Volume +/-

        • Seek Up/Down

        • MODE
        Telephone

        • On Hook

        • Off Hook
        Voice Recognition

        • Voice
        Multi-information Display

        • DISP

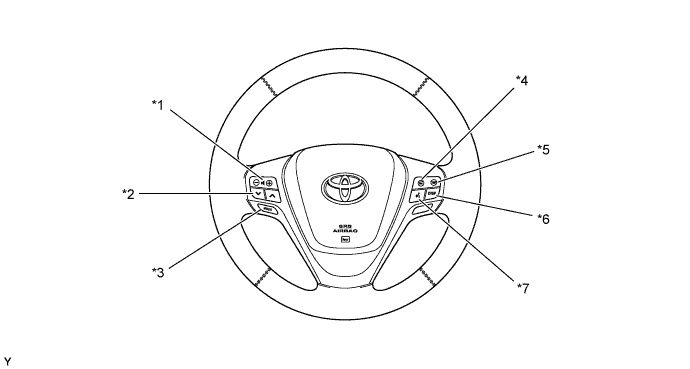

        A0076N6E01
        Text in Illustration (Models with Bluetooth Hands-free System)
        *1 Volume +/- Switch *2 Seek Up/Down Switch
        *3 MODE Switch *4 Off Hook Switch
        *5 On Hook Switch *6 DISP Switch
        *7 Voice Switch - -

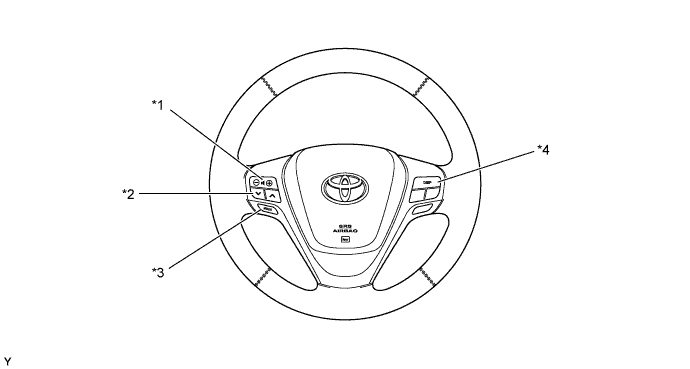

        A0076SUE01
        Text in Illustration (Models without Bluetooth Hands-free System)
        *1 Volume +/- Switch *2 Seek Up/Down Switch
        *3 MODE Switch *4 DISP Switch
