AUDIO AND VISUAL SYSTEM PARTS LOCATION

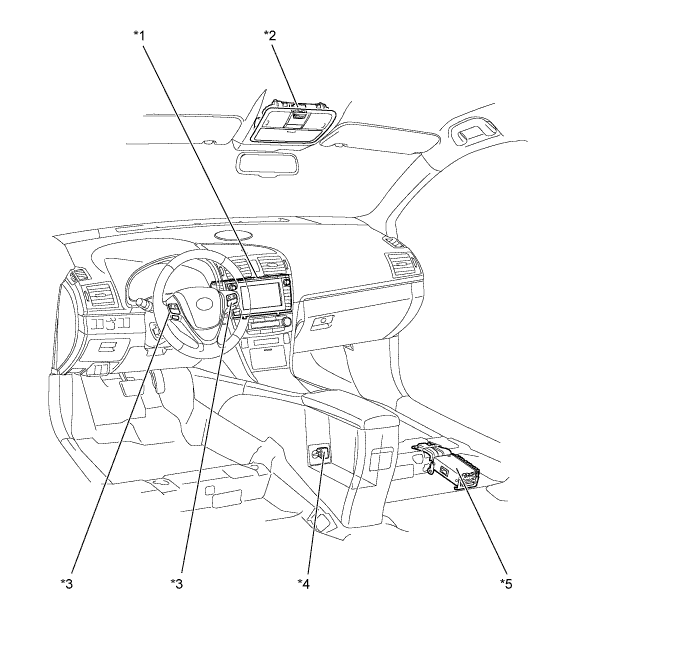

| *1 | Audio Head Unit | *2 | Overhead Console - Microphone Assembly*a |
| *3 | Steering Pad Switch | *4 | Stereo Jack Adapter Assembly |
| *5 | Stereo Component Amplifier Assembly*b | - | - |
-
*a: Models with Bluetooth hands-free system
-
*b: Models with 11-speaker system
| *1 | Rear Tweeter LH | *2 | Print Antenna |
| *3 | Amplifier Antenna Assembly | *4 | Rear Speaker LH |
| *5 | Rear Tweeter RH | *6 | Rear Speaker RH |
| *7 | Roof Antenna Pole Sub-assembly | - | - |

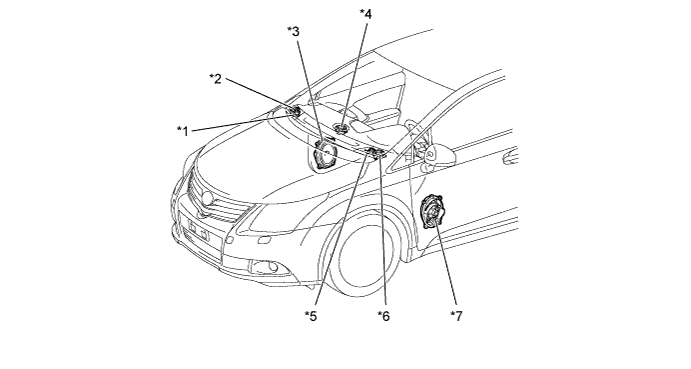

| *1 | Front Tweeter RH | *2 | Front Squawker RH |
| *3 | Front Woofer RH | *4 | Center Speaker |
| *5 | Front Tweeter LH | *6 | Front Squawker LH |
| *7 | Front Woofer LH | - | - |

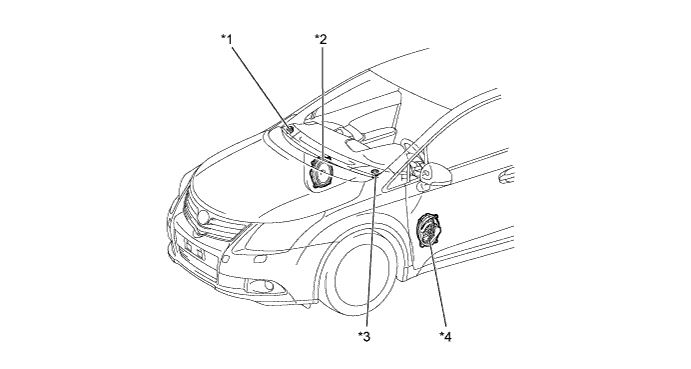

| *1 | Front Tweeter RH | *2 | Front Speaker RH |
| *3 | Front Tweeter LH | *4 | Front Speaker LH |
