POWER STEERING SYSTEM PARTS LOCATION

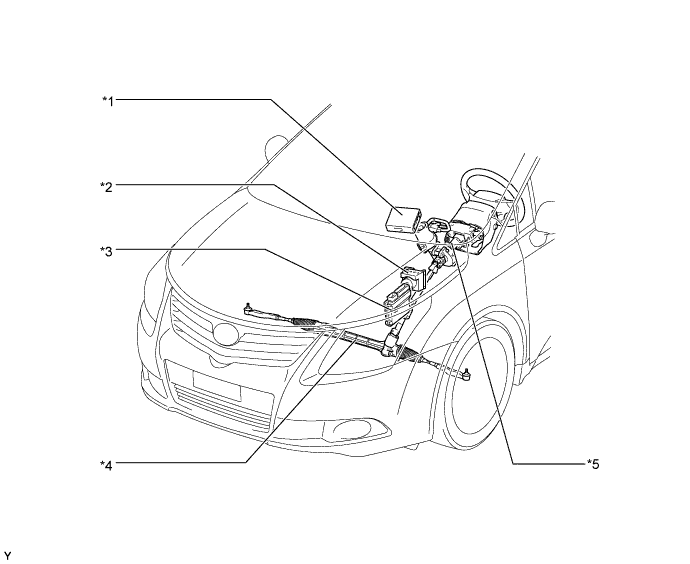

A0076AKE01
Text in Illustration (Models with Manual Tilt and Telescopic Mechanism)
*1 Power Steering ECU Assembly *2 Skid Control ECU
*3 ECM *4 Steering Gear Assembly
*5

Steering Column Assembly

- Power Steering Motor

- Reduction Mechanism

- Power Steering Torque Sensor

 - -

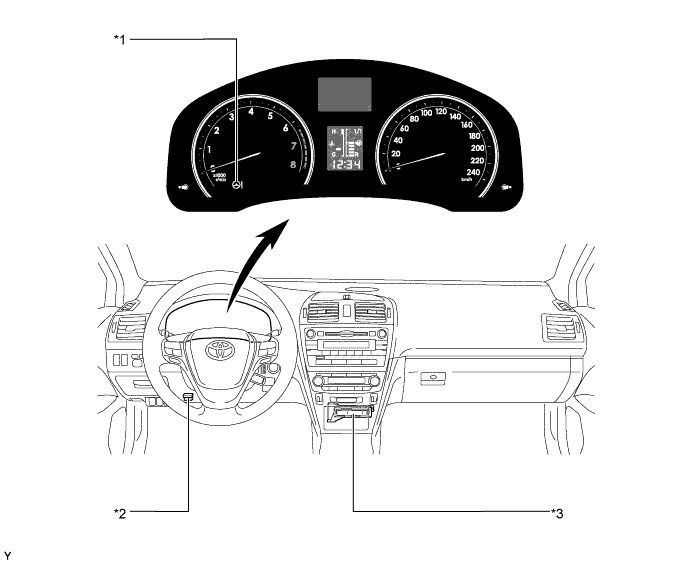

A0076FJE01
Text in Illustration
*1 Power Steering Warning Light *2 DLC3
*3 Air Conditioning Amplifier Assembly - -
