ELECTRIC PARKING BRAKE SYSTEM PARTS LOCATION

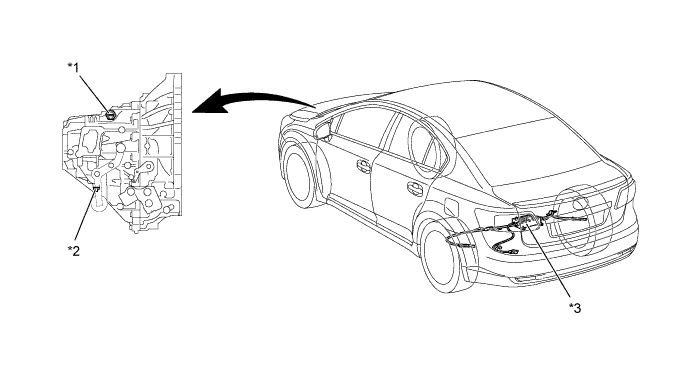

| *1 | Back-up Light Switch Assembly (Models with Manual Transaxle) | *2 | Park/Neutral Position Switch Assembly (Models with Manual Transaxle) |
| *3 | Parking Brake with Bracket Actuator Assembly - Motor - Tension Sensor - Stroke Sensor - Emergency Release Cable - Electric Parking Brake ECU - G Sensor (Models without VSC) |
- | - |

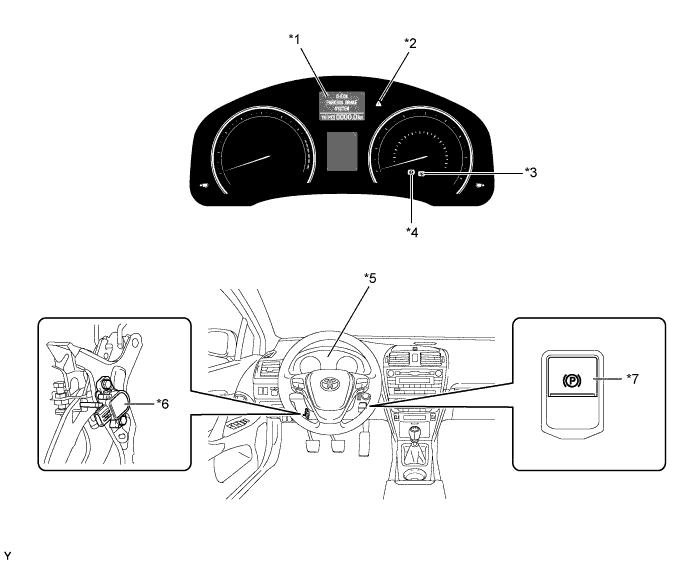

| *1 | Multi-information Display | *2 | Master Warning Light |
| *3 | PARK Warning Light | *4 | Brake System Warning Light (Yellow Indicator) |
| *5 | Combination Meter Assembly - Multi Buzzer |
*6 | Clutch (Brake) Pedal Stroke Sensor Assembly (Models with Manual Transaxle) |
| *7 | Electric Parking Brake Switch Assembly | - | - |
