BRAKE SYSTEM GENERAL

  1. OUTLINE

    1. A plunger type master cylinder is used.

    2. A single type brake booster is used.

    3. A brake assist mechanism is integrated into the brake booster for models without VSC.

  2. SPECIFICATION

    Master Cylinder Type Tandem (Portless + Portless)
    Diameter 23.81 mm (0.94 in.)
    Manufacturer BOSCH
    Brake Booster Type Single
    Size 10 in.
    Manufacturer BOSCH

  3. MAIN FEATURES

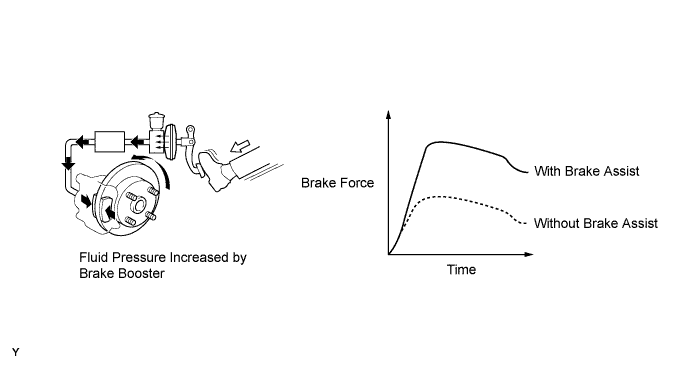

    1. Mechanical Type Brake Assist

      1. The mechanical type brake assist uses the brake assist mechanism in the brake booster to mechanically activate the brake booster function in order to increase the brake force.

      2. The primary purpose of the brake assist is to provide an auxiliary brake force to assist the driver who cannot generate a large brake force during emergency braking, thus helping draw the vehicle's brake performance.

        A0076P7E01
