AUDIO AND VISUAL SYSTEM GENERAL

OUTLINE

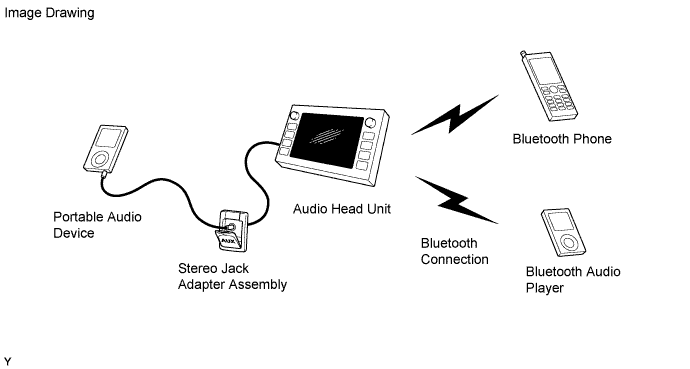

1. Audio Head Unit

   1. 4 types of radio receiver assemblies and 2 types of navigation receiver assemblies are available for the audio head unit. The navigation receiver assemblies are available as a Hard Disc Drive (HDD) type or a Digital Versatile Disc (DVD) type.

   2. The audio head unit has been made Digital Audio Broadcast (DAB) ready through the addition of an accessory external tuner.

   3. The speaker systems are available with 6 speakers and 11 speakers, respectively.

2. "Bluetooth" Audio System

   1. The Bluetooth audio system enables the users to listen to the music stored in a Bluetooth-compliant portable audio device (Bluetooth audio player) through a Bluetooth connection.

   2. The Bluetooth audio system can operate a Bluetooth audio player through the audio head unit.

3. "Bluetooth" Hands-free System

   1. The Bluetooth hands-free system enables drivers to place or receive phone calls using a cellular phone without releasing their hands from the steering wheel.

   2. For safety, some functions of the Bluetooth hands-free system may not be selectable while the vehicle is being driven.

      "Bluetooth" is a trademark owned by Bluetooth SIG, Inc.

4. Stereo Jack Adapter Assembly

   1. A stereo jack adapter assembly is used by the audio system as an input terminal for portable audio devices.

5. Steering Pad Switch

   1. Steering pad switches that support the respective equipment are available.



SPECIFICATION

1. Audio Head Unit

   Audio Head Unit	Design	Specification
   Radio Receiver Assembly		AM/FM Tuner CD Player CD-TEXT Display Function MP3 and WMA Playback Function 6-speaker System Manufacturer: Panasonic
   		AM/FM Tuner CD Player CD-TEXT Display Function MP3 and WMA Playback Function DAB Ready 6-speaker System Manufacturer: Panasonic
   		AM/FM Tuner CD Player CD-TEXT Display Function MP3 and WMA Playback Function DAB Ready Bluetooth Hands-free System 6-speaker System Manufacturer: Panasonic
   		AM/FM Tuner In-dash 6-CD Changer CD-TEXT Display Function MP3 and WMA Playback Function DAB Ready Bluetooth Hands-free System 11-speaker System Manufacturer: Panasonic
   DVD Navigation Receiver Assembly		AM/FM Tuner CD Player CD-TEXT Display Function MP3 and WMA Playback Function DAB Ready Bluetooth Audio System Bluetooth Hands-free System 6-speaker System Manufacturer: AISIN AW
   HDD Navigation Receiver Assembly		AM/FM Tuner CD Player CD-TEXT Display Function MP3 and WMA Playback Function Sound Library Function DAB Ready Bluetooth Audio System Bluetooth Hands-free System 11-speaker System Manufacturer: AISIN AW

2. 6-speaker System



   Location	Speaker Type	Caliber	Impedance	Input Range
   *1	Front Tweeter x 2	25 mm (1.0 in.)	4 Ω	20 W
   *2	Front Speaker x 2	150 mm x 230 mm (6.0 in. x 9.0 in.)	4 Ω	20 W
   *3	Rear Speaker x 2	160 mm (6.3 in.)	4 Ω	20 W

3. 11-speaker System



   Location	Speaker Type	Caliber	Impedance	Input Range
   *1	Center Speaker x 1	80 mm (3.1 in.)	40 Ω	5 W
   *2	Front Tweeter x 2	25 mm (1.0 in.)	4 Ω	20 W
   *3	Front Squawker x 2	50 mm (2.0 in.)	8 Ω	10 W
   *4	Front Woofer x 2	150 mm x 230 mm (6.0 in. x 9.0 in.)	2 Ω	30 W
   *5	Rear Tweeter x 2	25 mm (1.0 in.)	4 Ω	20 W
   *6	Rear Speaker x 2	160 mm (6.3 in.)	4 Ω	20 W

4. Bluetooth Hands-free System

   1. The specifications for the Bluetooth hands-free system vary with the audio head unit that is used. The details are as follows:

      Function			Radio Receiver Assembly	DVD Navigation Receiver Assembly	HDD Navigation Receiver Assembly
      Call with Bluetooth Phone	By Dial		●	●	●
      	By Phonebook		● (20 Cases)	● (1000 Cases)	● (1000 Cases)
      	By Call History	Dialed Number	● (5 Cases)	● (5 Cases)	● (10 Cases)
      		Received Call	● (5 Cases)	● (5 Cases)	● (10 Cases)
      		Missed Call	-	-	● (10 Cases)
      		All Call History	-	-	●
      	By Speed Dial*1		● (6 Cases)	● (17 Cases)	● (18 Cases)
      	By Voice Recognition*1	Dialing by Name	●	●	●
      		Dialing by Phone Number	-	-	●
      		Dialing by Call History	-	-	●*2
      	By Point Of Interest (POI) Call		-	●	●
      Receive with Bluetooth Phone/Talk on Bluetooth Phone	Receiving Call*1	Received Manually	●	●	●
      		Received Automatically	-	●	-
      		Received Refusal	●	●	●
      	Interrupt Call*1		-	-	●
      	Tone Sending	By Dial	-	●	●
      		By Registered Number	-	-	●
      		By Speed Tone	-	● (6 Cases)	-
      Recognition/Connection	Registering Bluetooth Phone		● (6 Bluetooth Phones)	● (6 Bluetooth Phones)	● (4 Bluetooth Phones)
      	Connecting Bluetooth Phone	Connected Automatically	●	●	●
      		Connected Manually	●	●	●
      Setting	Setting Automatic Connection		-	●	●

      Tech Tips

      ●: Available

      -: Not Available

      *1: Can be performed while driving

      *2: The last 5 entries of call history can be used while driving.

MAIN FEATURES

1. HDD Navigation Receiver Assembly

   1. A sound library function is used. This function stores the music of the CD that is inserted in the CD player onto the HDD. Data for the stored music, such as the album title and artist name can be acquired from the "Gracenote CD DataBase (CDDB)". Moreover, the album title and artist name can be edited by the user.

      "Gracenote" and "CDDB" is a trademark owned by Gracenote.

   2. A function that automatically updates the FM station list to used.

PRECAUTION

1. Some of the functions of a system that uses a Bluetooth connection may not operate, depending on the Bluetooth specification or profile of the Bluetooth phone or Bluetooth audio player that is being used. The Bluetooth specifications and profiles required for the operation are as follows:

   Specification/Profile	Item	Bluetooth Hands-free System	Bluetooth Audio System
   Bluetooth Specification	Version 1.1 or higher	Required	Required
   	Version 2.0 + EDR or higher	Recommended	Recommended
   Profile	Hands-Free Profile (HFP) Version 1.0 or more	Required	-
   	Hands-Free Profile (HFP) Version 1.5 or higher	Recommended	-
   	Object Push Profile (OPP) Version 1.1 or higher	Required	-
   	PhoneBook Access Profile (PBAP) Version 1.0 or higher*	Recommended	-
   	Advanced Audio Distribution Profile (A2DP) Version 1.0 or higher	-	Required
   	Audio/Video Remote Control Profile (AVRCP) Version 1.0 or higher	-	Required
   	Audio/Video Remote Control Profile (AVRCP) Version 1.3 or higher	-	Recommended

   Tech Tips

   -: Not Available

   *: Models with HDD navigation receiver assembly

2. The operation of the interrupt call function of the Bluetooth hands-free system may vary with the Bluetooth phone or the telephone company that is used.
