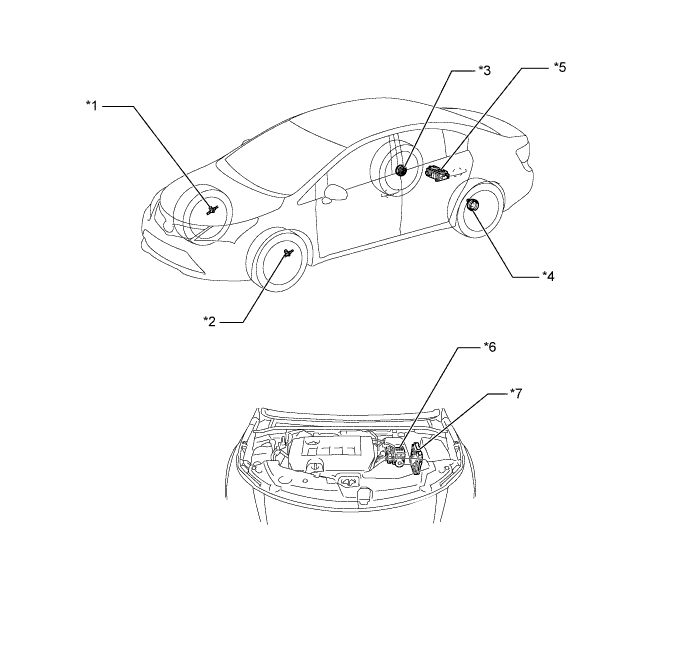

BRAKE CONTROL SYSTEM PARTS LOCATION
| *1 | Front Speed Sensor RH | *2 | Front Speed Sensor LH |
| *3 | Rear Speed Sensor RH | *4 | Rear Speed Sensor LH |
| *5 | Parking Brake with Bracket Actuator Assembly - Electric Parking Brake ECU |
*6 | Brake Actuator Assembly - Skid Control ECU - Master Cylinder Pressure Sensor |
| *7 | ECM | - | - |

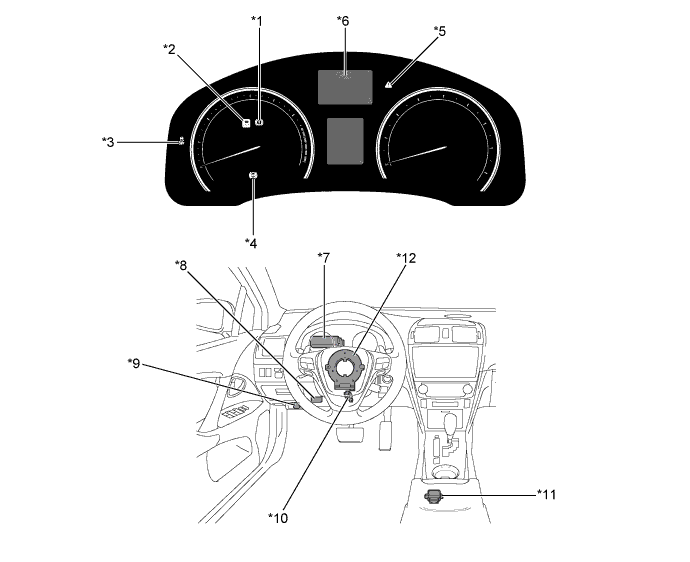

| *1 | Brake System Warning Light (Red Indicator) | *2 | Slip Indicator Light |
| *3 | VSC OFF Indicator Light | *4 | ABS Warning Light |
| *5 | Master Warning Light | *6 | Multi-information Display |
| *7 | Power Steering ECU Assembly | *8 | DLC3 |
| *9 | VSC OFF Switch | *10 | Stop Light Switch Assembly |
| *11 | Yaw Rate Sensor (Built-in Deceleration Sensor) | *12 | Steering Angle Sensor |
