BRAKE CONTROL SYSTEM PARTS LOCATION

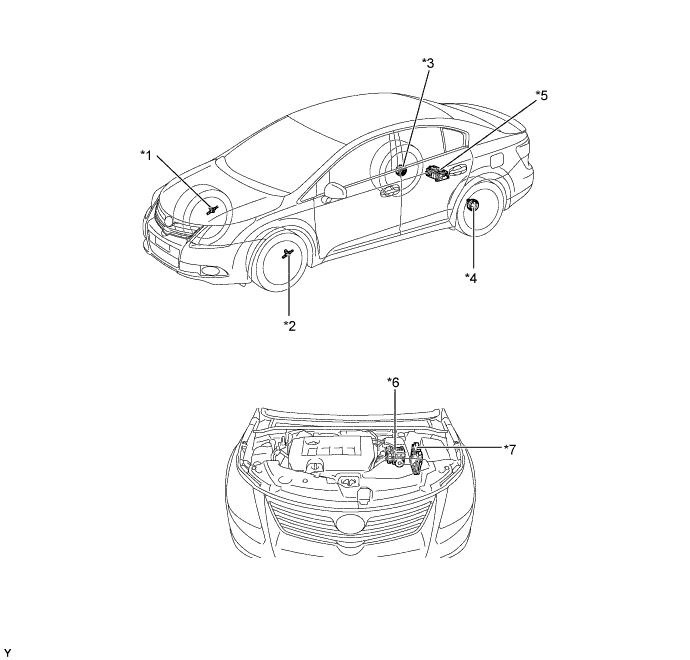

| *1 | Front Speed Sensor RH | *2 | Front Speed Sensor LH |
| *3 | Rear Speed Sensor RH | *4 | Rear Speed Sensor LH |
| *5 | Parking Brake with Bracket Actuator Assembly - Electric Parking Brake ECU |
*6 | Brake Actuator Assembly - Skid Control ECU - Master Cylinder Pressure Sensor (Models with VSC) |
| *7 | ECM | - | - |

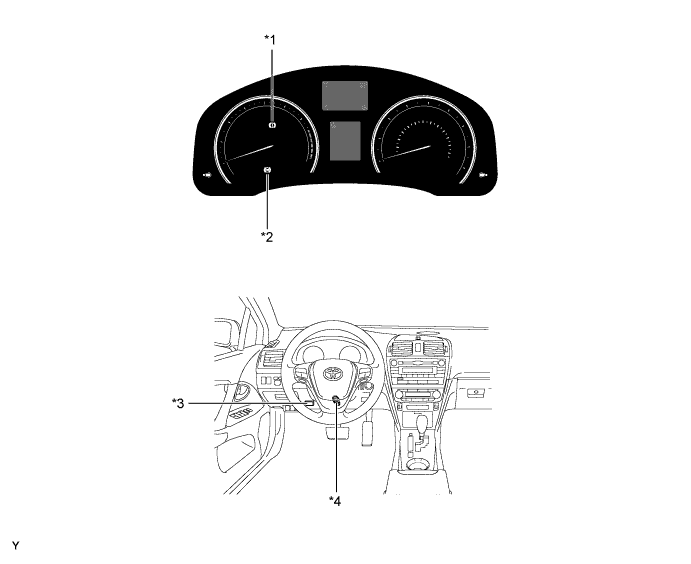

| *1 | Brake System Warning Light (Red Indicator) | *2 | ABS Warning Light |
| *3 | DLC3 | *4 | Stop Light Switch Assembly |

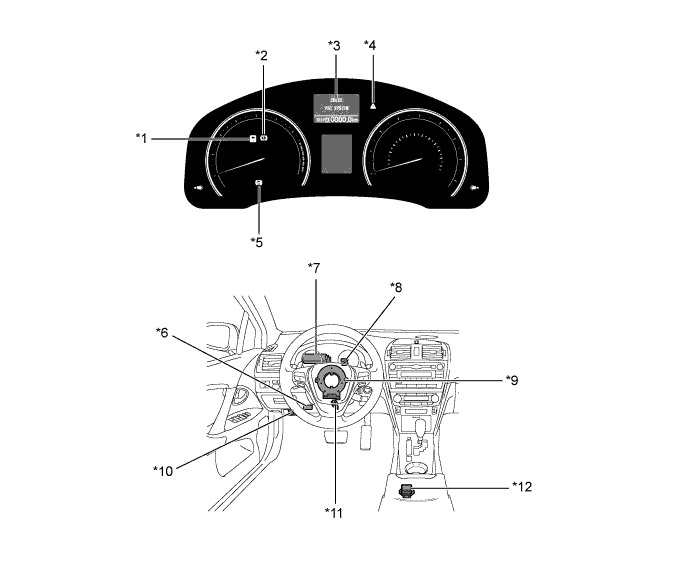

| *1 | Slip Indicator Light | *2 | Brake System Warning Light (Red Indicator) |
| *3 | Multi-information Display | *4 | Master Warning Light |
| *5 | ABS Warning Light | *6 | DLC3 |
| *7 | Power Steering ECU Assembly | *8 | Skid Control Buzzer Assembly |
| *9 | Steering Angle Sensor | *10 | VSC OFF Switch |
| *11 | Stop Light Switch Assembly | *12 | Yaw Rate Sensor |
