TIRE AND WHEEL TYPE SYSTEM GENERAL

  1. OUTLINE

    1. 3 sizes of tires are available.

    2. 1 type of steel disc wheel and 5 types of aluminum disc wheels are available.

    3. A compact spare tire, full size spare tire and puncture repair kit are available.

  2. SPECIFICATION

    1. Tire and Wheel

      Tire Size 205/60R16 ← ←
      Disc Wheel Size 16 x 6 1/2 J ← ←
      Disc Wheel Material Steel Aluminum ←
      Pitch Circle Diameter 114.3 mm (4.5 in.) ← ←
      Inset 39 mm (1.54 in.) ← ←
      Wheel Cap Full Wheel Cap Center Ornament ←
      Wheel Design A00DVHP A00DVEM A00DVKR
      Tire Size 215/55R17 ← 225/45R18
      Disc Wheel Size 17 x 7 J ← 18 x 7 1/2 J
      Disc Wheel Material Aluminum ← ←
      Pitch Circle Diameter 114.3 mm (4.5 in.) ← ←
      Inset 45 mm (1.77 in.) ← ←
      Wheel Cap Center Ornament ← ←
      Wheel Design A00DVFA A00DVOZ A00DVDL

    2. Puncture Repair Kit

      Repair Seal Liquid Sealant Quantity 630 ml (0.67 US qts, 0.55 Imp. qts)
      Ingredients Deproteinised NR Latex, Resin, Propylene Glycol
      Usable Ambient Temperature Range -30°C to 60°C (22°F to 140°F)
      Expiry Date Printed on Sealant Bottle
      Compressor Maximum Electricity Consumption 10 A

  3. MAIN FEATURES

    1. Puncture Repair Kit

      1. A puncture repair kit, which is used to feed repair seal liquid into a flat tire to temporarily repair the puncture, is provided. Therefore, a spare tire is no longer needed, resulting in an increase in the luggage compartment capacity.

      2. The puncture repair kit can be used in an emergency to repair a tire that has been punctured by a nail, screw and so on piercing the tread part of the tire.

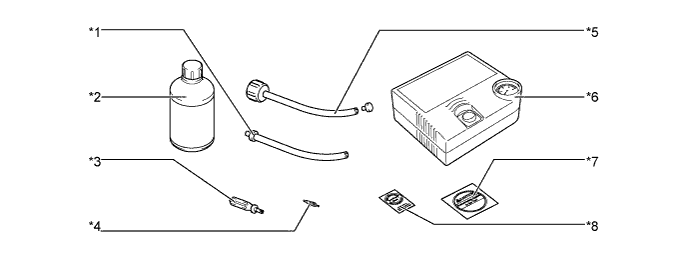

        A00DVM7E02
        Text in Illustration
        *1 Extension Hose (for Draining Sealant) *2 Sealant Bottle (Repair Seal Liquid)
        *3 Valve Remover *4 Valve Insert (Spare)
        *5 Filling Hose *6 Compressor
        *7 Sealant Applied Sticker *8 Speed Restriction Sticker
