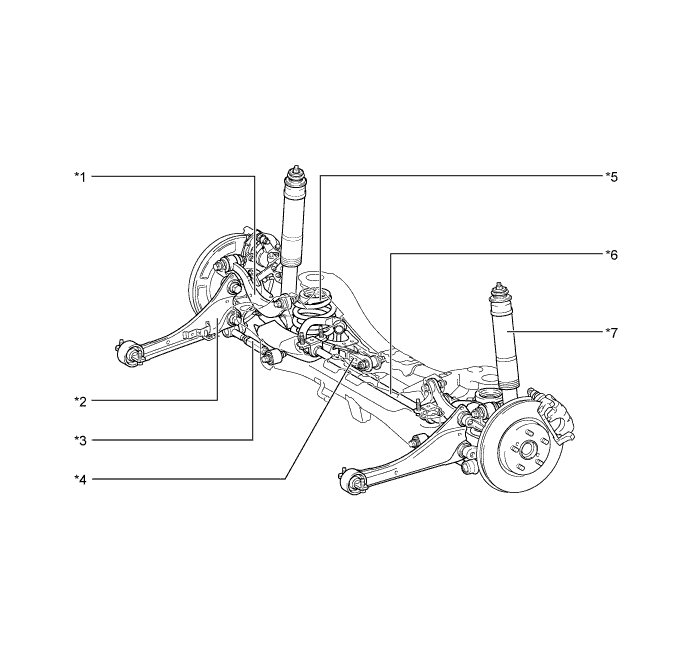

REAR SUSPENSION SYSTEM PARTS LOCATION
| *1 | Rear Upper Control Arm Assembly - Optimized characteristics |
*2 | Rear Trailing Arm Assembly - Optimized characteristics |
| *3 | Rear No. 1 Suspension Arm Assembly - Optimized characteristics |
*4 | Rear No. 2 Suspension Arm Assembly - Optimized characteristics |
| *5 | Rear Coil Spring - Optimized spring constant |
*6 | Rear Stabilizer Bar - Optimized characteristics |
| *7 | Rear Shock Absorber Assembly - Multi-leaf type linear control valve used |
- | - |
