COOLING SYSTEM DETAILS

  1. CONSTRUCTION

    1. Radiator

      1. We obtain superior cooling performance for high performance of engine by adopting cross-flow type aluminium-core-radiator.

      2. We achieved superior cooling performance and compactness by integrating transmission oil cooler with brass double tube type "with inner fin" in radiator tank.

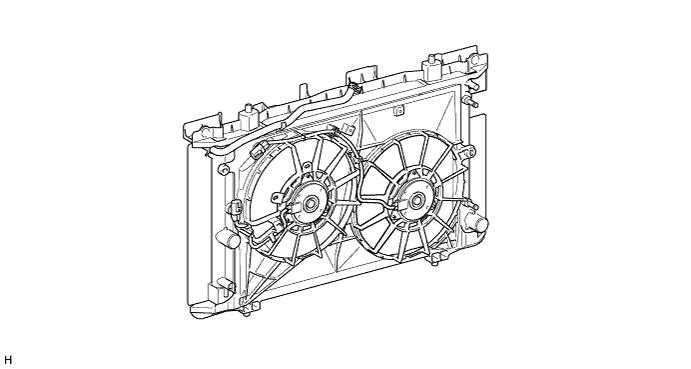

    2. Cooling Fan Assembly with Motor

      1. By turning the fan sharp, size, and motor, we realize high cooling performance and decrease noise.

      2. We developed smaller motor to decrease mass.

        A0076NL
