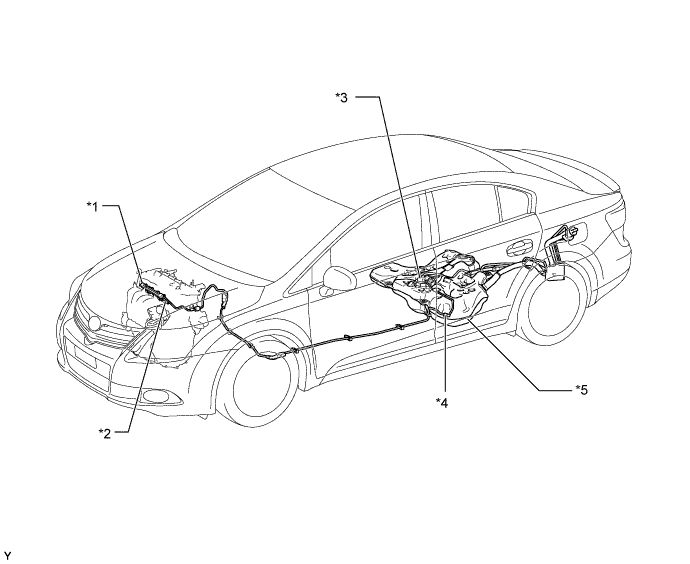

FUEL SYSTEM PARTS LOCATION
| *1 | Fuel Delivery Pipe Sub-assembly | *2 | Fuel Injector Assembly |
| *3 | Fuel Suction with Pump and Gauge Tube Assembly | *4 | Quick Connector |
| *5 | Fuel Tank Assembly | - | - |
| *1 | Fuel Delivery Pipe Sub-assembly | *2 | Fuel Injector Assembly |
| *3 | Fuel Suction with Pump and Gauge Tube Assembly | *4 | Quick Connector |
| *5 | Fuel Tank Assembly | - | - |
