FEATURES EQUIPMENT

  1. OUTLINE

    1. Entry and Start System

      1. The entry and start system mainly consists of the wireless door lock control function, engine immobiliser function, start function and entry function.

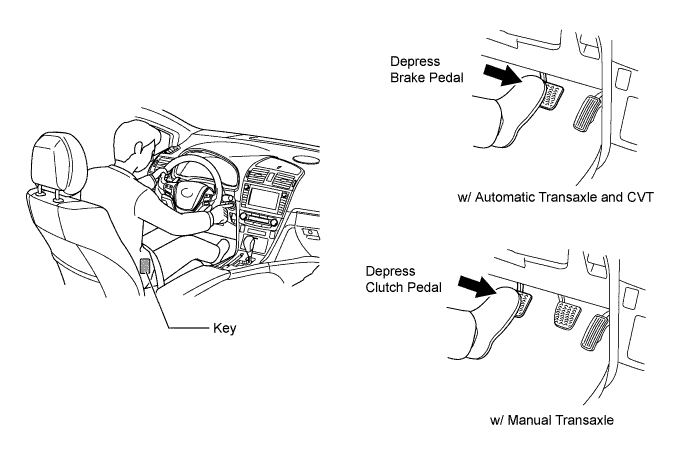

      2. The start function allows the power source mode to be switched between off, on (ACC), and on (IG). The power source can be switched by pushing the engine switch while the key is carried by the driver. In addition, when the key is carried by the driver, the driver can start the engine by pushing the engine switch with the brake pedal*1 or clutch pedal*2 depressed.

        • *1: Models with automatic transaxle and CVT

        • *2: Models with manual transaxle

        A00DV83E01

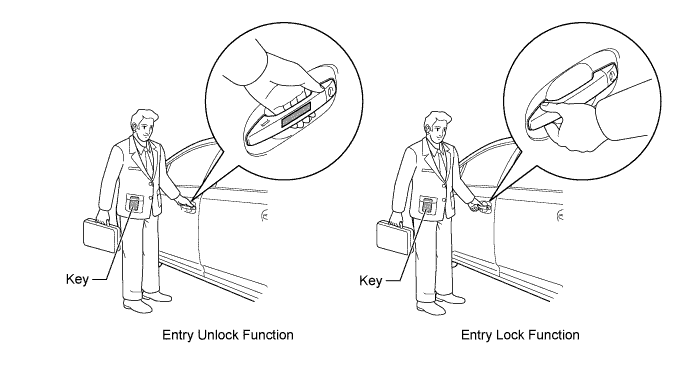

      3. For the entry function, the following functions can be operated when the driver carries the key:

        • The doors unlock if the door outside handle is gripped (entry unlock function).

        • All doors are locked by touching the lock sensor of the front outside door handle or pressing the luggage compartment door*1 or back door*2 lock switch (entry lock function).

          • *1: Sedan models

          • *2: Wagon models

        A00DVPIE01

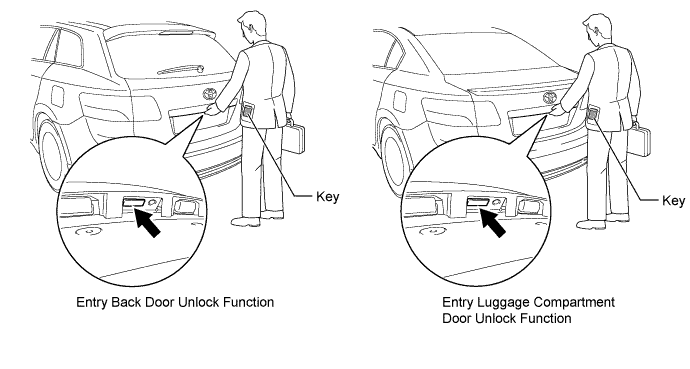

      4. The luggage compartment door*1 or back door*2 opens if the luggage compartment door opener switch*1 or back door opener switch*2 is pushed (entry luggage compartment*1 or back door*2 unlock function).

        • *1: Sedan models

        • *2: Wagon models

        A00DVOOE01

    2. Emergency Brake Signal

      1. An emergency brake signal is used. This function automatically flashes the stoplights in 3.6 Hz cycles during sudden braking, in order to alert vehicles behind and reduce the risk of an accident.

    3. Eco Driving Indicator Function

      1. The Eco Driving Indicator function informs the driver of whether the accelerator pedal is being operated in an environmentally friendly manner by illuminating the Eco Driving Indicator Light and Eco Driving Indicator Zone Display on the liquid crystal display.

    4. Rear Passengers Seat Belt Reminder Function

      1. A rear passengers seat belt reminder function is provided. When the rear seat belt is not buckled, this function shows the rear passengers seat belt reminder display and sounds a multi buzzer.

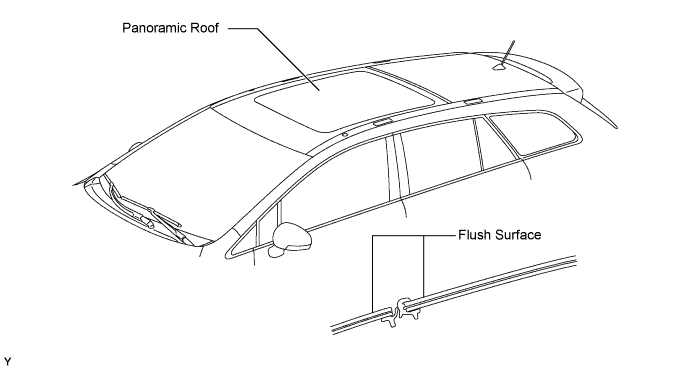

    5. Panoramic Roof

      1. A panoramic roof is provided for wagon models.

      2. The panoramic roof consists of a glazing that continues from the windshield glass to the roof in order to give a unique, open, and stylish design.

      3. A solar coating is used on the glass, thus allowing solar energy to be reflected.

        A00DVOTE01

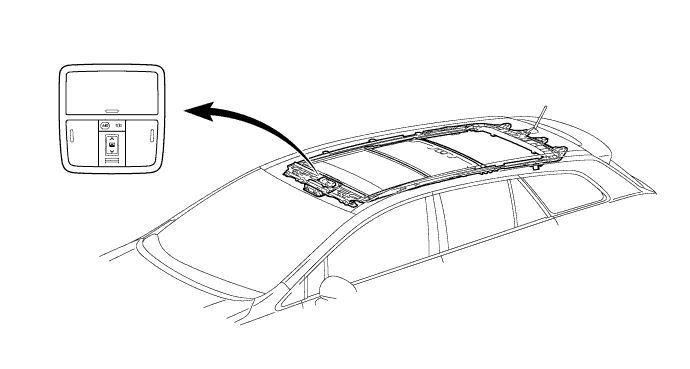

    6. Roof Sunshade System

      1. A roof sunshade system is provided for wagon models.

      2. An electrically-operated roof sunshade system blocks direct sunlight from entering through the panoramic roof in order to ensure the comfort.

        A00DVER

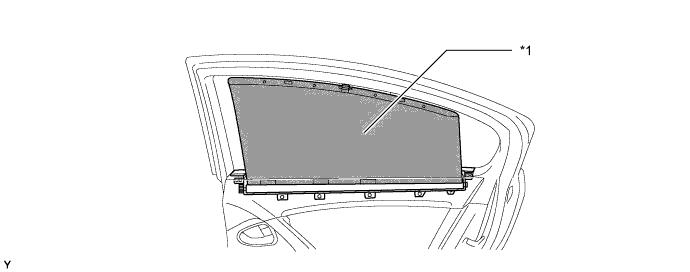

    7. Rear Door Sunshade System

      1. A manual type rear door sunshade system is provided.

      2. Rear curtain sub-assembly is stored in the rear door trim. When necessary, the sunshade can be extended to shade an area ranging from the vehicle's sides to the rear seats, thus ensuring comfort in the rear seats.

        A00DV6HE01
        Text in Illustration
        *1 Rear Curtain Sub-assembly - -

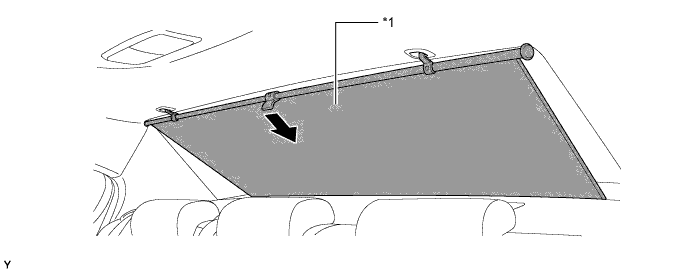

    8. Rear Sunshade System

      1. A manual type rear sunshade system is provided for sedan models.

      2. Rear window sunshade assembly is stored in the package tray trim. When necessary, the sunshade can be extended to shade an area ranging from the vehicle's rear side to the rear seats, thus ensuring comfort in the rear seats.

        A00DVKKE01
        Text in Illustration
        *1 Rear Window Sunshade Assembly - -

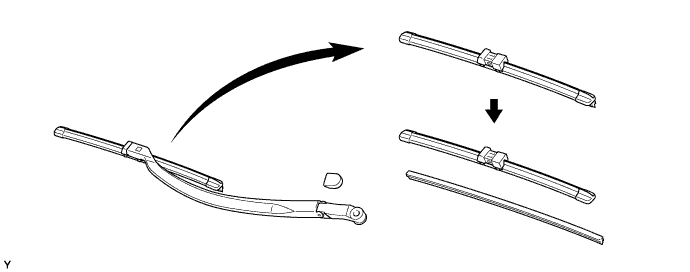

    9. Wiper Arm and Blade

      1. A flat type wiper blade is provided for the wiper blade, thus ensuring good visibility from the driver seat.

        A00DVGU

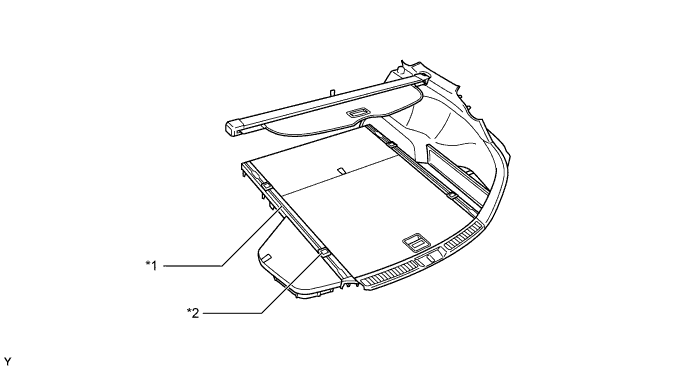

    10. Deck Rail

      1. A deck rail is provided for the luggage compartment on wagon models.

      2. A slide type hook can be installed on the deck rail and slid to the desired position.

        A00DVATE01
        Text in Illustration
        *1 Deck Rail *2 Slide Type Hook

    11. Equipment List (Models with 1ZR-FAE and 2ZR-FAE Engines)

      Exterior and Interior
      Engine Type 1ZR-FAE 2ZR-FAE
      Grade Entry SOL Entry SOL
      Bumper Colored X X X X
      Radiator Grille Colored X X X X
      Rear Spoiler Colored (for Sedan Models) OP OP OP OP
      Colored (for Wagon Models) X - X X
      Side Mudguard Colored X X X X
      Spat Front (Standard Type) + Rear X X X X
      Front (Expanded Type) + Rear OP*2 OP*2 OP*2 OP*2
      Panoramic Roof - - - OP*1
      Roof Garnish Silver X*1 X*1 X*1 X*1
      Outside Door Handle Colored X X X X
      Outside Rear View Mirror Colored X X X X
      Rear Sunshade System - OP*2 - OP*2

      Tech Tips

      X: Standard

      -: Not equipped

      OP: Option

      *1: Wagon models

      *2: Sedan models

      Chassis
      Engine Type 1ZR-FAE 2ZR-FAE
      Grade Entry SOL Entry SOL
      Tire 205/60R16 X X X X
      215/55R17 OP OP OP OP
      Disc Wheel 16 x 6 1/2 J Steel X OP X OP
      16 x 6 1/2 J Aluminum OP X OP X
      17 x 7 J Aluminum OP OP OP OP
      Brake Control System ABS and EBD X - - -
      ABS, EBD, Brake Assist, TRC, VSC and Cooperative Control with EPS OP X X X
      Steering Wheel 3-spoke Urethane with Audio and Display Switches X - X -
      3-spoke Leather with Audio and Display Switches - X - X
      3-spoke Leather with Audio, Display, Telephone and Voice Recognition Switches OP OP OP OP
      3-spoke Leather with Audio, Display, Telephone, Voice Recognition and Cruise Control Switches - - - OP*
      Column Manual Tilt and Telescopic X X X X
      Power Tilt and Power Telescopic - - - OP
      Electric Power Steering (EPS) X X X X
      Shift Knob Polyvinyl Chloride (PVC) X - X -
      Leather - X - X

      Tech Tips

      X: Standard

      -: Not equipped

      OP: Option

      *: Models with manual transaxle

      Body
      Engine Type 1ZR-FAE 2ZR-FAE
      Grade Entry SOL Entry SOL
      Seat Cover Fabric X X X X
      Leather - - - OP
      Front Manual Type X X X X
      Power Type - - - OP
      Rear One-touch Foldable 40/60 Split Type X X X X
      Seat Belt Front 3-point ELR, Pretensioner and Force Limiter X X X X
      Rear 3-point ELR x 3 X X X X

      Tech Tips

      X: Standard

      -: Not equipped

      OP: Option

      Body Electrical
      Engine Type 1ZR-FAE 2ZR-FAE
      Grade Entry SOL Entry SOL
      Headlight Halogen X X X X
      HID - OP - OP
      Intelligent AFS - OP*1 - OP*1
      Headlight Beam Level Control System Manual Type X X X X
      Automatic Type - OP*1 - OP*1
      Headlight Cleaner System OP*2 OP OP*2 OP
      Daytime Running Light System OP*2 OP*2 OP*2 OP*2
      Fog Light Front OP X OP X
      Rear X X X X
      Emergency Brake Signal With X X X X
      Without OP OP OP OP
      Automatic Light Control System With - X - X
      Without X OP X OP
      Light Automatic Turn-off System X X X X
      Illuminated Entry System X X X X
      Map Light X X X X
      Room Light X X X X
      Wiper System Front Intermittent Type with Adjustable Interval Function X OP X OP
      Raindrop Sensing Type - X - X
      Rear Intermittent Type OP*5 - OP*5 OP*5
      Windshield Deicer System OP*2 OP*2 OP*2 OP*2
      TOYOTA Parking Assist-sensor System - OP - OP
      Monitor System - - - OP
      Navigation System DVD Type with Voice Recognition Function OP OP OP OP
      HDD Type with Voice Recognition Function - - - OP
      Audio System Radio Receiver Assembly AM/FM Tuner, CD Player, 6-speaker system X X X X
      AM/FM Tuner, CD Player, Bluetooth Hands-free System, 6-speaker system - OP - OP
      AM/FM Tuner, In-dash 6-CD Changer, Bluetooth Hands-free System, 11-speaker system - - - OP
      Navigation Receiver Assembly DVD Type, AM/FM Tuner, CD Player, Bluetooth Audio System, Bluetooth Hands-free System, 6-speaker system OP OP OP OP
      HDD Type, AM/FM Tuner, CD Player, Bluetooth Audio System, Bluetooth Hands-free System, 11-speaker system - - - OP
      Without Radio 6-speaker system OP OP OP OP
      Stereo Jack Adapter Assembly With X X X X
      Without OP OP OP OP
      Air Conditioning Manual Type X - X OP*3
      Automatic Type - X - X
      Without OP OP OP OP*4
      Heater Conventional Type X X X X
      With Quick Heater Assembly OP*2 OP*2 OP*2 OP*2
      Seat Heater System OP*2 OP*2 OP*2 OP
      Cruise Control System with Speed Limiter Control - - - OP*4
      Entry and Start System - OP - OP
      Power Door Lock Control System X X X X
      Wireless Door Lock Control System X X X X
      Luggage Compartment Door Opener System X X X X
      Fuel Lid Opener System X X X X
      Roof Sunshade System - - - OP*5
      Power Window Control System Front X - X -
      Front and Rear - X - X
      Engine Immobiliser System X X X X
      Theft Deterrent System Normal - X*6 - X*6
      With Intrusion Sensor OP*7 OP*7 OP*7 OP*7
      With Intrusion Sensor and Print Pattern Type Glass Breakage Sensor - - OP*8 OP*8
      Memory System - - - OP
      Outside Rear View Mirror Electric Remote Control, Heater and Side Turn Signal Light X X X X
      Electric Remote Control, Power Retractable, Heater and Side Turn Signal Light - OP - OP
      Inside Rear View Mirror Automatic Glare-resistant EC - OP - OP
      SRS Airbag System Driver, Front Passenger, Side, Knee and Curtain Shield X X X X
      Combination Meter Optitron With Eco Driving Indicator Function - - - X*3
      Without Eco Driving Indicator Function X X X X*4

      Tech Tips

      X: Standard

      -: Not equipped

      OP: Option

      *1: Models with HID headlight system

      *2: LHD models

      *3: Models with K311 CVT

      *4: Models with manual transaxle

      *5: Wagon models

      *6: RHD models

      *7: RHD sedan models

      *8: RHD wagon models

    12. Equipment List (Models with 3ZR-FAE, 3ZR-FE and 1AZ-FE Engines)

      Exterior and Interior
      Engine Type 3ZR-FAE 3ZR-FE 1AZ-FE
      Grade SOL SOL-Plus SOL SOL-Plus
      Bumper Colored X X X X
      Radiator Grille Colored X X X X
      Rear Spoiler Colored (for Sedan Models) OP OP OP -
      Colored (for Wagon Models) X X - -
      Side Mudguard Colored X X X X
      Spat Front (Standard Type) + Rear X X X X
      Front (Expanded Type) + Rear OP OP OP -
      Panoramic Roof OP*1 OP*1 - -
      Roof Garnish Silver X*1 X*1 - -
      Outside Door Handle Colored X X X X
      Outside Rear View Mirror Colored X X X X
      Rear Door Sunshade System - OP*2 - -
      Rear Sunshade System OP*2 OP*2 - -

      Tech Tips

      X: Standard

      -: Not equipped

      OP: Option

      *1: Wagon models

      *2: Sedan models

      Chassis
      Engine Type 3ZR-FAE 3ZR-FE 1AZ-FE
      Grade SOL SOL-Plus SOL SOL-Plus
      Tire 205/60R16 X - X X
      215/55R17 OP X OP OP
      225/45R18 OP*1 OP - -
      Disc Wheel 16 x 6 1/2 J Steel OP - OP X
      16 x 6 1/2 J Aluminum X - X OP
      17 x 7 J Aluminum OP X OP OP
      18 x 7 1/2 J Aluminum OP*1 OP - -
      Brake Control System ABS and EBD - - - X
      ABS, EBD, Brake Assist, TRC, VSC and Cooperative Control with EPS X X X -
      Steering Wheel 3-spoke Leather with Audio and Display Switches X OP X X
      3-spoke Leather with Audio, Display, Telephone and Voice Recognition Switches OP - OP -
      3-spoke Leather with Audio, Display, Telephone, Voice Recognition and Cruise Control Switches OP*2 X*2 - -
      3-spoke Leather with Audio, Display, Telephone, Voice Recognition and Cruise Control and Shift Paddle Switch (Transmission Shift Switch Assembly) OP*3 X*3 - -
      Column Manual Tilt and Telescopic X X X X
      Power Tilt and Power Telescopic OP*1 OP OP*4 OP
      Electric Power Steering (EPS) X X X X
      Shift Knob Leather X X X X

      Tech Tips

      X: Standard

      -: Not equipped

      OP: Option

      *1: RHD models

      *2: Models with manual transaxle

      *3: Models with K111 CVT

      *4: Models except for Chile

      Body
      Engine Type 3ZR-FAE 3ZR-FE 1AZ-FE
      Grade SOL SOL-Plus SOL SOL-Plus
      Seat Cover Fabric X X X X
      Leather OP* OP OP OP
      Front Manual Type X X X X
      Power Type OP* OP OP OP
      Rear One-touch Foldable 40/60 Split Type X X X X
      Seat Belt Front 3-point ELR, Pretensioner and Force Limiter X X X X
      Rear 3-point ELR x 3 X X X X

      Tech Tips

      X: Standard

      OP: Option

      *: RHD models

      Body Electrical
      Engine Type 3ZR-FAE 3ZR-FE 1AZ-FE
      Grade SOL SOL-Plus SOL SOL-Plus
      Headlight Halogen X X X -
      HID OP OP*1 OP X
      Intelligent AFS OP*2 OP*2 OP*2 X
      Headlight Beam Level Control System Manual Type X X X -
      Automatic Type OP*2 OP*2 OP*2 X
      Headlight Cleaner System OP OP OP X
      Daytime Running Light System OP*3 OP*3 - -
      Fog Light Front X X X X
      Rear With X X X X
      Without - - OP*3 -
      Emergency Brake Signal With X X - -
      Without OP OP X X
      Automatic Light Control System With X X - -
      Without OP OP - -
      Light Automatic Turn-off System X X X X
      Illuminated Entry System X X X X
      With Interior Illumination Light - OP - -
      Map Light X X X X
      Room Light X X X X
      Wiper System Front Intermittent Type with Adjustable Interval Function OP OP - -
      Raindrop Sensing Type X X X X
      Rear Intermittent Type X*4 X*4 - -
      Windshield Deicer System OP*3 OP - -
      TOYOTA Parking Assist-sensor System OP OP - -
      Monitor System OP*5 OP - -
      Navigation System DVD Type with Voice Recognition Function OP - - -
      HDD Type with Voice Recognition Function OP*5 OP - -
      Audio System Radio Receiver Assembly AM/FM Tuner, CD Player, 6-speaker System X - X X
      AM/FM Tuner, CD Player, 6-speaker System (for Latin America) - - OP*3 OP
      AM/FM Tuner, CD Player, Bluetooth Hands-free System, 6-speaker System OP X OP -
      AM/FM Tuner, In-dash 6-CD Changer, Bluetooth Hands-free System, 11-speaker System OP*5 OP OP*11 -
      Navigation Receiver Assembly DVD Type, AM/FM Tuner, CD Player, Bluetooth Audio System, Bluetooth Hands-free System, 6-speaker System OP - - -
      HDD Type, AM/FM Tuner, CD Player, Bluetooth Audio System, Bluetooth Hands-free System, 11-speaker System OP*5 OP - -
      Without Radio 6-speaker System OP OP OP OP
      Stereo Jack Adapter Assembly With X X X X
      Without OP OP OP OP
      Air Conditioning Manual Type OP*7 OP*7 - -
      Automatic Type X X X X
      Without OP*6 OP*6 - -
      Heater Conventional Type X X X X
      With Quick Heater Assembly OP*3 OP - -
      Seat Heater System OP OP OP OP
      Cruise Control System with Speed Limiter Control OP*8 X*8 - -
      without Speed Limiter Control OP*7 X*7 - -
      Entry and Start System OP OP OP X
      Power Door Lock Control System X X X X
      Wireless Door Lock Control System X X X -
      Luggage Compartment Door Opener System X X X X
      Fuel Lid Opener System X X X X
      Roof Sunshade System OP*4 OP*4 - -
      Power Window Control System Front and Rear X X X X
      Engine Immobiliser System X X X X
      Theft Deterrent System Normal X*5 - X*5 -
      With Intrusion Sensor OP*9 - - -
      With Intrusion Sensor and Print Pattern Type Glass Breakage Sensor OP*10 - - -
      Memory System OP*5 OP OP OP
      Outside Rear View Mirror Electric Remote Control, Heater and Side Turn Signal Light X OP X -
      Electric Remote Control, Power Retractable, Heater and Side Turn Signal Light OP X OP X
      Inside Rear View Mirror Automatic Glare-resistant EC OP X OP X
      SRS Airbag System Driver, Front Passenger, Side and Knee - - X X
      Driver, Front Passenger, Side, Knee and Curtain Shield X X OP -
      Combination Meter Optitron With Eco Driving Indicator Function X*7 X*7 X*12 -
      Without Eco Driving Indicator Function X X X*8 X

      Tech Tips

      X: Standard

      -: Not equipped

      OP: Option

      *1: Models with entry and start system

      *2: Models with HID headlight system

      *3: LHD models

      *4: Wagon models

      *5: RHD models

      *6: RHD models with manual transaxle

      *7: Models with K111 CVT

      *8: Models with manual transaxle

      *9: RHD sedan models

      *10: RHD wagon models

      *11: RHD models with automatic transaxle

      *12: Models with automatic transaxle

    13. Exterior Color and Interior Color

      Exterior Interior
      Color No. Color Name Interior Color Name
      040 Super White II Black
      Greige
      1F7 Silver Metallic Black
      Greige
      1G3 Gray Metallic Black
      Greige
      1G6 Gray Metallic Black
      Greige
      209 Black Mica Black
      Greige
      3R3 Red Mica Metallic Black
      Greige
      6T7 Olive Mica Metallic Black
      Greige
      8S6 Dark Blue Mica Black
      Greige
      8U5 Dark Blue Metallic Black
      Greige
      9AK Dark Purple Black
      Greige
