FEATURES PERFORMANCE

  1. OUTLINE

    1. 1ZR-FAE, 2ZR-FAE and 3ZR-FAE Engine

      1. The 1ZR-FAE, 2ZR-FAE, and 3ZR-FAE engines are provided. These engines are equipped with a Dual Variable Valve Timing-intelligent (Dual VVT-i) System, which continuously performs variable controls on the intake and exhaust valve timing, and a VALVEMATIC, which continuously performs variable controls on the amount of lift of the intake valve.

      2. The VALVEMATIC, Dual Variable Valve Timing-intelligent (Dual VVT-i) System, Direct Ignition System (DIS), Electronic Throttle Control System-intelligent (ETCS-i) and Acoustic Control Induction System (ACIS) are provided, thus achieving improved engine performance, fuel economy, and clean emissions.

        Engine Type 1ZR-FAE 2ZR-FAE 3ZR-FAE
        Item No. of Cylinders and Arrangement 4-cylinder, In-line 4-cylinder, In-line 4-cylinder, In-line
        Valve Mechanism 16-valve DOHC, Chain Drive with VALVEMATIC and Dual VVT-i 16-valve DOHC, Chain Drive with VALVEMATIC and Dual VVT-i 16-valve DOHC, Chain Drive with VALVEMATIC and Dual VVT-i
        Displacement

        1598 cm3(97.5 cu. in.)

        1798 cm3(109.7 cu. in.)

        1987 cm3(121.3 cu. in.)
        Maximum Output [EEC] 97 kW @ 6400 rpm 108 kW @ 6400 rpm 112 kW @ 6200 rpm
        Maximum Torque [EEC] 160 N*m @ 4400 rpm 180 N*m @ 4000 rpm 196 N*m @ 4000 rpm

    2. 3ZR-FE Engine

      1. The 3ZR-FE engine is provided. This engine uses the Dual Variable Valve Timing-intelligent (Dual VVT-i) system, Direct Ignition System (DIS), and Electronic Throttle Control System-intelligent (ETCS-i). They have been developed to achieve high performance and fuel economy, and reduce exhaust emission.

        Engine Type 3ZR-FE
        Item No. of Cylinders and Arrangement 4-cylinder, In-line
        Valve Mechanism 16-valve DOHC, Chain Drive with Dual VVT-i
        Displacement

        1987 cm3(121.3 cu. in.)
        Maximum Output [EEC] 102 kW @ 5600 rpm
        Maximum Torque [EEC] 189 N*m @ 4400 rpm

    3. U241E Automatic Transaxle

      1. U241E 4-speed automatic transaxle is used.

        Transaxle Type U241E
        Combination with Engine 3ZR-FE

    4. EB60 and EC60 Manual Transaxles

      1. EB60 and EC60 6-speed manual transaxles are used.

        Transaxle Type EB60 EC60
        Combination with Engine 3ZR-FAE 1ZR-FAE and 2ZR-FAE

    5. K111 and K311 Continuously Variable Transaxle (CVTs)

      1. K111 and K311 continuously variable transaxle are used.

        Transaxle Type K111 K311
        Combination with Engine 3ZR-FAE 2ZR-FAE

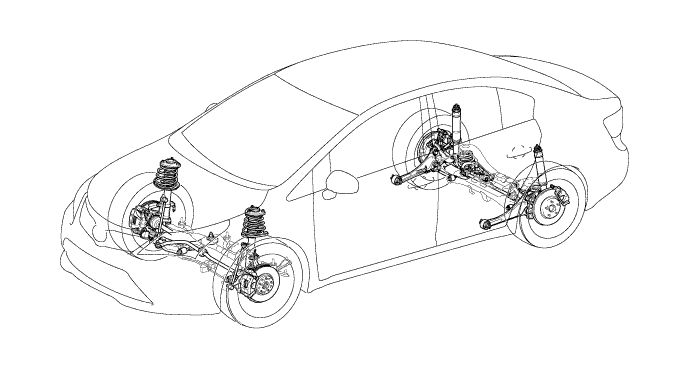

    6. Suspension

      1. A MacPherson strut type independent suspension is used for the front.

      2. A double-wishbone type independent suspension is used for the rear.

        A010FQY

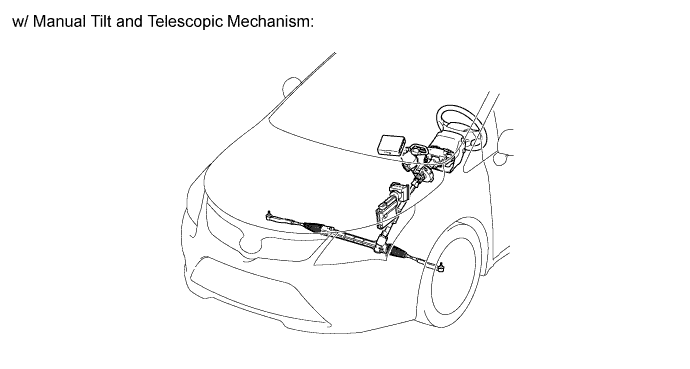

    7. Steering

      1. A rack and pinion type steering gear assembly is used.

      2. A Electric Power Steering (EPS) system is used.

      3. A manual tilt and telescopic mechanism is used on all models as standard equipment.

      4. A power tilt and power telescopic system with the auto away and auto return function is available on some models as optional equipment.

        A010F9CE01

    8. Brake

      1. A ventilated disc brake is provided for the front brake.

      2. A built-in type solid disc brake is provided for the rear brake.

      3. An electric parking brake system, which allows the parking brake to be locked and released using a switch, is provided.
