STARTING SYSTEM GENERAL

  1. OUTLINE

    1. The planetary reduction type starter with the interpolar magnet has been used.

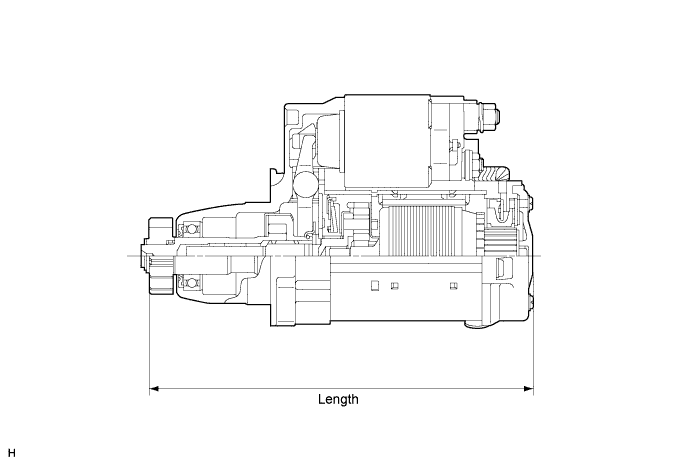

      A0076J7E01

  2. SPECIFICATION

    Length 209.3 mm (8.24 in.)
    Weight 3150 g (100.5 lb)
    Rating Voltage 12 V
    Rating Output 1.6 kW
    Rotating of Direction Counterclockwise*

    Tech Tips

    *: Viewed from Pinion Side
