BRAKE SYSTEM GENERAL


  1. OUTLINE


    1. A small-diameter and long-stroke type brake master cylinder sub-assembly has been adopted.

    2. A type of brake booster assembly into which the brake master cylinder sub-assembly is inserted has been adopted to achieve a compact configuration.

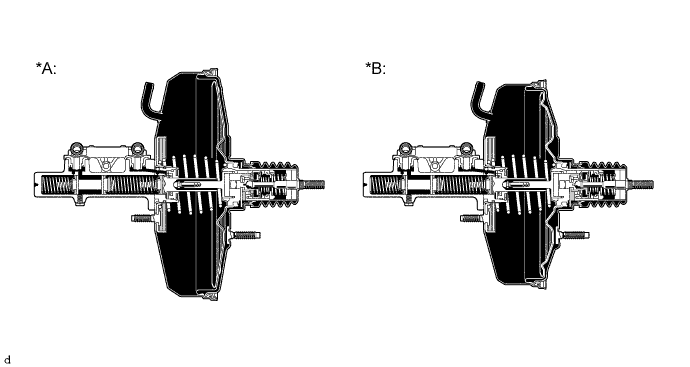

      A01KAEFE01
      Text in Illustration
      *A Models for Dyna 150 for General Countries Except Singapore *B Models for Singapore and Dyna 100 for General Countries Except Singapore

  2. SPECIFICATION

    General Countries Except Singapore
    Model Dyna 100 Dyna 150
    Brake Master Cylinder Sub-assembly Type Tandem ←
    Diameter mm (in.) 22.22 (0.87) ←
    Brake Booster Assembly Type Single ←
    Size in. 9 10
    Singapore
    Model Dyna 100/150
    Brake Master Cylinder Sub-assembly Type Tandem
    Diameter mm (in.) 22.22 (0.87)
    Brake Booster Assembly Type Single
    Size in. 9
