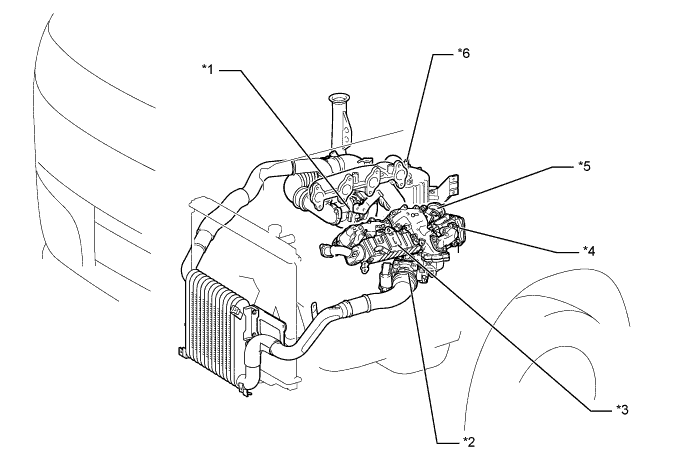

EMISSION CONTROL SYSTEM PARTS LOCATION
| *1 | Turbocharger Sub-assembly | *2 | Throttle Body with Motor Assembly |
| *3 | EGR Pipe with Cooler Sub-assembly | *4 | EGR Valve Assembly |
| *5 | No. 2 EGR Valve Assembly | *6 | Intake Mass Air Flow Meter Assembly |
| *1 | Turbocharger Sub-assembly | *2 | Throttle Body with Motor Assembly |
| *3 | EGR Pipe with Cooler Sub-assembly | *4 | EGR Valve Assembly |
| *5 | No. 2 EGR Valve Assembly | *6 | Intake Mass Air Flow Meter Assembly |
