ABOUT THIS VEHICLE DAMAGE DIAGNOSIS

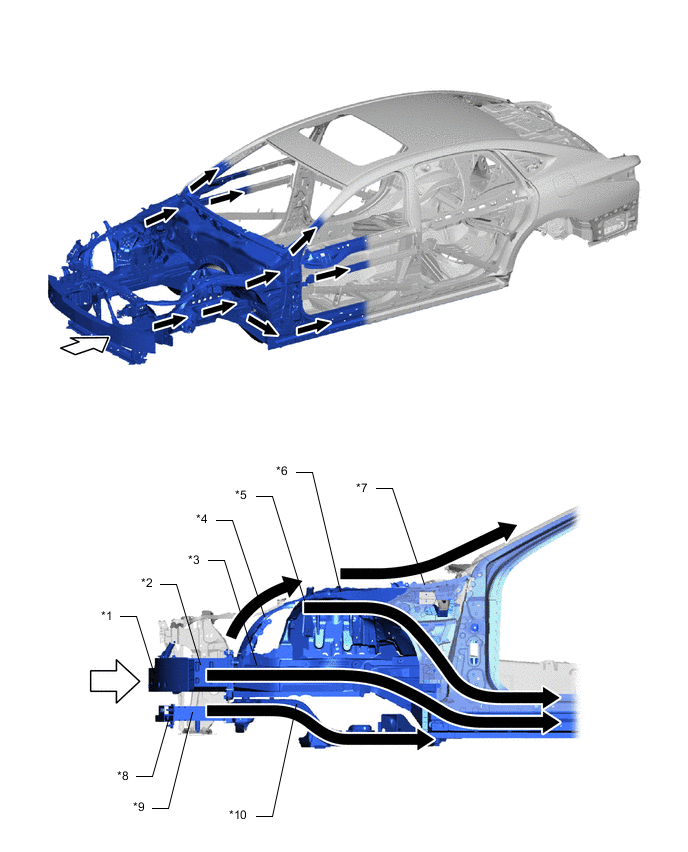

| *1 | Front Bumper Reinforcement No. 1 | *2 | Front Bumper Mounting Reinforcement |
| *3 | Front Side Member | *4 | Outrigger Sub Assembly No.2 |
| *5 | Outrigger Sub Assembly No.1 | *6 | Cowl Top Side Panel |
| *7 | Front Body Pillar Gusset | *8 | Front Bumper Reinforcement No. 2 |
| *9 | Rear Frame Rail | *10 | Front Suspension Cross Member |
 |
Collision Direction |  |
Collision Force Absorption Direction |

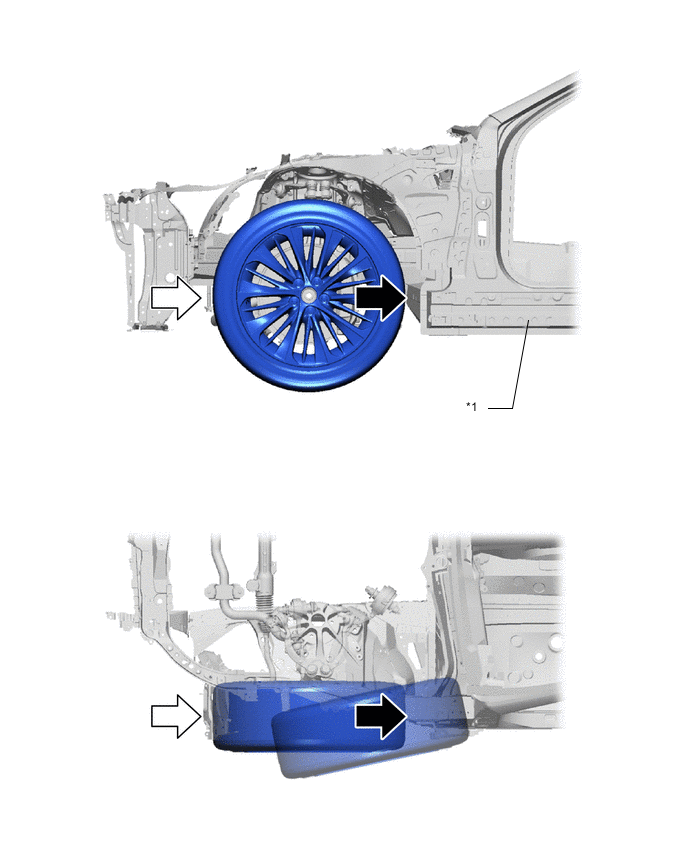

| *1 | Rocker Outer Reinforcement | - | - |
| |
Collision Direction | |
Collision Force Absorption Direction |

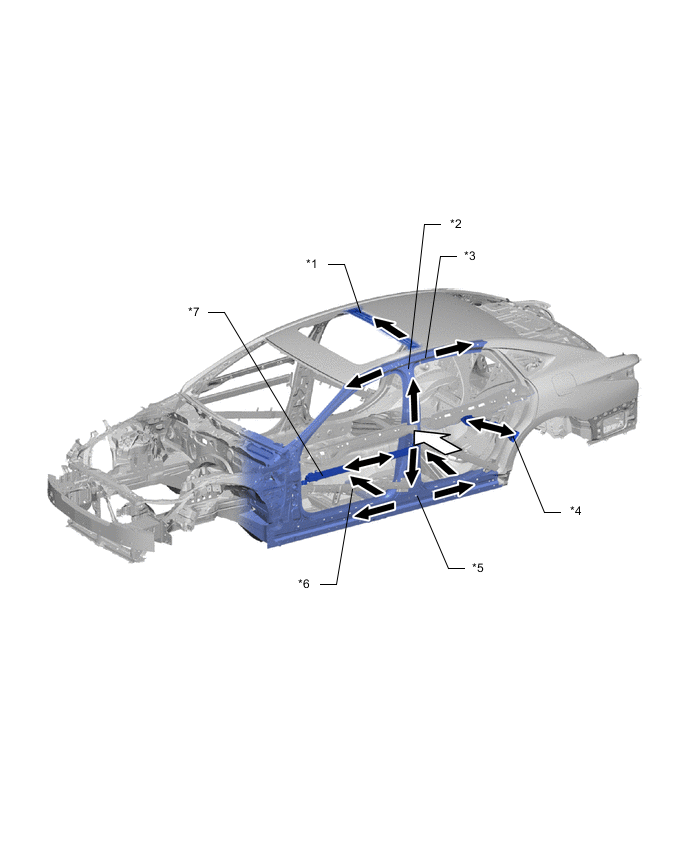

| *1 | Roof Panel Reinforcement | *2 | Center Body Piller Reinforcement |
| *3 | Roof Side Rail | *4 | Rear Door Reinforcement |
| *5 | Rocker Panel Sub Assembly | *6 | Front Floor Crossmember Reinforcement |
| *7 | Front Door Side Impact Protection Beam | - | - |
| |
Collision Direction | |
Collision Force Absorption Direction |
