ABOUT THIS VEHICLE STRUCTURAL OUTLINE

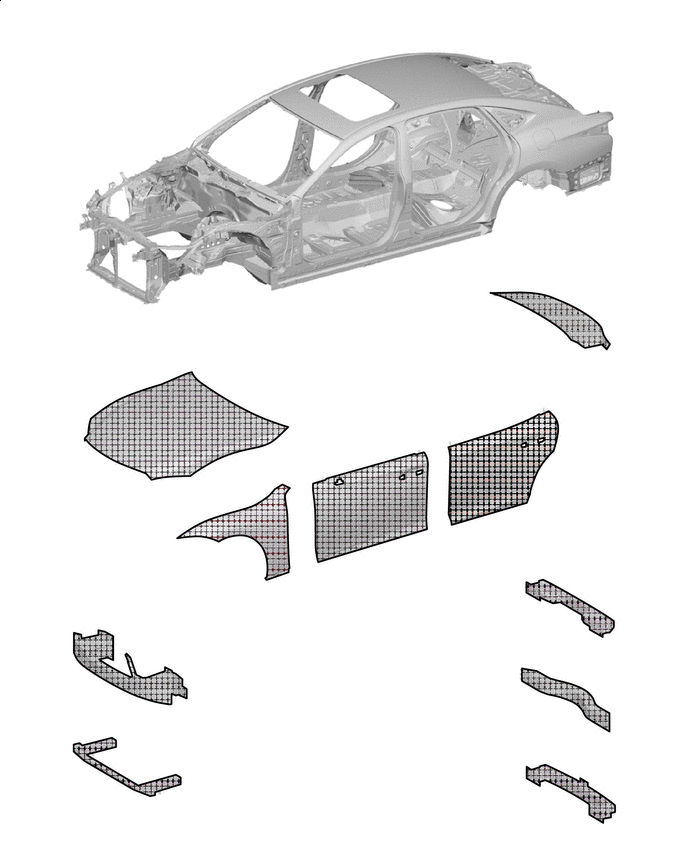

B003G4GC02
B003FYZ Aluminum - -

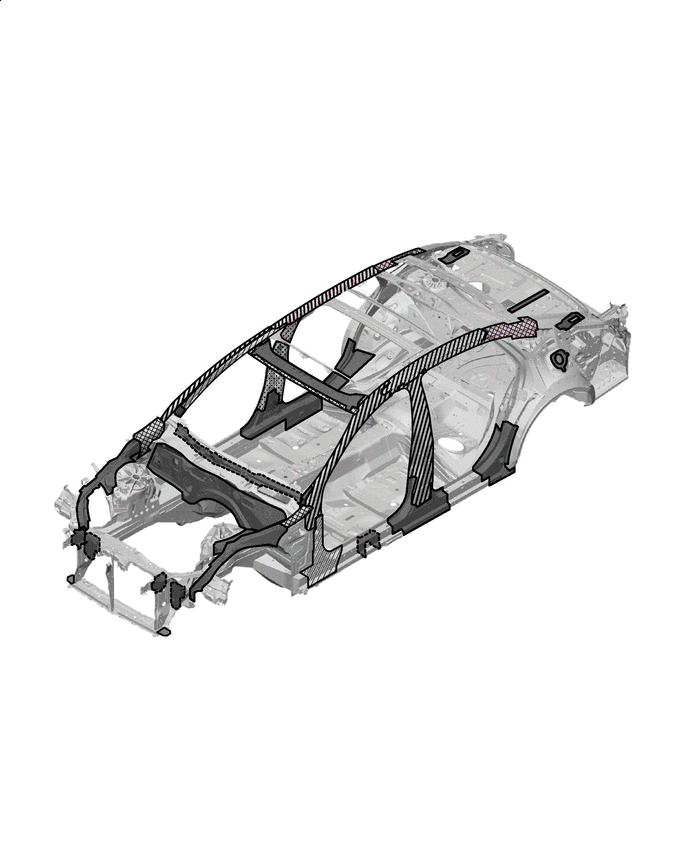

B003G5QC01
B003FXU 1500 MPa Ultra High Strength Steel B003G32 980 MPa Ultra High Strength Steel
B003G7N 590 MPa High Strength Steel B003G6T 440 MPa High Strength Steel

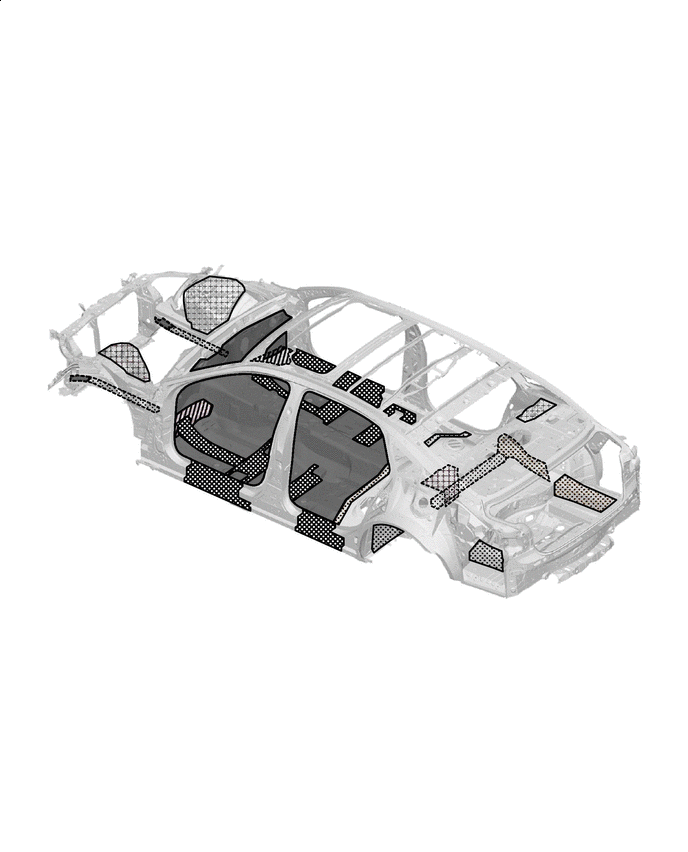

B003G1CC02
B003FXU 1500 MPa Ultra High Strength Steel B003G0J 1180 MPa Ultra High Strength Steel
B003G5T 780 MPa Ultra High Strength Steel B003G6T 440 MPa High Strength Steel
B003FYZ Aluminum - -

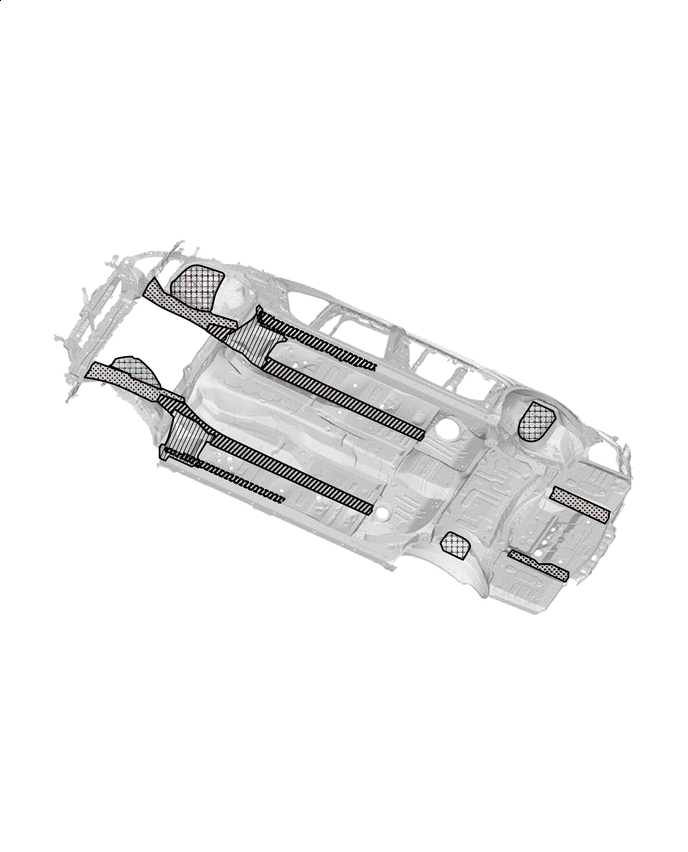

B003G23C01
B003FXU 1500 MPa Ultra High Strength Steel B003G32 980 MPa Ultra High Strength Steel
B003G5T 780 MPa Ultra High Strength Steel B003FYZ Aluminum

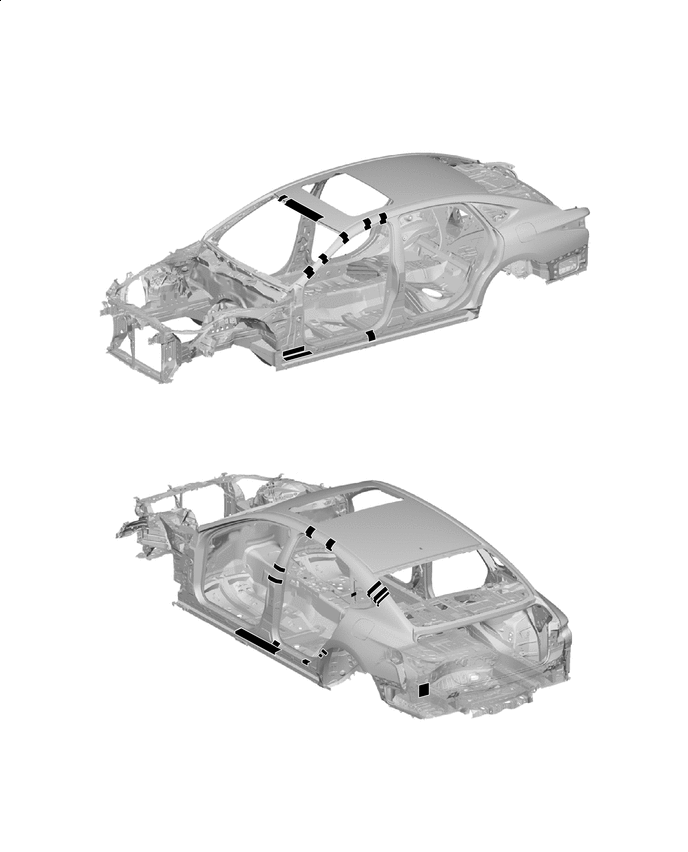

B003GBKC01
B003G1Z Foamed Sealing Material Application Areas (See the painting/coating) - -

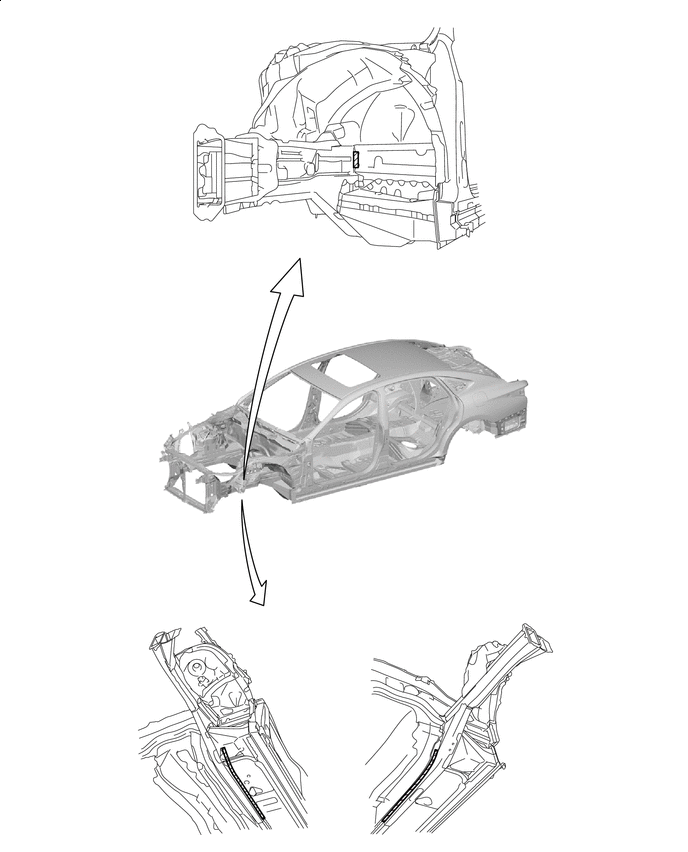

B003G6IC01
B003G32 Adhesive Application Areas - -

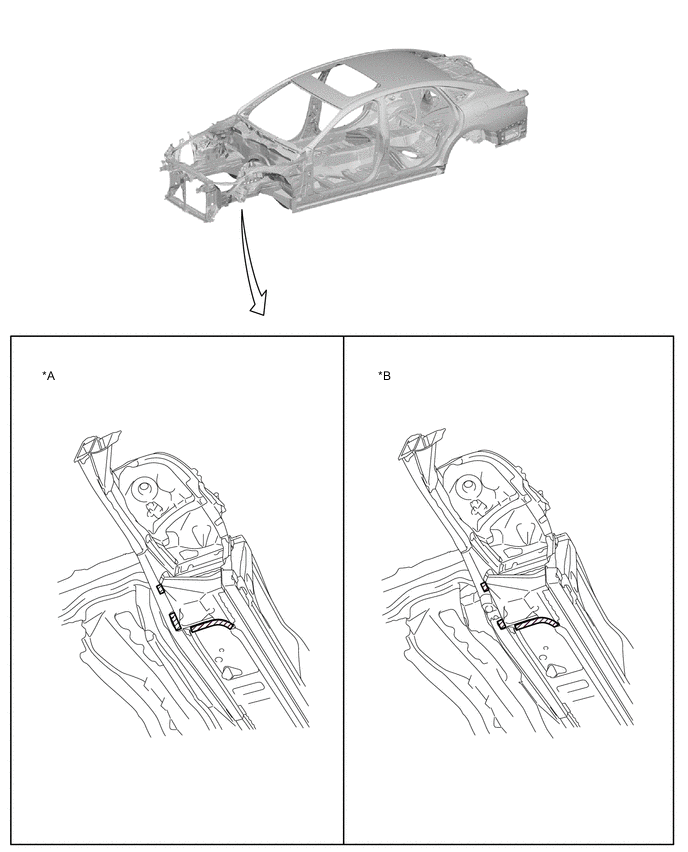

B003G63C01
*A for 2WD *B for AWD
B003G32 Adhesive Application Areas - -

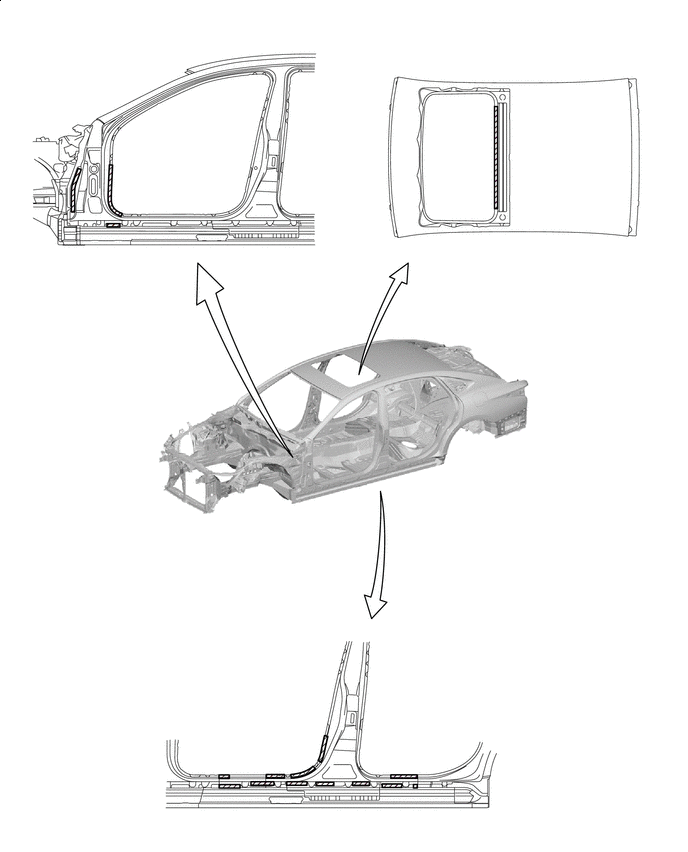

B003GBCC01
B003G32 Adhesive Application Areas - -

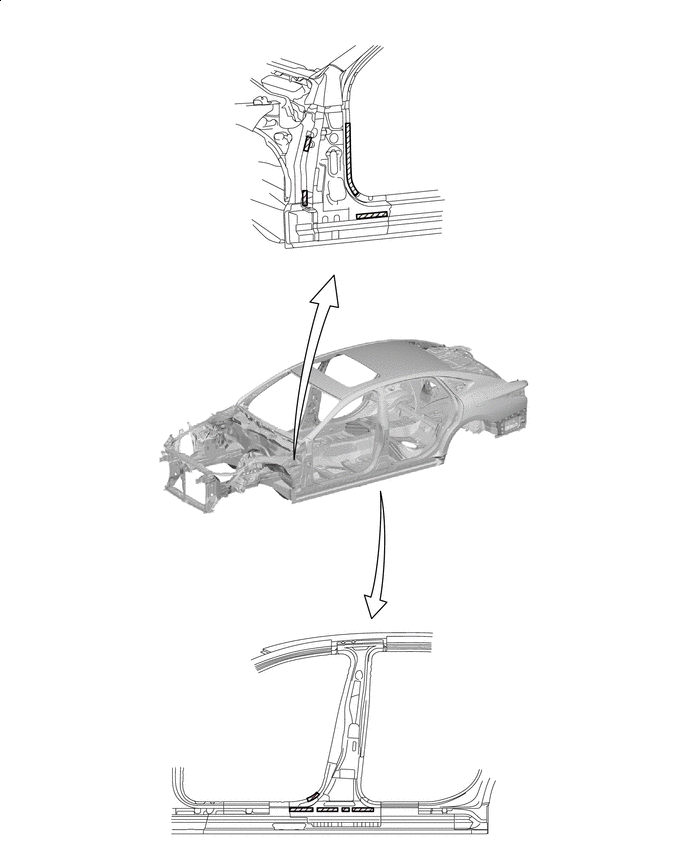

B003G2RC01
B003G32 Adhesive Application Areas - -

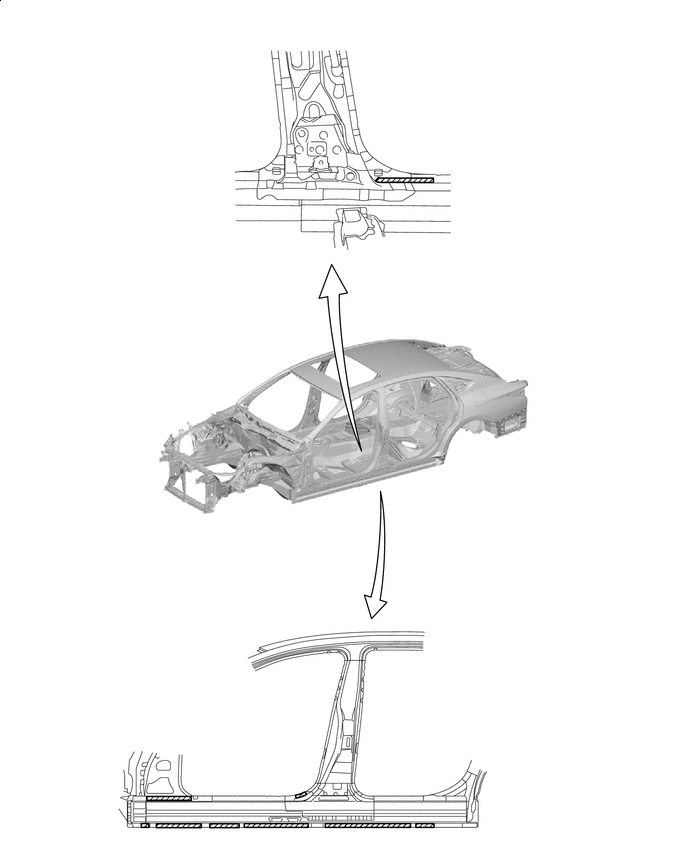

B003G2QC01
B003G32 Adhesive Application Areas - -

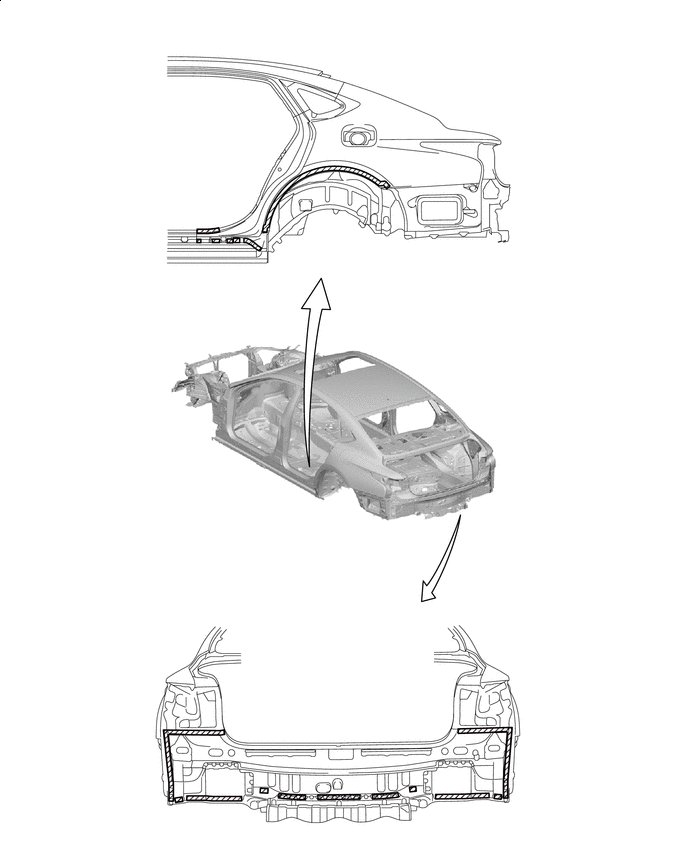

B003GA8C01
B003G32 Adhesive Application Areas - -

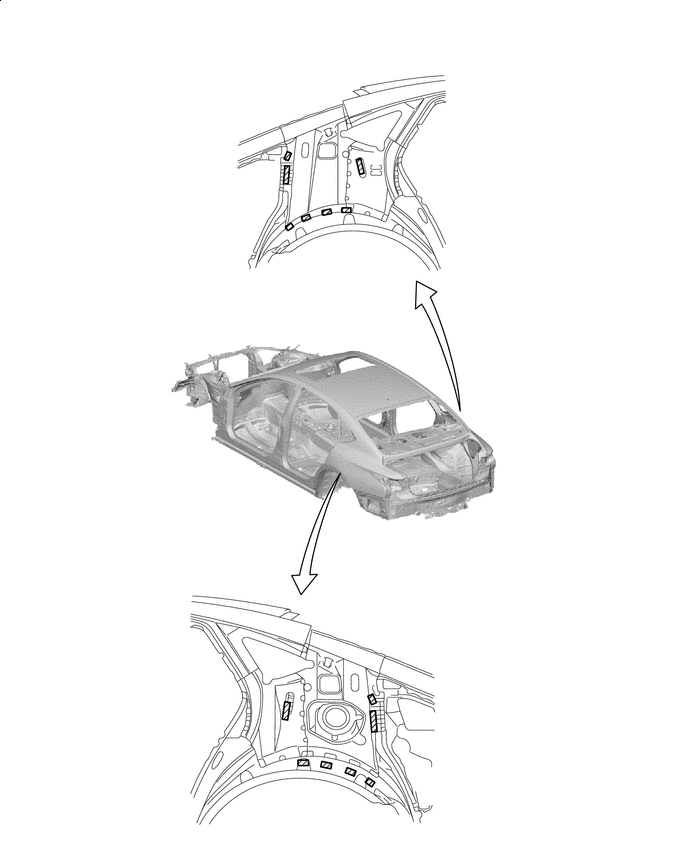

B003G6BC01
B003G32 Adhesive Application Areas - -

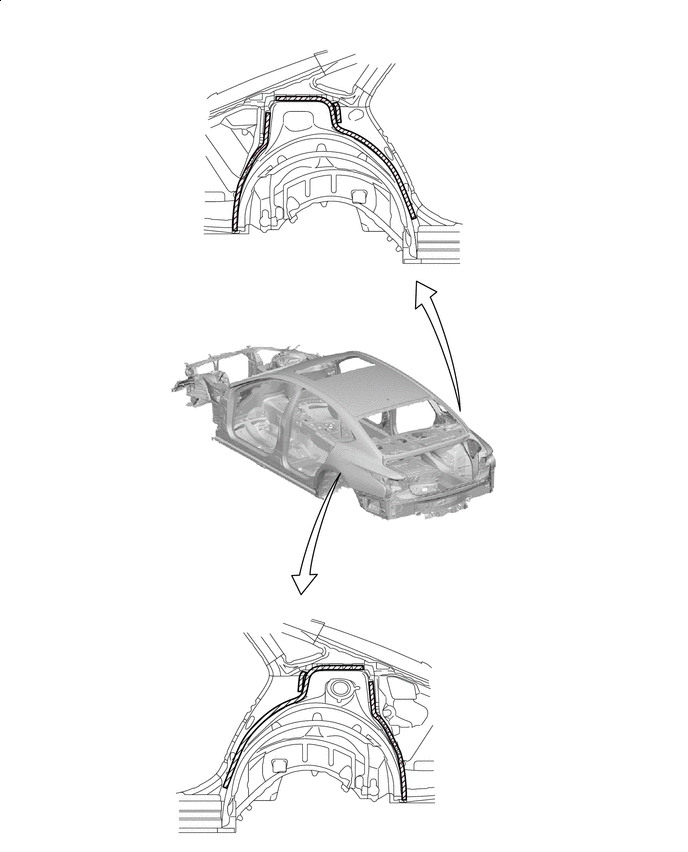

B003G2PC01
B003G32 Adhesive Application Areas - -

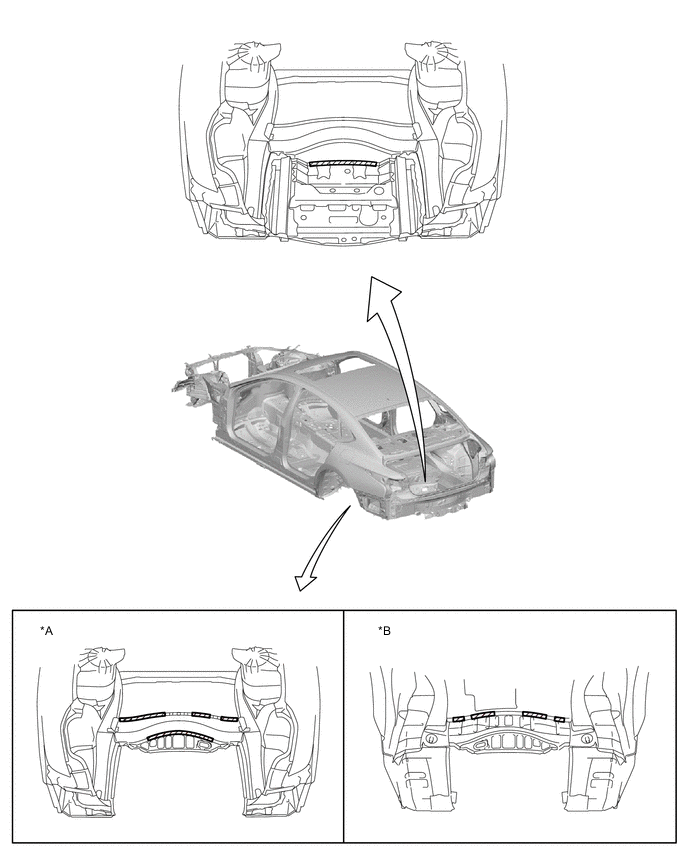

B003G3VC01
*A Upper Face *B Lower Face
B003G32 Adhesive Application Areas - -

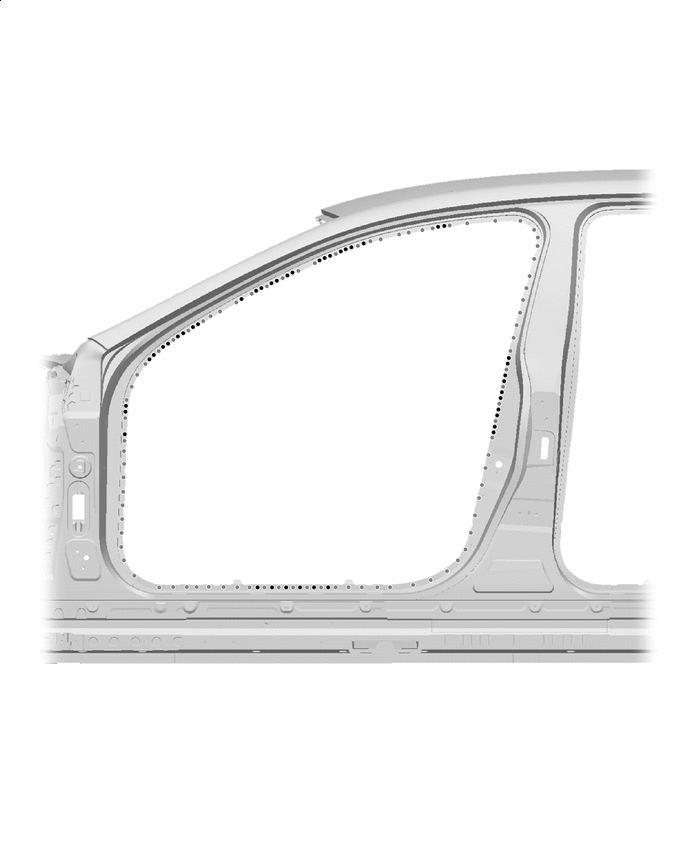

B003G2MC01
B003G1Z Laser Screw Welding B003G6T Spot Welding

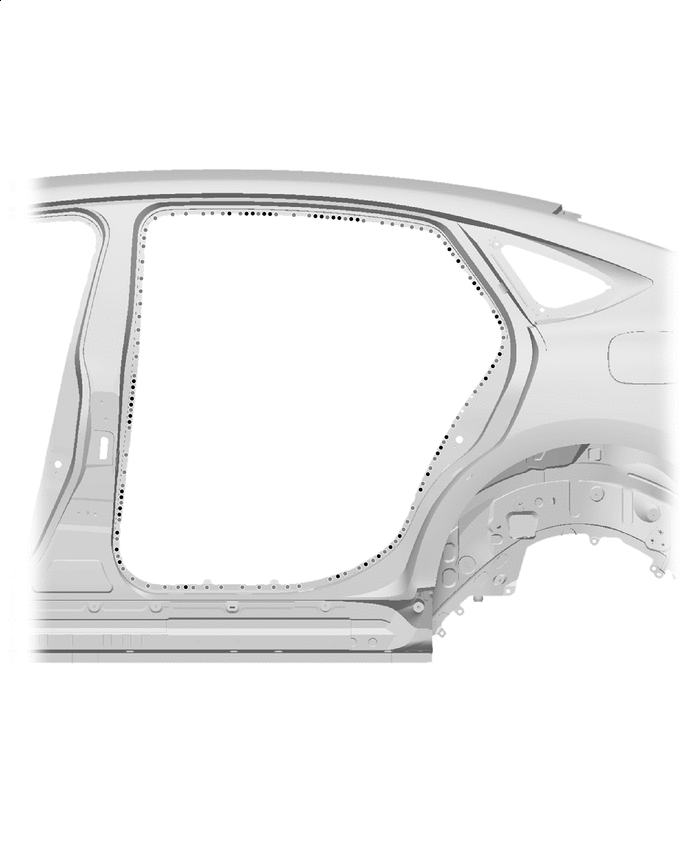

B003FXGC01
B003G1Z Laser Screw Welding B003G6T Spot Welding

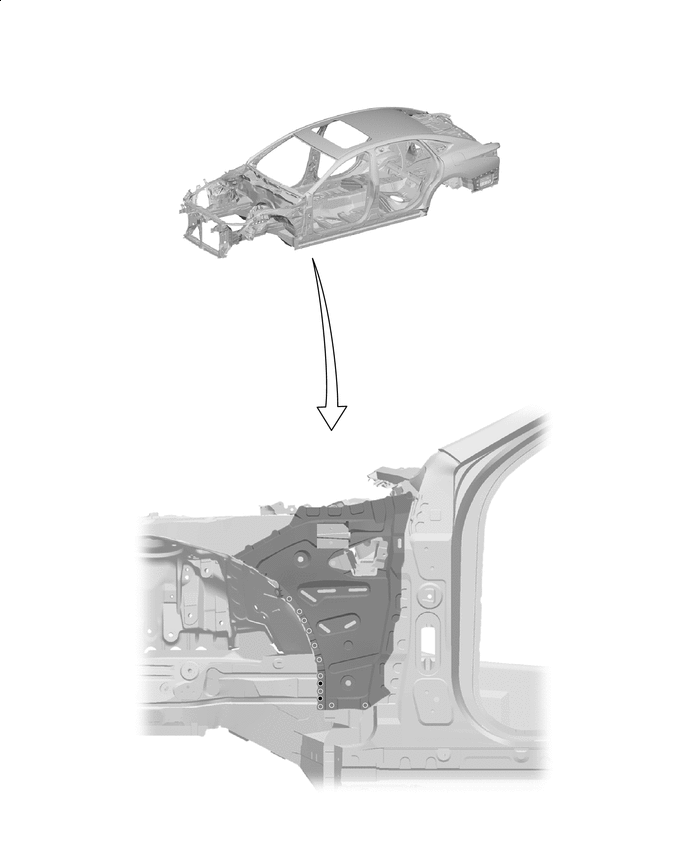

B003FZBC01
B003G1Z Laser Screw Welding B003G6T Spot Welding

  1. STRUCTURAL OUTLINE OF FRONT FENDER APRON ASSEMBLY


    1. Suspension tower of aluminum die casting improves exercise performance (weight reduction/low center of gravity/high rigidity).


      • Aluminum die casting and steel plate are fastened by SPR (Self Pierce Rivet). (SPR: 43 places)

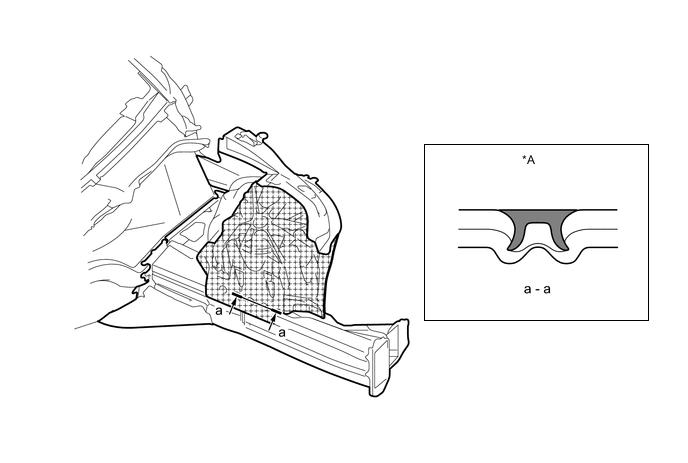

        B003G8ZC01
        *A Cross section of SPR fastening - -
        B003FYZ Aluminum die casting - -

    2. Notes on supply form and repair


      1. Main components of the front fender apron assy (supply form) (*1, *2, *3, *4 also have single item supply)

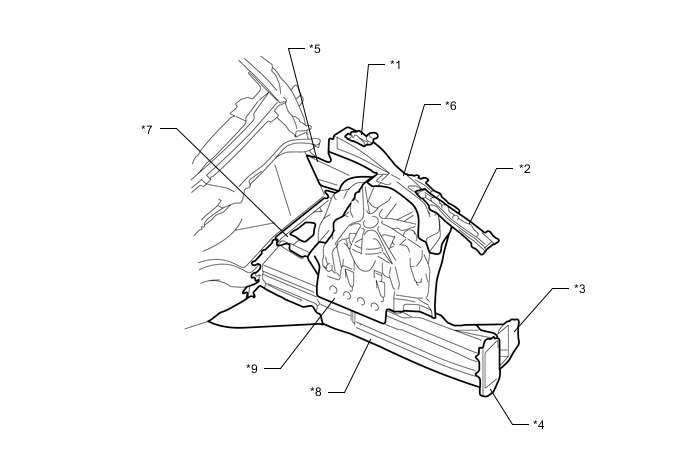

        B003GBAC01
        *1 FENDER APRON PLATE *2 NO.1 OUTRIGGER SUB-ASSEMBLY
        *3 OUTRIGGER GUSSET NO.1 *4 FRONT BUMPER ARM SUPPORT
        *5 COWL TOP SIDE PANEL *6 FRONT FENDER TO COWL SIDE MEMBER
        *7 FRONT FENDER REAR APRON *8 FRONT SIDE MEMBER
        *9 SUSPENSION TOWER - -

      2. Repair of the front fender apron assy

        Note


        • Do not repair (remove/install) the SPR fastening.

        • Do not repair aluminum die casting.

        • Do not cut and join repair side member(780MPa).

        COMPONENT PART PARTS No. SPR FASTENING SINGLE ITEM EXCHANGE CORRECTION OF STEEL PLATE
        FENDER APRON PLATE 53717/8- None Possible as usual
        NO.1 RH OUTRIGGER SUB-ASSEMBLY 57301/2-
        OUTRIGGER GUSSET NO.1 57337/8-
        FRONT BUMPER ARM SUPPORT 57141/2-
        COWL TOP SIDE PANEL - use impossible *a
        FRONT FENDER TO COWL SIDE MEMBER -
        FRONT FENDER REAR APRON -
        FRONT SIDE MEMBER - *a, *b
        SUSPENSION TOWER -

        Aluminum die casting

        *c

        *a:

        Minor damage (such as end flange deformation and slight distortion) can be corrected.

        *b:

        When using a frame aligner, be sure to check looseness of SPR. (SPR may be loose.)

        Due to its high rigidity, large damage (folding or clear bending) can not be corrected.

        *c:

        Do not repair die casting

  2. NECESSITY OF EXCHANGE OF THE FRONT FENDER APRON ASSY AND DAMAGE CHECK OF SPR FASTENING PART


    1. If there is a possibility of receiving an impact on the SPR fastening part, looseness check of SPR is performed by the following procedure.


      • Input to the SPR fastening part is [input from the steel plate side] and [input from the aluminum die cast side].

      • If the SPR is loose, it is necessary to replace the front fender apron assy.

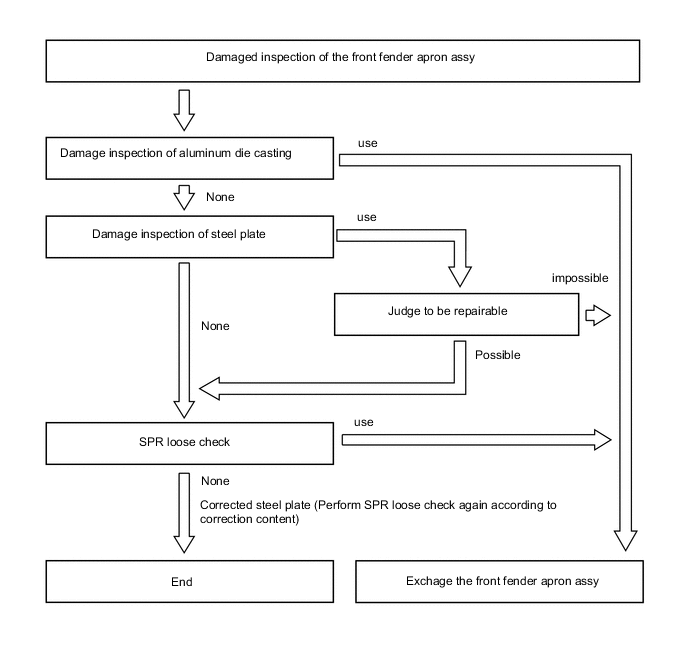

      B003GAWE01

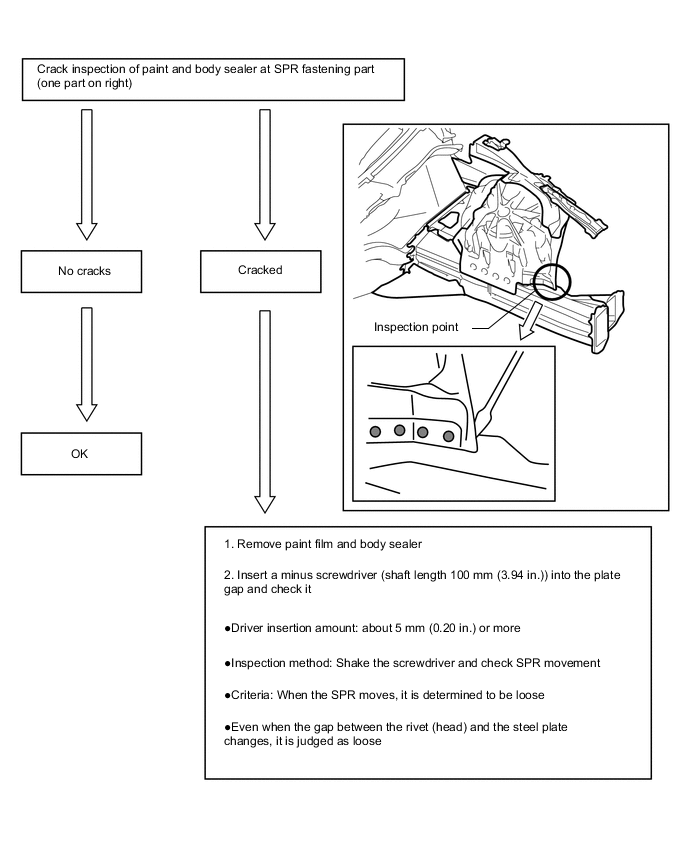

    2. Procedure of SPR loose check


      • The SPR fastening part is covered with a paint film and body sealer.

      B003FY7E01
