TORQUE FRONT BOX ASSEMBLY REPLACEMENT

B0049KQ

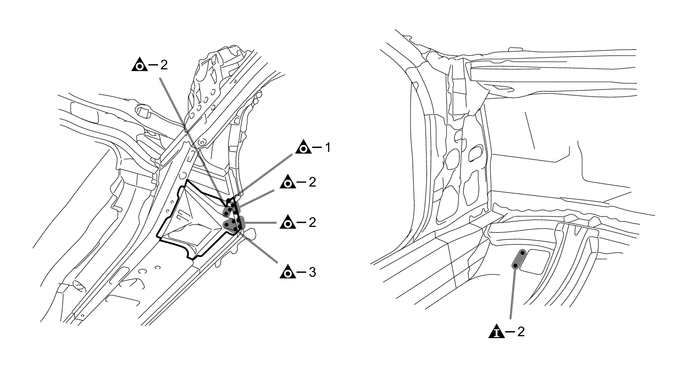

  1. REMOVAL

    Symbol Meaning
    B0049KO Remove Weld Points
    B0049K7 Remove Weld Points

    1. Roughly cut open the panel so that the adhesive can be reached. Cut through the adhesive with a cut chisel to remove the panel.

      Tech Tips

      In cases where the adhesive cannot be removed with a cut chisel, heat the adhesive with an industrial heater gun or gas burner taking care not to cause panel deformation by overheating.

      B0049KCC01
      B0049J8 Adhesive - -
      B0049JB
      A004BV0

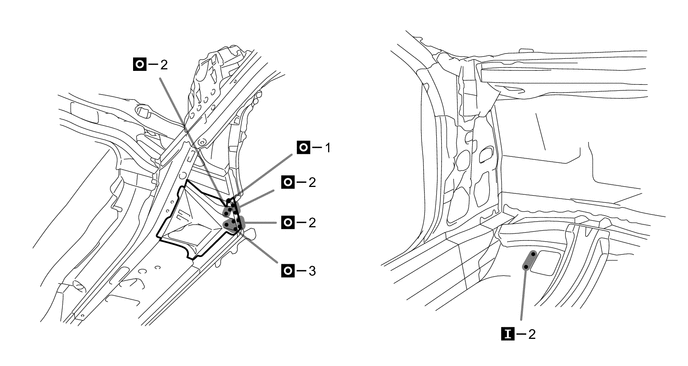

  2. INSTALLATION

    Symbol Meaning
    B0049K5 Plug Weld
    B0049IB Plug Weld

    1. Apply adhesive (3MTMAutomixTMPanel Bonding Adhesive #8115).

      Tech Tips


      • Apply a light coat of adhesive around the plug welding points.

      • Apply enough adhesive to the panels.

      B0049KCC01
      B0049J8 Adhesive - -
      B0049KNC01
      *1 FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY - -
      A004BMK

    2. After welding, apply body sealer and undercoating to the corresponding parts. (See the painting/coating)

    3. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
