BACK DOOR THREE-DIMENSIONAL DISTANCE


  1. w/o Rear No. 2 Seat

    Tech Tips


    • Point B, b on the vehicle are asymmetrical.

    • In cases in which only one dimension is given, left and right are symmetrical.

    • For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).

    Measuring Point Name
    Symbol Name

    Hole Diameter

    mm (in.)
    A Roof Panel Center Mark -
    B, b Back Door Hinge Installation Hole φ16 (0.63)
    C, c Back Door Damper Stay Installation Nut M6 (0.24)
    D, d Roof Side Garnish Installation Hole φ8.5 (0.33)
    E, e Quarter Panel Standard Hole φ13 (0.51)
    F, f Side Stopper Installation Nut M6 (0.24)
    G, g Roof Side Panel Inner Corner -
    H, h Rear Floor Finish Plate Installation Hole φ8.5 (0.33)
    J, j Back Door Lock Striker Installation Nut M8 (0.31)
    K, k Rear Bumper Reinforcement Installation Bolt M10 (0.39)
    L, l Rear Absorber Mounting Bracket Standard Hole φ15 (0.59)
    M, m Center Body Pillar Assembly Mark -

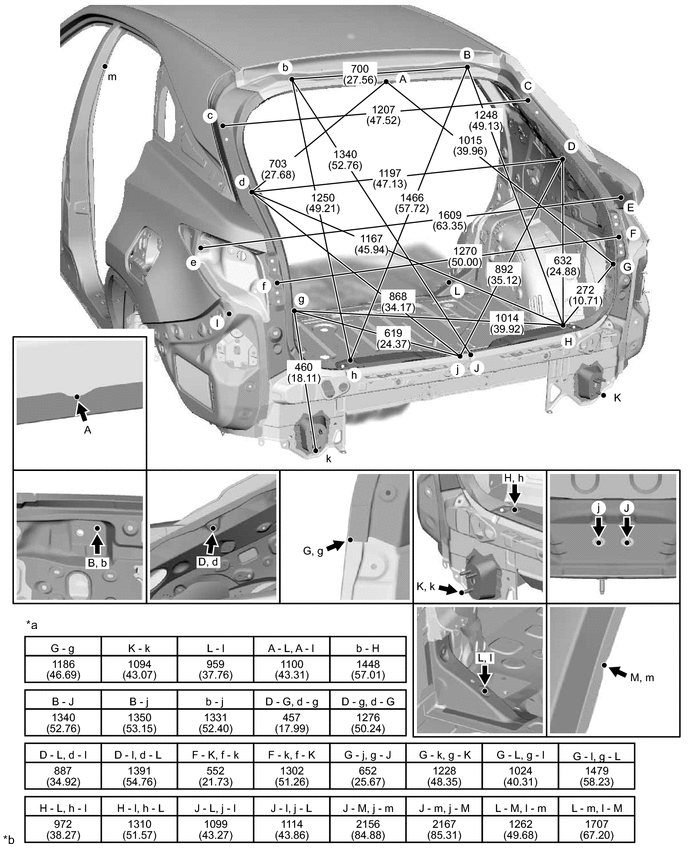

    B0055WAC01
    *a Distance between points other than those above *b

    mm

    (in.)

  2. w/ Rear No. 2 Seat

    Tech Tips


    • Point B, b on the vehicle are asymmetrical.

    • In cases in which only one dimension is given, left and right are symmetrical.

    • For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).

    Measuring Point Name
    Symbol Name

    Hole Diameter

    mm (in.)
    A Roof Panel Center Mark -
    B, b Back Door Hinge Installation Hole φ16 (0.63)
    C, c Back Door Damper Stay Installation Nut M6 (0.24)
    D, d Roof Side Panel Inner Corner -
    E, e Quarter Panel Standard Hole φ13 (0.51)
    F, f Side Stopper Installation Nut M6 (0.24)
    G, g Quarter Panel Reinforcement Corner -
    H, h Rear Floor Finish Plate Installation Hole φ8.5 (0.33)
    J, j Back Door Lock Striker Installation Nut M8 (0.31)
    K, k Rear Bumper Reinforcement Installation Bolt M10 (0.39)
    L, l Rear Absorber Mounting Bracket Standard Hole φ10 (0.39)
    M, m Center Body Pillar Assembly Mark -

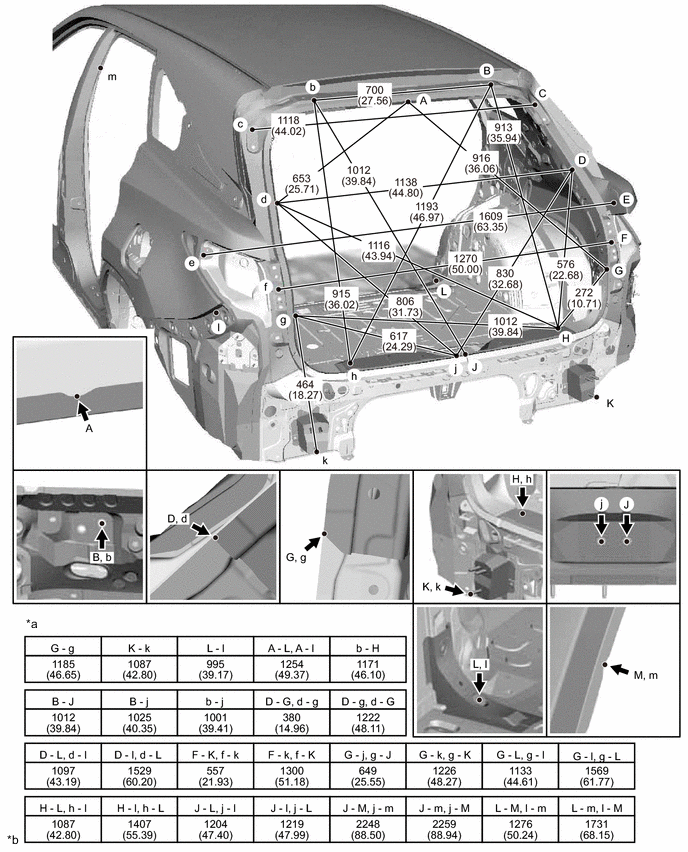

    B0055SAC01
    *a Distance between points other than those above *b

    mm

    (in.)
