REAR FLOOR LOWER FRONT CROSSMEMBER ASSEMBLY REPLACEMENT

B0055SC


  1. REMOVAL

    Symbol Meaning
    B0055SH Remove Weld Points
    B00560S Remove Weld Points

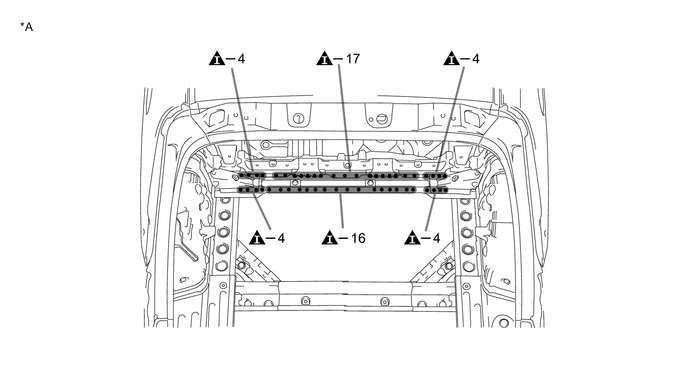

    B0055QNC02
    *A w/o Rear No. 2 Seat - -

    1. A is reused.

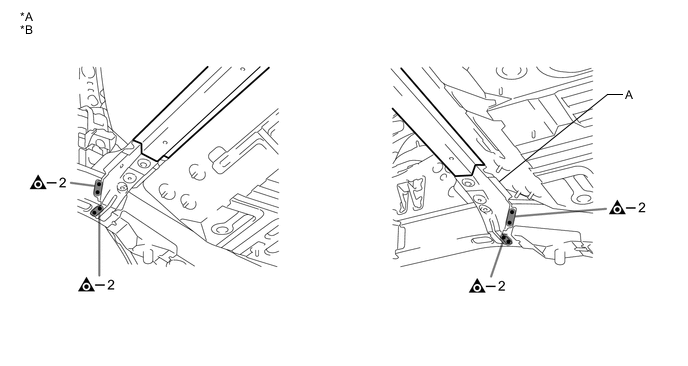

      B0055ROC04
      *A w/o Rear No. 2 Seat *B LH Side

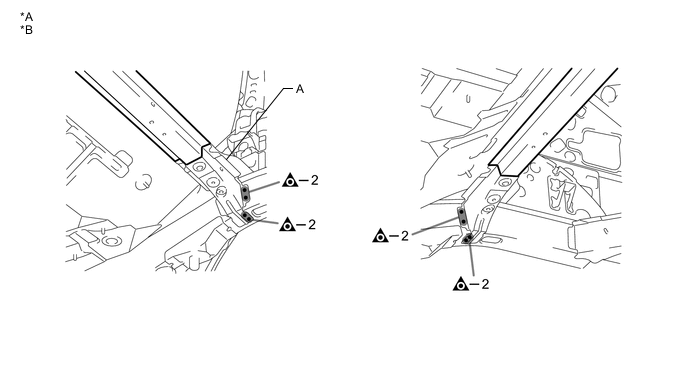

      B0055RRC04
      *A w/o Rear No. 2 Seat *B RH Side

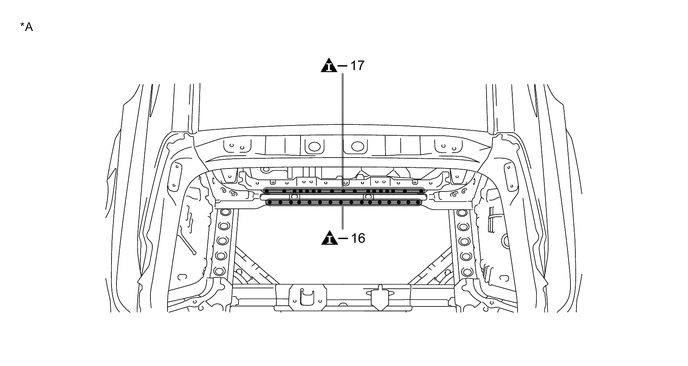

      B0055TCC02
      *A w/ Rear No. 2 Seat - -

    2. A is reused.

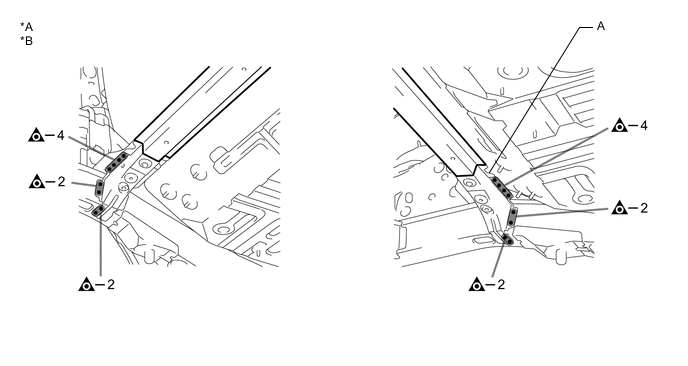

      B0055XHC02
      *A w/ Rear No. 2 Seat *B LH Side

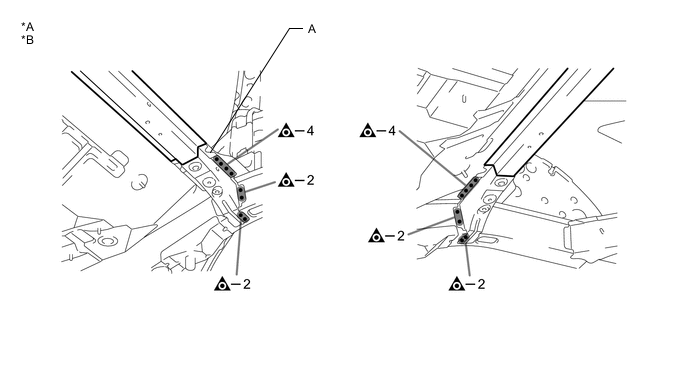

      B0055QGC02
      *A w/ Rear No. 2 Seat *B RH Side

  2. INSTALLATION

    Symbol Meaning
    B0055QO Plug Weld
    B005608 Plug Weld

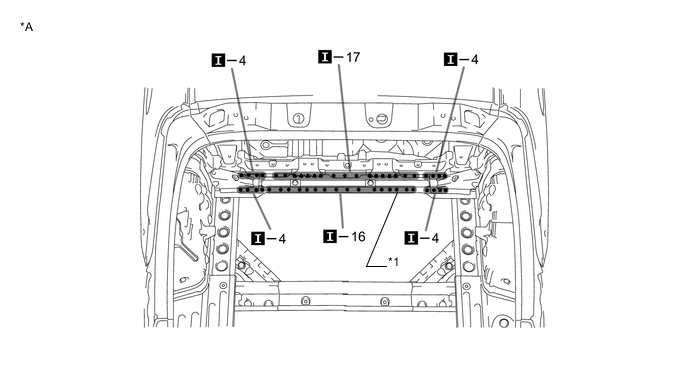

    B0055ZUC04
    *A w/o Rear No. 2 Seat - -
    *1 REAR FLOOR CROSS MEMBER FR - -

    1. Weld the A to the vehicle side.

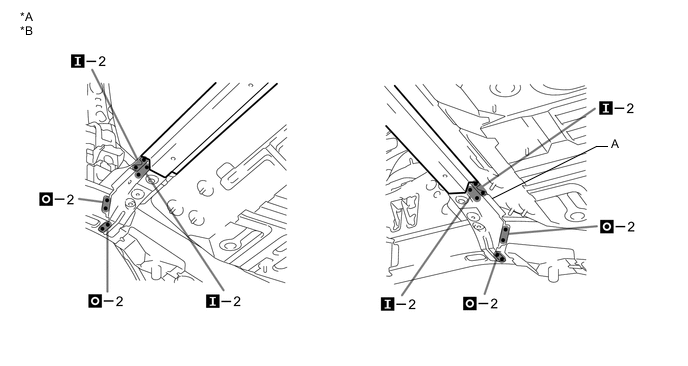

      B0055RKC03
      *A w/o Rear No. 2 Seat *B LH Side

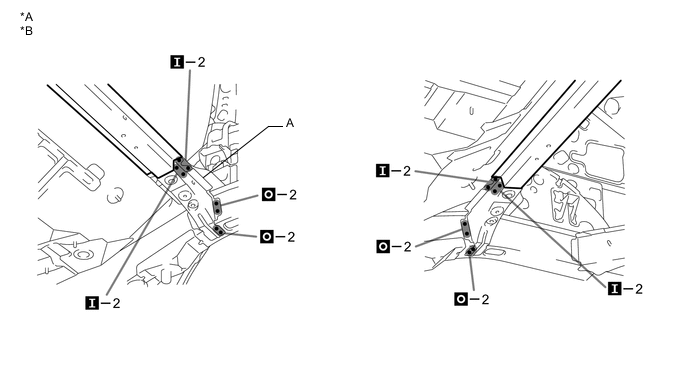

      B00560JC03
      *A w/o Rear No. 2 Seat *B RH Side

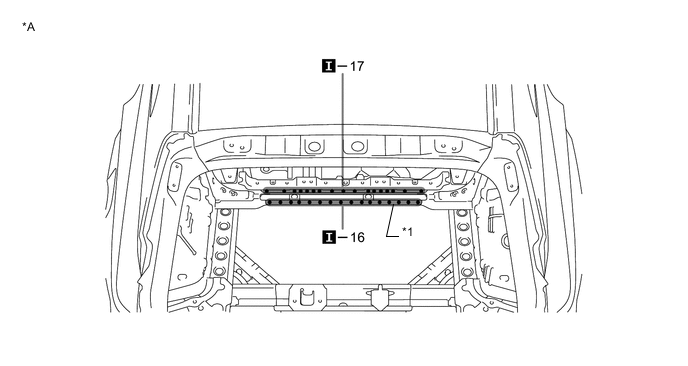

      B00560KC02
      *A w/ Rear No. 2 Seat - -
      *1 REAR FLOOR CROSS MEMBER FRONT - -

    2. Weld the A to the vehicle side.

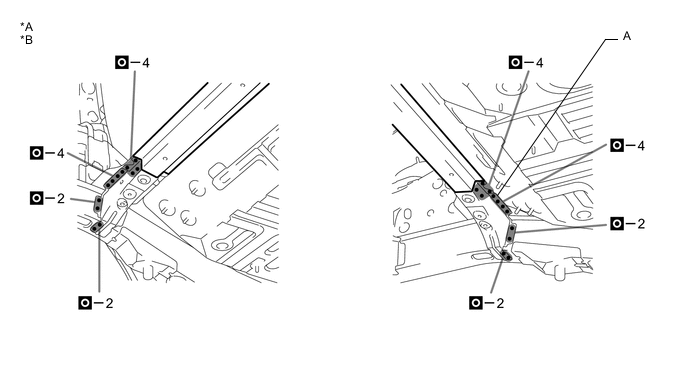

      B0055VOC02
      *A w/ Rear No. 2 Seat *B LH Side

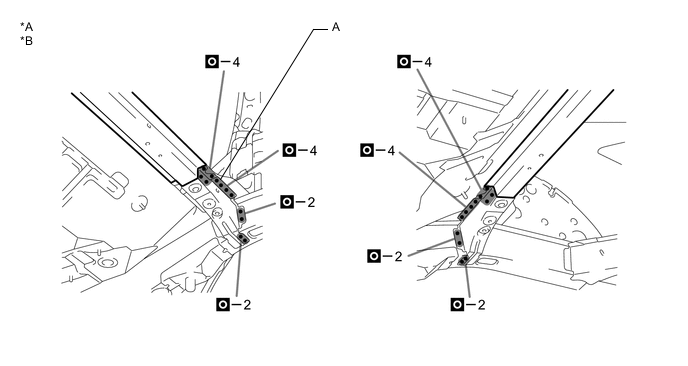

      B0055ZXC02
      *A w/ Rear No. 2 Seat *B RH Side

    3. After welding, apply undercoating to the corresponding parts. (See the painting /coating)

    4. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
