SILENCER SHEET INSTALLATION AREAS

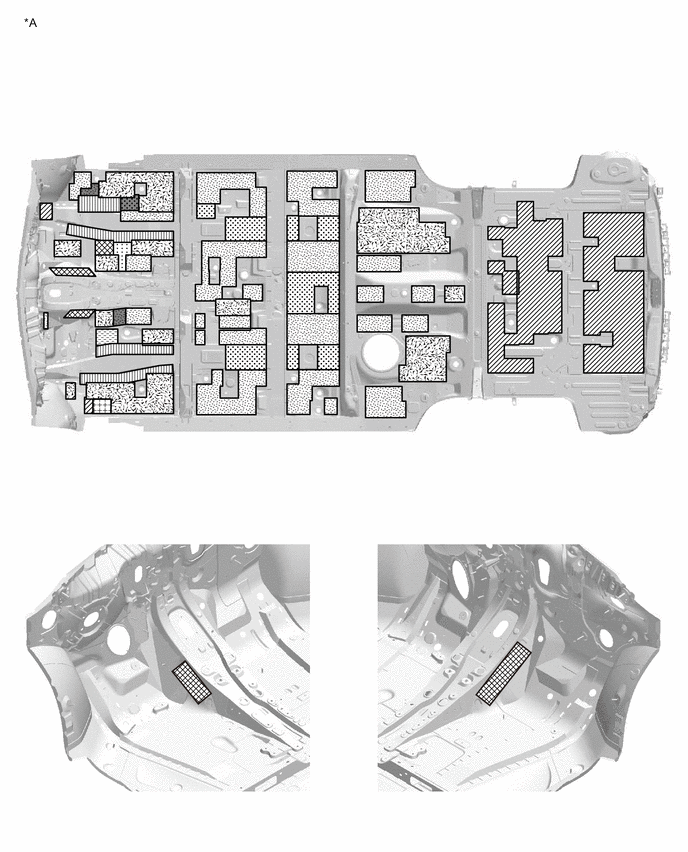

A01P8DMC01

*A

for LHD

-

-

Substitute silencer sheets for the laminate coat application areas.

Thickness of Silencer Sheet

	1.2 mm (0.047 in.)		1.4 mm (0.055 in.)
	1.8 mm (0.071 in.)		2.0 mm (0.079 in.)
	2.5 mm (0.098 in.)		2.7 mm (0.106 in.)
	2.9 mm (0.114 in.)		3.1 mm (0.122 in.)
	3.6 mm (0.142 in.)		4.2 mm (0.165 in.)

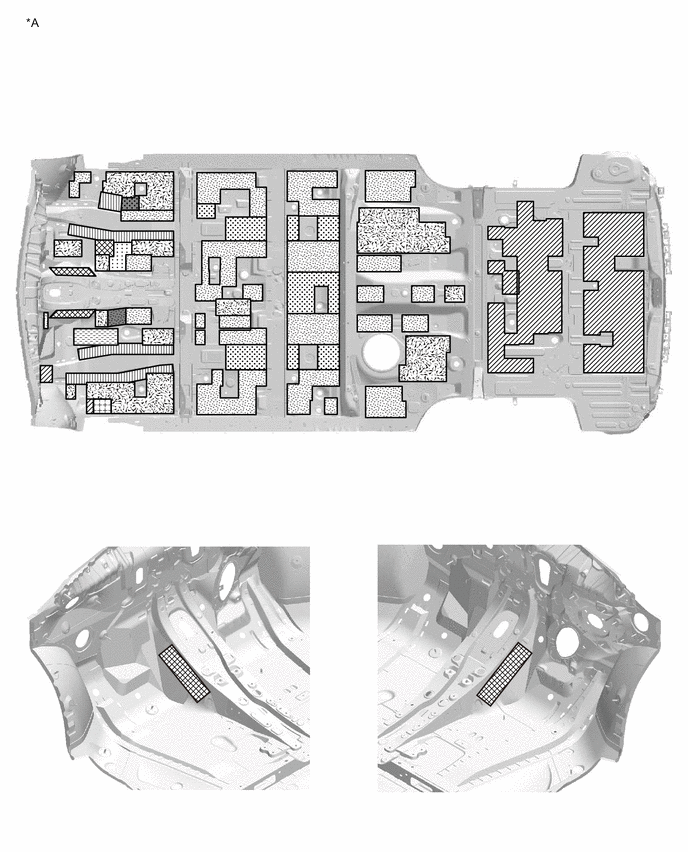

A01P8QOC01

*A

for RHD

-

-

Substitute silencer sheets for the laminate coat application areas.

Thickness of Silencer Sheet

	1.2 mm (0.047 in.)		1.4 mm (0.055 in.)
	1.8 mm (0.071 in.)		2.0 mm (0.079 in.)
	2.5 mm (0.098 in.)		2.7 mm (0.106 in.)
	2.9 mm (0.114 in.)		3.1 mm (0.122 in.)
	3.6 mm (0.142 in.)		4.2 mm (0.165 in.)
